Tri-Clamp Fittings

ART. 040

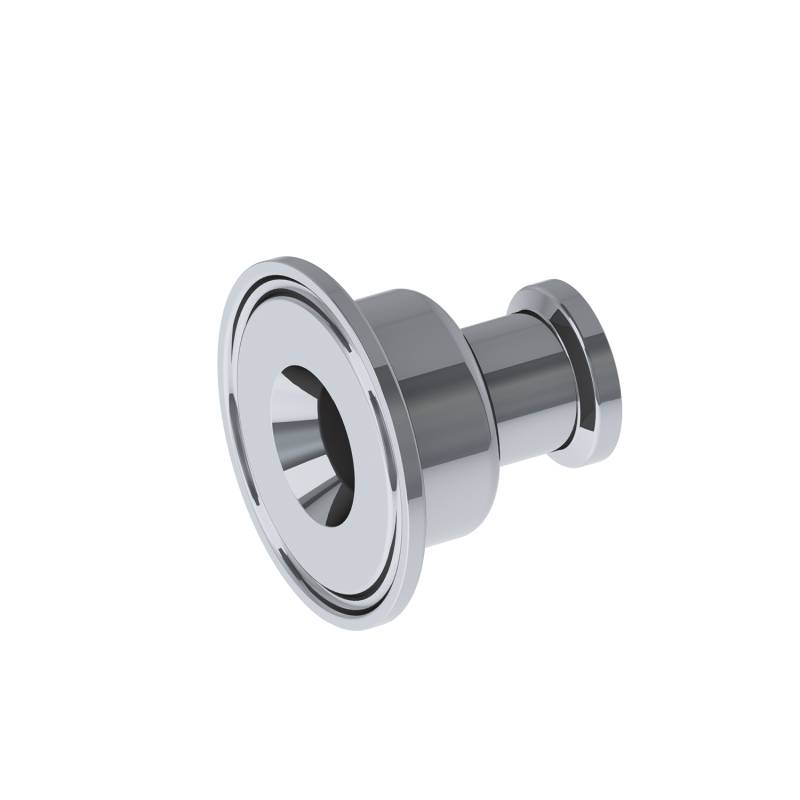

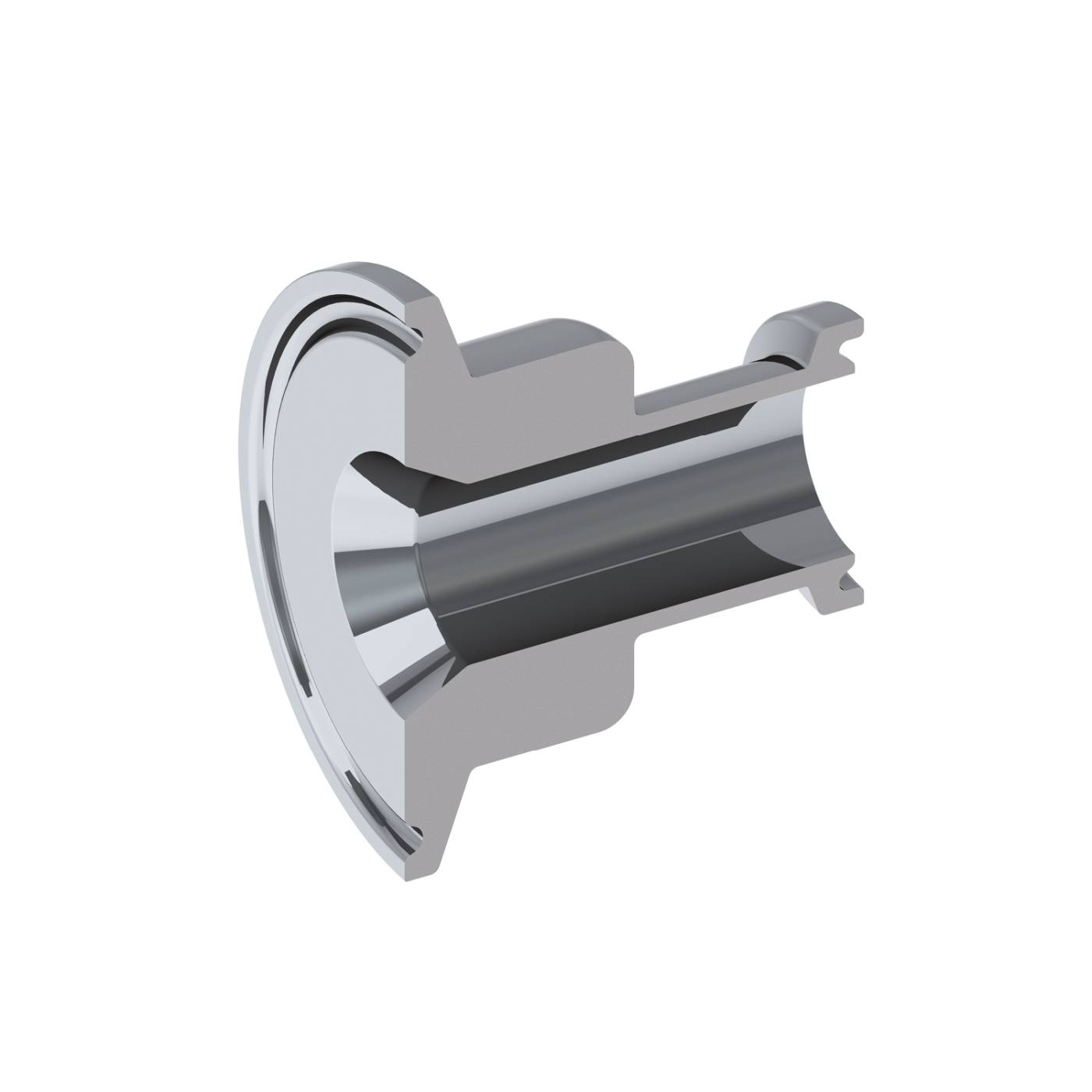

Tri-Clamp Reducer

Technical sheet
040_rattiinox
Technical sheet

ART. 040 ASTM A270

ML
Int. finishing: Ra ≤ 0,4 µm Machined Finish
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished

Ø A1Ø A2Ø D1Ø D2LMaterialCode
3/4" (25,00)ASTM A270 1/2" (25,00)15,759,4040,001.4404040600750050ML
1" (50,50)ASTM A270 1/2" (25,00)22,109,4040,001.4404040601000050ML
ASTM A270 3/4" (25,00)22,1015,7540,001.4404040601000075ML
DIN DN10 (34,00)22,1010,0040,001.440404060100D010ML
DIN DN15 (34,00)22,1016,0040,001.440404060100D015ML
DIN DN20 (34,00)22,1020,0040,001.440404060100D020ML
ISO DN8 (34,00)22,1010,3040,001.440404060100I008ML
ISO DN10 (34,00)22,1014,0040,001.440404060100I010ML
ISO DN15 (34,00)22,1018,1040,001.440404060100I015ML
1.1/2” (50,50)ASTM A270 1/2" (25,00)34,809,4040,001.4404040601500050ML
ASTM A270 3/4" (25,00)34,8015,7540,001.4404040601500075ML
ASTM A270 1" (50,50)34,8022,1040,001.4404040601500100ML
DIN DN10 (34,00)34,8010,0040,001.440404060150D010ML
DIN DN15 (34,00)34,8016,0040,001.440404060150D015ML
DIN DN20 (34,00)34,8020,0040,001.440404060150D020ML
DIN DN25 (50,50)34,8026,0040,001.440404060150D025ML
DIN DN32 (50,50)34,8032,0040,001.440404060150D032ML
ISO DN8 (34,00)34,8010,3040,001.440404060150I008ML
ISO DN10 (34,00)34,8014,0040,001.440404060150I010ML
ISO DN15 (34,00)34,8018,1040,001.440404060150I015ML
ISO DN20 (50,50)34,8023,7040,001.440404060150I020ML
ISO DN25 (50,50)34,8029,7040,001.440404060150I025ML
2” (64,00)ASTM A270 1/2" (25,00)47,509,4040,001.4404040602000050ML
ASTM A270 3/4" (25,00)47,5015,7540,001.4404040602000075ML
ASTM A270 1" (50,50)47,5022,1040,001.4404040602000100ML
ASTM A270 1.1/2" (50,50)47,5034,8040,001.4404040602000150ML
DIN DN10 (34,00)47,5010,0040,001.440404060200D010ML
DIN DN15 (34,00)47,5016,0040,001.440404060200D015ML
DIN DN20 (34,00)47,5020,0040,001.440404060200D020ML
DIN DN25 (50,50)47,5026,0040,001.440404060200D025ML
DIN DN32 (50,50)47,5032,0040,001.440404060200D032ML
DIN DN40 (50,50)47,5038,0040,001.440404060200D040ML
ISO DN8 (34,00)47,5010,3040,001.440404060200I008ML
ISO DN10 (34,00)47,5014,0040,001.440404060200I010ML
ISO DN15 (34,00)47,5018,1040,001.440404060200I015ML
ISO DN20 (50,50)47,5023,7040,001.440404060200I020ML
ISO DN25 (50,50)47,5029,7040,001.440404060200I025ML
ISO DN32 (50,50)47,5038,4040,001.440404060200I032ML
ISO DN40 (50,50)47,5044,3040,001.440404060200I040ML

ART. 040 DIN 32676

ML
Int. finishing: Ra ≤ 0,4 µm Machined Finish
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished

Ø A1Ø A2Ø D1Ø D2LMaterialCode
DN15 (34,00)DIN DN10 (34,00)16,0010,0040,001.44040406D015D010ML
ASTM A270 1/2" (25,00)16,009,4040,001.44040406D0150050ML
ASTM A270 3/4" (25,00)16,0015,7540,001.44040406D0150075ML
ISO DN8 (34,00)16,0010,3040,001.44040406D015I008ML
ISO DN10 (34,00)16,0014,0040,001.44040406D015I010ML
DN20 (34,00)DIN DN10 (34,00)20,0010,0040,001.44040406D020D010ML
DIN DN15 (34,00)20,0016,0040,001.44040406D020D015ML
ASTM A270 1/2" (25,00)20,009,4040,001.44040406D0200050ML
ASTM A270 3/4" (25,00)20,0015,7540,001.44040406D0200075ML
ISO DN8 (34,00)20,0010,3040,001.44040406D020I008ML
ISO DN10 (34,00)20,0014,0040,001.44040406D020I010ML
ISO DN15 (34,00)20,0018,1040,001.44040406D020I015ML
DN25 (50,50)DIN DN10 (34,00)26,0010,0040,001.44040406D025D010ML
DIN DN15 (34,00)26,0016,0040,001.44040406D025D015ML
DIN DN20 (34,00)26,0020,0040,001.44040406D025D020ML
ASTM A270 1/2" (25,00)26,009,4040,001.44040406D0250050ML
ASTM A270 3/4" (25,00)26,0015,7540,001.44040406D0250075ML
ASTM A270 1" (50,50)26,0022,1040,001.44040406D0250100ML
ISO DN8 (34,00)26,0010,3040,001.44040406D025I008ML
ISO DN10 (34,00)26,0014,0040,001.44040406D025I010ML
ISO DN15 (34,00)26,0018,1040,001.44040406D025I015ML
ISO DN20 (50,50)26,0023,7040,001.44040406D025I020ML
DN32 (50,50)DIN DN10 (34,00)32,0010,0040,001.44040406D032D010ML
DIN DN15 (34,00)32,0016,0040,001.44040406D032D015ML
DIN DN20 (34,00)32,0020,0040,001.44040406D032D020ML
DIN DN25 (50,50)32,0026,0040,001.44040406D032D025ML
ASTM A270 1/2" (25,00)32,009,4040,001.44040406D0320050ML
ASTM A270 3/4" (25,00)32,0015,7540,001.44040406D0320075ML
ASTM A270 1" (50,50)32,0022,1040,001.44040406D0320100ML
ISO DN8 (34,00)32,0010,3040,001.44040406D032I008ML
ISO DN10 (34,00)32,0014,0040,001.44040406D032I010ML
ISO DN15 (34,00)32,0018,1040,001.44040406D032I015ML
ISO DN20 (50,50)32,0023,7040,001.44040406D032I020ML
ISO DN25 (50,50)32,0029,7040,001.44040406D032I025ML
DN40 (50,50)DIN DN10 (34,00)38,0010,0040,001.44040406D040D010ML
DIN DN15 (34,00)38,0016,0040,001.44040406D040D015ML
DIN DN20 (34,00)38,0020,0040,001.44040406D040D020ML
DIN DN25 (50,50)38,0026,0040,001.44040406D040D025ML
DIN DN32 (50,50)38,0032,0040,001.44040406D040D032ML
ASTM A270 1/2" (25,00)38,009,4040,001.44040406D0400050ML
ASTM A270 3/4" (25,00)38,0015,7540,001.44040406D0400075ML
ASTM A270 1" (50,50)38,0022,1040,001.44040406D0400100ML
ASTM A270 1.1/2" (50,50)38,0034,8040,001.44040406D0400150ML
ISO DN8 (34,00)38,0010,3040,001.44040406D040I008ML
ISO DN10 (34,00)38,0014,0040,001.44040406D040I010ML
ISO DN15 (34,00)38,0018,1040,001.44040406D040I015ML
ISO DN20 (50,50)38,0023,7040,001.44040406D040I020ML
ISO DN25 (50,50)38,0029,7040,001.44040406D040I025ML
DN50 (64,00)DIN DN10 (34,00)50,0010,0040,001.44040406D050D010ML
DIN DN15 (34,00)50,0016,0040,001.44040406D050D015ML
DIN DN20 (34,00)50,0020,0040,001.44040406D050D020ML
DIN DN25 (50,50)50,0026,0040,001.44040406D050D025ML
DIN DN32 (50,50)50,0032,0040,001.44040406D050D032ML
DIN DN40 (50,50)50,0038,0040,001.44040406D050D040ML
ASTM A270 1/2" (25,00)50,009,4040,001.44040406D0500050ML
ASTM A270 3/4" (25,00)50,0015,7540,001.44040406D0500075ML
ASTM A270 1" (50,50)50,0022,1040,001.44040406D0500100ML
ASTM A270 1.1/2" (50,50)50,0034,8040,001.44040406D0500150ML
ASTM A270 2" (64,00)50,0047,5040,001.44040406D0500200ML
ISO DN8 (34,00)50,0010,3040,001.44040406D050I008ML
ISO DN10 (34,00)50,0014,0040,001.44040406D050I010ML
ISO DN15 (34,00)50,0018,1040,001.44040406D050I015ML
ISO DN20 (50,50)50,0023,7040,001.44040406D050I020ML
ISO DN25 (50,50)50,0029,7040,001.44040406D050I025ML
ISO DN32 (50,50)50,0038,4040,001.44040406D050I032ML
ISO DN40 (50,50)50,0044,3040,001.44040406D050I040ML

ART. 040 ISO 1127

Ø A1Ø A2Ø D1Ø D2LMaterialCode
DN10 (34,00)ISO DN8 (34,00)14,0010,3040,001.44040406I010I008ML
ASTM A270 1/2" (25,00)14,009,4040,001.44040406I0100050ML
ASTM A270 3/4" (25,00)14,0015,7540,001.44040406I0100075ML
DIN DN10 (34,00)14,0010,0040,001.44040406I010D010ML
DN15 (34,00)ISO DN8 (34,00)18,1010,3040,001.44040406I015I008ML
ISO DN10 (34,00)18,1014,0040,001.44040406I015I010ML
ASTM A270 1/2" (25,00)18,109,4040,001.44040406I0150050ML
ASTM A270 3/4" (25,00)18,1015,7540,001.44040406I0150075ML
DIN DN10 (34,00)18,1010,0040,001.44040406I015D010ML
DIN DN15 (34,00)18,1016,0040,001.44040406I015D015ML
DN20 (50,50)ISO DN8 (34,00)23,7010,3040,001.44040406I020I008ML
ISO DN10 (34,00)23,7014,0040,001.44040406I020I010ML
ISO DN15 (34,00)23,7018,1040,001.44040406I020I015ML
ASTM A270 1/2" (25,00)23,709,4040,001.44040406I0200050ML
ASTM A270 3/4" (25,00)23,7015,7540,001.44040406I0200075ML
ASTM A270 1" (50,50)23,7022,1040,001.44040406I0200100ML
DIN DN10 (34,00)23,7010,0040,001.44040406I020D010ML
DIN DN15 (34,00)23,7016,0040,001.44040406I020D015ML
DIN DN20 (34,00)23,7020,0040,001.44040406I020D020ML
DN25 (50,50)ISO DN8 (34,00)29,7010,3040,001.44040406I025I008ML
ISO DN10 (34,00)29,7014,0040,001.44040406I025I010ML
ISO DN15 (34,00)29,7018,1040,001.44040406I025I015ML
ISO DN20 (50,50)29,7023,7040,001.44040406I025I020ML
ASTM A270 1/2" (25,00)29,709,4040,001.44040406I0250050ML
ASTM A270 3/4" (25,00)29,7015,7540,001.44040406I0250075ML
ASTM A270 1" (50,50)29,7022,1040,001.44040406I0250100ML
DIN DN10 (34,00)29,7010,0040,001.44040406I025D010ML
DIN DN15 (34,00)29,7016,0040,001.44040406I025D015ML
DIN DN20 (34,00)29,7020,0040,001.44040406I025D020ML
DIN DN25 (50,50)29,7026,0040,001.44040406I025D025ML
DN32 (50,50)ISO DN8 (34,00)38,4010,3040,001.44040406I032I008ML
ISO DN10 (34,00)38,4014,0040,001.44040406I032I010ML
ISO DN15 (34,00)38,4018,1040,001.44040406I032I015ML
ISO DN20 (50,50)38,4023,7040,001.44040406I032I020ML
ISO DN25 (50,50)38,4029,7040,001.44040406I032I025ML
ASTM A270 1/2" (25,00)38,409,4040,001.44040406I0320050ML
ASTM A270 3/4" (25,00)38,4015,7540,001.44040406I0320075ML
ASTM A270 1" (50,50)38,4022,1040,001.44040406I0320100ML
ASTM A270 1.1/2" (50,50)38,4034,8040,001.44040406I0320150ML
DIN DN10 (34,00)38,4010,0040,001.44040406I032D010ML
DIN DN15 (34,00)38,4016,0040,001.44040406I032D015ML
DIN DN20 (34,00)38,4020,0040,001.44040406I032D020ML
DIN DN25 (50,50)38,4026,0040,001.44040406I032D025ML
DIN DN32 (50,50)38,4032,0040,001.44040406I032D032ML
DN40 (64,00)ISO DN8 (34,00)44,3010,3040,001.44040406I040I008ML
ISO DN10 (34,00)44,3014,0040,001.44040406I040I010ML
ISO DN15 (34,00)44,3018,1040,001.44040406I040I015ML
ISO DN20 (50,50)44,3023,7040,001.44040406I040I020ML
ISO DN25 (50,50)44,3029,7040,001.44040406I040I025ML
ISO DN32 (50,50)44,3038,4040,001.44040406I040I032ML
ASTM A270 1/2" (25,00)44,309,4040,001.44040406I0400050ML
ASTM A270 3/4" (25,00)44,3015,7540,001.44040406I0400075ML
ASTM A270 1" (50,50)44,3022,1040,001.44040406I0400100ML
ASTM A270 1.1/2" (50,50)44,3034,8040,001.44040406I0400150ML
DIN DN10 (34,00)44,3010,0040,001.44040406I040D010ML
DIN DN15 (34,00)44,3016,0040,001.44040406I040D015ML
DIN DN20 (34,00)44,3020,0040,001.44040406I040D020ML
DIN DN25 (50,50)44,3026,0040,001.44040406I040D025ML
DIN DN32 (50,50)44,3032,0040,001.44040406I040D032ML
DIN DN40 (50,50)44,3038,0040,001.44040406I040D040ML
