ML
Int. finishing: Ra ≤ 0,4 µm Machined Finish
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished

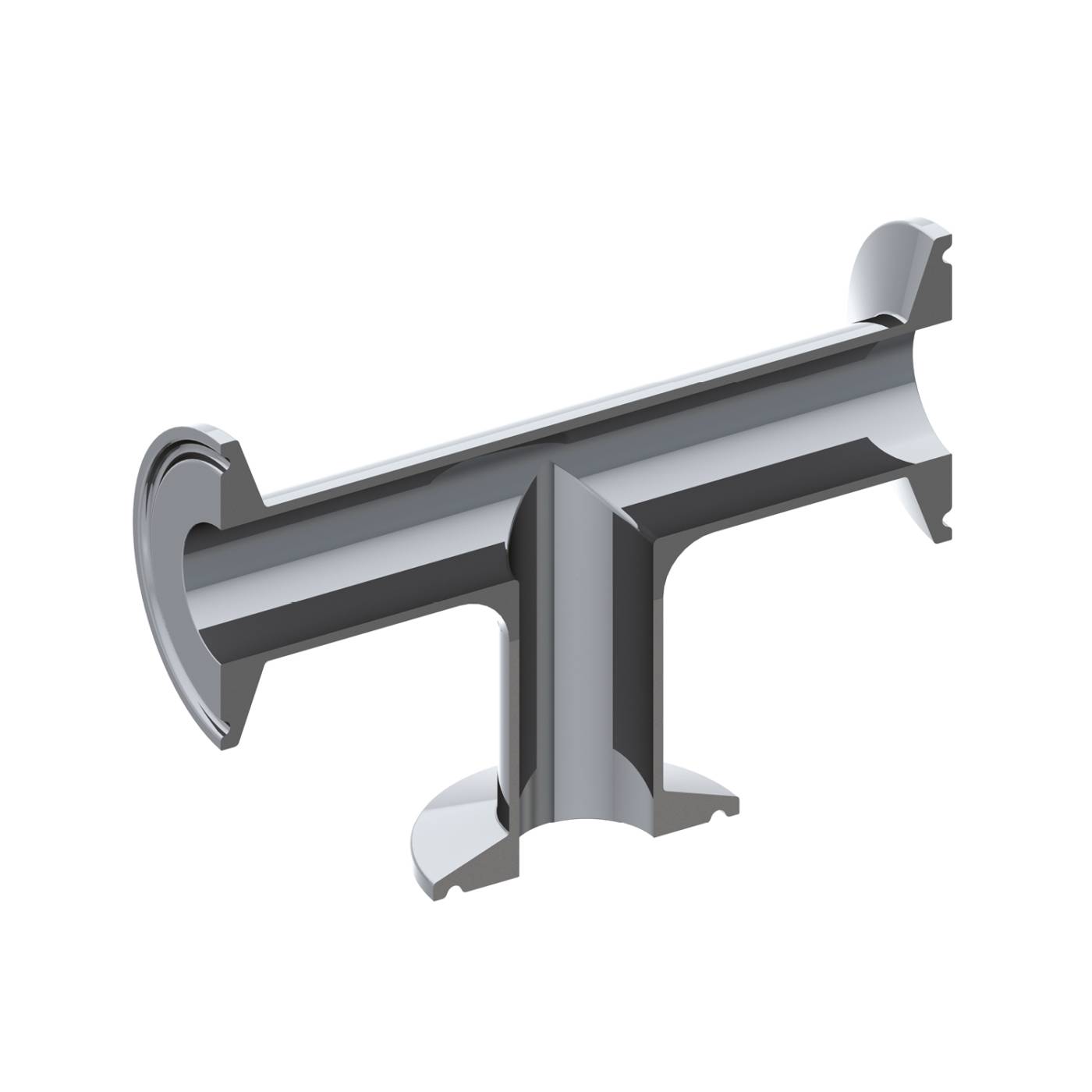

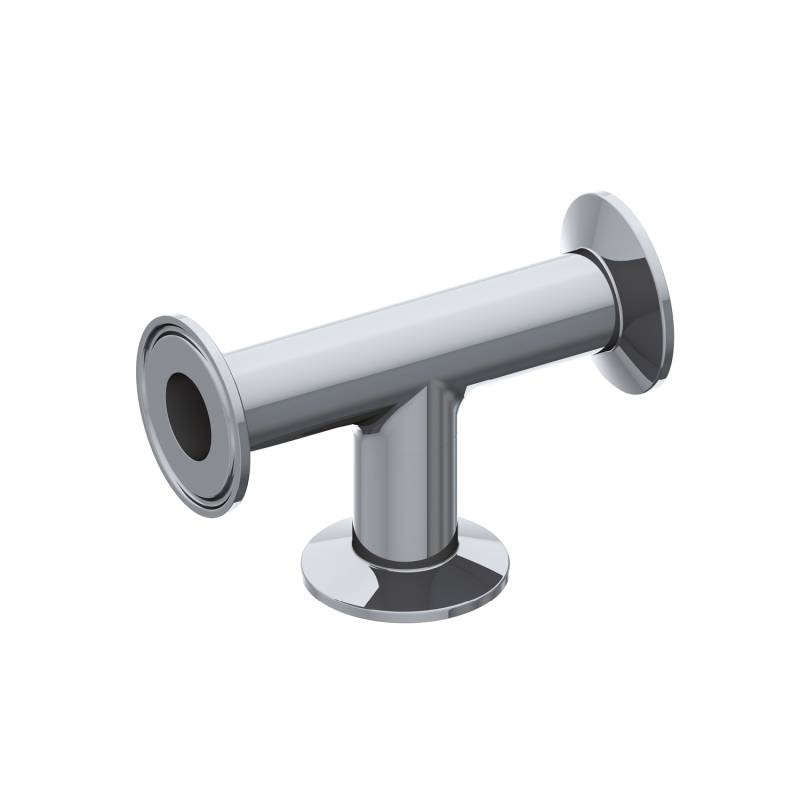

ART. 030 ASTM A270 Flange design according to ASME-BPE
| Size | Ø A | Ø De | Ø Di | L | Material | Finishing | Code |
|---|---|---|---|---|---|---|---|
| 1/2” | 25,00 | 12,70 | 9,40 | 39,00 | 1.4404 | ML | 030C60050ML |
| 1/2” | 25,00 | 12,70 | 9,40 | 66,60 | 1.4404 | ML | 030Z60050ML |
| 3/4” | 25,00 | 19,05 | 15,75 | 48,00 | 1.4404 | ML | 030C60075ML |
| 3/4” | 25,00 | 19,05 | 15,75 | 66,60 | 1.4404 | ML | 030Z60075ML |
| 1” | 50,50 | 25,40 | 22,10 | 60,30 | 1.4404 | ML | 030Z60100ML |
| 1.1/2” | 50,50 | 38,10 | 34,80 | 69,90 | 1.4404 | ML | 030Z60150ML |
| 2” | 64,00 | 50,80 | 47,50 | 88,90 | 1.4404 | ML | 030Z60200ML |
| 2.1/2” | 77,40 | 63,50 | 60,20 | 88,90 | 1.4404 | ML | 030Z60250ML |
| 3” | 90,90 | 72,60 | 72,90 | 95,30 | 1.4404 | ML | 030Z60300ML |
| 4” | 118,90 | 101,60 | 97,39 | 114,30 | 1.4404 | ML | 030Z60400ML |
