ML
Int. finishing: Ra ≤ 0,4 µm Machined Finish
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished

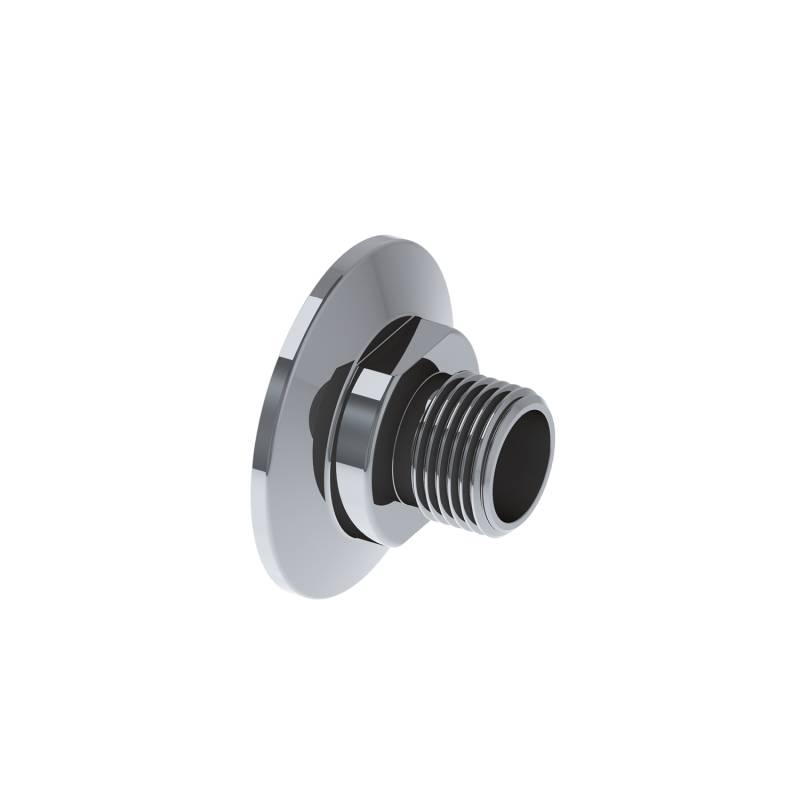

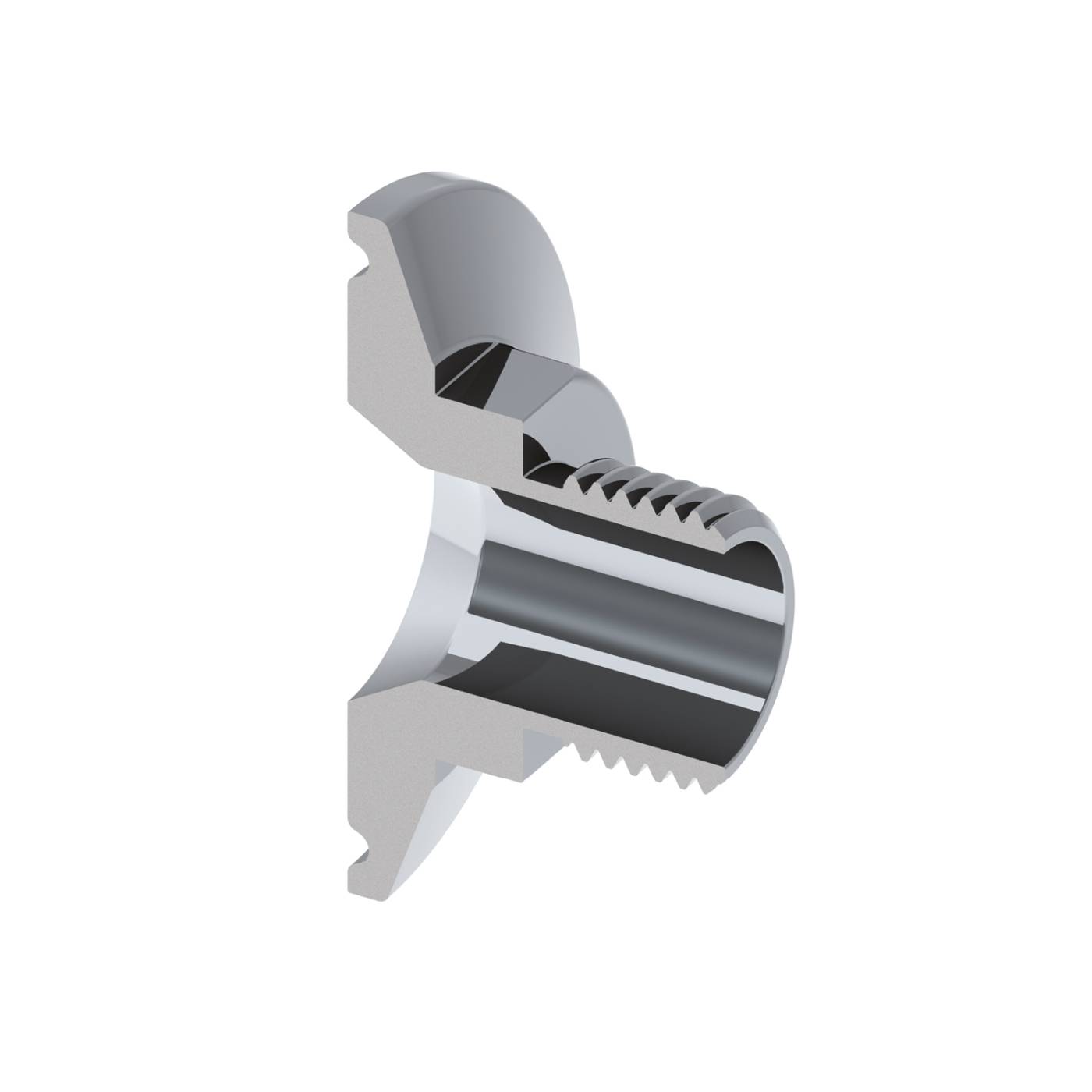

ART. 026/A BSPP Male threaded
ASTM A270 Flange design According to ASME-BPE
| Size | T | Ø A | Ø Di | CH | L | Material | Code |
|---|---|---|---|---|---|---|---|
| 1/2” | 1/8” | 25,00 | 9,40 | 22,00 | 28,00 | 1.4404 | 026A600500012ML |
| 1/4” | 25,00 | 9,40 | 22,00 | 28,00 | 1.4404 | 026A600500025ML | |
| 3/8” | 25,00 | 9,40 | 22,00 | 30,00 | 1.4404 | 026A600500037ML | |
| 1/2” | 25,00 | 9,40 | 22,00 | 35,00 | 1.4404 | 026A600500050ML | |
| 3/4” | 25,00 | 9,40 | 32,00 | 40,00 | 1.4404 | 026A600500075ML | |
| 1” | 25,00 | 9,40 | 36,00 | 40,00 | 1.4404 | 026A600500100ML | |
| 3/4” | 1/8” | 25,00 | 15,75 | 22,00 | 28,00 | 1.4404 | 026A600750012ML |
| 1/4” | 25,00 | 15,75 | 22,00 | 28,00 | 1.4404 | 026A600750025ML | |
| 3/8” | 25,00 | 15,75 | 22,00 | 30,00 | 1.4404 | 026A600750037ML | |
| 1/2” | 25,00 | 15,75 | 22,00 | 35,00 | 1.4404 | 026A600750050ML | |
| 3/4” | 25,00 | 15,75 | 32,00 | 40,00 | 1.4404 | 026A600750075ML | |
| 1” | 25,00 | 15,75 | 36,00 | 40,00 | 1.4404 | 026A600750100ML | |
| 1” | 1/8” | 50,50 | 22,10 | 22,00 | 28,00 | 1.4404 | 026A601000012ML |
| 1/4” | 50,50 | 22,10 | 22,00 | 28,00 | 1.4404 | 026A601000025ML | |
| 3/8” | 50,50 | 22,10 | 24,00 | 28,00 | 1.4404 | 026A601000037ML | |
| 1/2” | 50,50 | 22,10 | 27,00 | 28,00 | 1.4404 | 026A601000050ML | |
| 3/4” | 50,50 | 22,10 | 32,00 | 28,00 | 1.4404 | 026A601000075ML | |
| 1” | 50,50 | 22,10 | 36,00 | 28,00 | 1.4404 | 026A601000100ML | |
| 1.1/2” | 1/8” | 50,50 | 34,80 | 22,00 | 28,00 | 1.4404 | 026A601500012ML |
| 1/4” | 50,50 | 34,80 | 22,00 | 28,00 | 1.4404 | 026A601500025ML | |
| 3/8” | 50,50 | 34,80 | 24,00 | 28,00 | 1.4404 | 026A601500037ML | |
| 1/2” | 50,50 | 34,80 | 27,00 | 28,00 | 1.4404 | 026A601500050ML | |
| 3/4” | 50,50 | 34,80 | 32,00 | 28,00 | 1.4404 | 026A601500075ML | |
| 1” | 50,50 | 34,80 | 36,00 | 28,00 | 1.4404 | 026A601500100ML | |
| 1.1/4” | 50,50 | 34,80 | 46,00 | 45,00 | 1.4404 | 026A601500125ML | |
| 1.1/2” | 50,50 | 34,80 | 46,00 | 45,00 | 1.4404 | 026A601500150ML | |
| 2” | 1/8” | 64,00 | 47,50 | 22,00 | 32,00 | 1.4404 | 026A602000012ML |
| 1/4” | 64,00 | 47,50 | 22,00 | 32,00 | 1.4404 | 026A602000025ML | |
| 3/8” | 64,00 | 47,50 | 24,00 | 32,00 | 1.4404 | 026A602000037ML | |
| 1/2” | 64,00 | 47,50 | 27,00 | 32,00 | 1.4404 | 026A602000050ML | |
| 3/4” | 64,00 | 47,50 | 32,00 | 32,00 | 1.4404 | 026A602000075ML | |
| 1” | 64,00 | 47,50 | 41,00 | 32,00 | 1.4404 | 026A602000100ML | |
| 1.1/4” | 64,00 | 47,50 | 50,00 | 40,00 | 1.4404 | 026A602000125ML | |
| 1.1/2” | 64,00 | 47,50 | 54,00 | 40,00 | 1.4404 | 026A602000150ML | |
| 2” | 64,00 | 47,50 | 65,00 | 40,00 | 1.4404 | 026A602000200ML | |
| 2.1/2” | 1.1/4” | 77,40 | 60,20 | 50,00 | 37,00 | 1.4404 | 026A602500125ML |
| 1.1/2” | 77,40 | 60,20 | 54,00 | 37,00 | 1.4404 | 026A602500150ML | |
| 2” | 77,40 | 60,20 | 65,00 | 47,00 | 1.4404 | 026A602500200ML | |
| 2.1/2” | 77,40 | 60,20 | 84,00 | 62,00 | 1.4404 | 026A602500250ML | |
| 3” | 2” | 90,90 | 72,90 | 65,00 | 47,00 | 1.4404 | 026A603000200ML |
| 2.1/2” | 90,90 | 72,90 | 84,00 | 62,00 | 1.4404 | 026A603000250ML | |
| 3” | 90,90 | 72,90 | 95,00 | 75,00 | 1.4404 | 026A603000300ML | |
| 4” | 2.1/2” | 118,90 | 97,40 | 84,00 | 55,00 | 1.4404 | 026A604000250ML |
| 3” | 118,90 | 97,40 | 95,00 | 70,00 | 1.4404 | 026A604000300ML | |
| 4” | 118,90 | 97,40 | 114,00 | 70,00 | 1.4404 | 026A604000400ML |
DIN 32676
| Size | T | Ø A | Ø Di | CH | L | Material | Code |
|---|---|---|---|---|---|---|---|
| DN 10 | 1/8” | 34,00 | 10,00 | 19,00 | 28,00 | 1.4404 | 026A6D0100012ML |
| 1/4” | 34,00 | 10,00 | 19,00 | 28,00 | 1.4404 | 026A6D0100025ML | |
| 3/8” | 34,00 | 10,00 | 30,00 | 40,00 | 1.4404 | 026A6D0100037ML | |
| 1/2” | 34,00 | 10,00 | 30,00 | 40,00 | 1.4404 | 026A6D0100050ML | |
| 3/4” | 34,00 | 10,00 | 30,00 | 40,00 | 1.4404 | 026A6D0100075ML | |
| 1” | 34,00 | 10,00 | 36,00 | 40,00 | 1.4404 | 026A6D0100100ML | |
| DN 15 | 1/8” | 34,00 | 16,00 | 19,00 | 28,00 | 1.4404 | 026A6D0150012ML |
| 1/4” | 34,00 | 16,00 | 19,00 | 28,00 | 1.4404 | 026A6D0150025ML | |
| 3/8” | 34,00 | 16,00 | 30,00 | 40,00 | 1.4404 | 026A6D0150037ML | |
| 1/2” | 34,00 | 16,00 | 30,00 | 40,00 | 1.4404 | 026A6D0150050ML | |
| 3/4” | 34,00 | 16,00 | 30,00 | 40,00 | 1.4404 | 026A6D0150075ML | |
| 1” | 34,00 | 16,00 | 36,00 | 40,00 | 1.4404 | 026A6D0150100ML | |
| DN 20 | 1/8” | 34,00 | 20,00 | 19,00 | 28,00 | 1.4404 | 026A6D0200012ML |
| 1/4” | 34,00 | 20,00 | 19,00 | 28,00 | 1.4404 | 026A6D0200025ML | |
| 3/8” | 34,00 | 20,00 | 30,00 | 40,00 | 1.4404 | 026A6D0200037ML | |
| 1/2” | 34,00 | 20,00 | 30,00 | 40,00 | 1.4404 | 026A6D0200050ML | |
| 3/4” | 34,00 | 20,00 | 30,00 | 40,00 | 1.4404 | 026A6D0200075ML | |
| 1” | 34,00 | 20,00 | 36,00 | 40,00 | 1.4404 | 026A6D0200100ML | |
| DN 25 | 1/8” | 50,50 | 26,00 | 22,00 | 28,00 | 1.4404 | 026A6D0250012ML |
| 1/4” | 50,50 | 26,00 | 22,00 | 28,00 | 1.4404 | 026A6D0250025ML | |
| 3/8” | 50,50 | 26,00 | 24,00 | 28,00 | 1.4404 | 026A6D0250037ML | |
| 1/2” | 50,50 | 26,00 | 27,00 | 28,00 | 1.4404 | 026A6D0250050ML | |
| 3/4” | 50,50 | 26,00 | 32,00 | 28,00 | 1.4404 | 026A6D0250075ML | |
| 1” | 50,50 | 26,00 | 36,00 | 28,00 | 1.4404 | 026A6D0250100ML | |
| DN 32 | 1/8” | 50,50 | 32,00 | 22,00 | 28,00 | 1.4404 | 026A6D0320012ML |
| 1/4” | 50,50 | 32,00 | 22,00 | 28,00 | 1.4404 | 026A6D0320025ML | |
| 3/8” | 50,50 | 32,00 | 24,00 | 28,00 | 1.4404 | 026A6D0320037ML | |
| 1/2” | 50,50 | 32,00 | 27,00 | 28,00 | 1.4404 | 026A6D0320050ML | |
| 3/4” | 50,50 | 32,00 | 32,00 | 28,00 | 1.4404 | 026A6D0320075ML | |
| 1” | 50,50 | 32,00 | 36,00 | 28,00 | 1.4404 | 026A6D0320100ML | |
| 1.1/4” | 50,50 | 32,00 | 46,00 | 45,00 | 1.4404 | 026A6D0320125ML | |
| 1.1/2” | 50,50 | 32,00 | 46,00 | 45,00 | 1.4404 | 026A6D0320150ML | |
| DN 40 | 1/8” | 50,50 | 38,00 | 22,00 | 28,00 | 1.4404 | 026A6D0400012ML |
| 1/4” | 50,50 | 38,00 | 22,00 | 28,00 | 1.4404 | 026A6D0400025ML | |
| 3/8” | 50,50 | 38,00 | 24,00 | 28,00 | 1.4404 | 026A6D0400037ML | |
| 1/2” | 50,50 | 38,00 | 27,00 | 28,00 | 1.4404 | 026A6D0400050ML | |
| 3/4” | 50,50 | 38,00 | 32,00 | 28,00 | 1.4404 | 026A6D0400075ML | |
| 1” | 50,50 | 38,00 | 36,00 | 28,00 | 1.4404 | 026A6D0400100ML | |
| 1.1/4” | 50,50 | 38,00 | 46,00 | 45,00 | 1.4404 | 026A6D0400125ML | |
| 1.1/2” | 50,50 | 38,00 | 46,00 | 45,00 | 1.4404 | 026A6D0400150ML | |
| DN 50 | 1/8” | 64,00 | 50,00 | 22,00 | 32,00 | 1.4404 | 026A6D0500012ML |
| 1/4” | 64,00 | 50,00 | 22,00 | 32,00 | 1.4404 | 026A6D0500025ML | |
| 3/8” | 64,00 | 50,00 | 24,00 | 32,00 | 1.4404 | 026A6D0500037ML | |
| 1/2” | 64,00 | 50,00 | 27,00 | 32,00 | 1.4404 | 026A6D0500050ML | |
| 3/4” | 64,00 | 50,00 | 32,00 | 32,00 | 1.4404 | 026A6D0500075ML | |
| 1” | 64,00 | 50,00 | 41,00 | 32,00 | 1.4404 | 026A6D0500100ML | |
| 1.1/4” | 64,00 | 50,00 | 50,00 | 40,00 | 1.4404 | 026A6D0500125ML | |
| 1.1/2” | 64,00 | 50,00 | 54,00 | 40,00 | 1.4404 | 026A6D0500150ML | |
| 2” | 64,00 | 50,00 | 65,00 | 40,00 | 1.4404 | 026A6D0500200ML |
ISO 1127
| Size | T | Ø A | Ø Di | CH | L | Material | Code |
|---|---|---|---|---|---|---|---|
| DN 8 | 1/8” | 34,00 | 10,30 | 19,00 | 28,00 | 1.4404 | 026A6I0080012ML |
| 1/4” | 34,00 | 10,30 | 19,00 | 28,00 | 1.4404 | 026A6I0080025ML | |
| 3/8” | 34,00 | 10,30 | 30,00 | 40,00 | 1.4404 | 026A6I0080037ML | |
| 1/2” | 34,00 | 10,30 | 30,00 | 40,00 | 1.4404 | 026A6I0080050ML | |
| 3/4” | 34,00 | 10,30 | 30,00 | 40,00 | 1.4404 | 026A6I0080075ML | |
| 1” | 34,00 | 10,30 | 36,00 | 40,00 | 1.4404 | 026A6I0080100ML | |
| DN 10 | 1/8” | 34,00 | 14,00 | 19,00 | 28,00 | 1.4404 | 026A6I0100012ML |
| 1/4” | 34,00 | 14,00 | 19,00 | 28,00 | 1.4404 | 026A6I0100025ML | |
| 3/8” | 34,00 | 14,00 | 30,00 | 40,00 | 1.4404 | 026A6I0100037ML | |
| 1/2” | 34,00 | 14,00 | 30,00 | 40,00 | 1.4404 | 026A6I0100050ML | |
| 3/4” | 34,00 | 14,00 | 30,00 | 40,00 | 1.4404 | 026A6I0100075ML | |
| 1” | 34,00 | 14,00 | 36,00 | 40,00 | 1.4404 | 026A6I0100100ML | |
| DN 15 | 1/8” | 34,00 | 18,10 | 19,00 | 28,00 | 1.4404 | 026A6I0150012ML |
| 1/4” | 34,00 | 18,10 | 19,00 | 28,00 | 1.4404 | 026A6I0150025ML | |
| 3/8” | 34,00 | 18,10 | 30,00 | 40,00 | 1.4404 | 026A6I0150037ML | |
| 1/2” | 34,00 | 18,10 | 30,00 | 40,00 | 1.4404 | 026A6I0150050ML | |
| 3/4” | 34,00 | 18,10 | 30,00 | 40,00 | 1.4404 | 026A6I0150075ML | |
| 1” | 34,00 | 18,10 | 36,00 | 40,00 | 1.4404 | 026A6I0150100ML | |
| DN 20 | 1/8” | 34,00 | 20,00 | 19,00 | 28,00 | 1.4404 | 026A6I0200012ML |
| 1/4” | 34,00 | 20,00 | 19,00 | 28,00 | 1.4404 | 026A6I0200025ML | |
| 3/8” | 34,00 | 20,00 | 30,00 | 40,00 | 1.4404 | 026A6I0200037ML | |
| 1/2” | 34,00 | 20,00 | 30,00 | 40,00 | 1.4404 | 026A6I0200050ML | |
| 3/4” | 34,00 | 20,00 | 30,00 | 40,00 | 1.4404 | 026A6I0200075ML | |
| 1” | 34,00 | 20,00 | 36,00 | 40,00 | 1.4404 | 026A6I0200100ML | |
| DN 25 | 1/8” | 50,50 | 29,70 | 22,00 | 28,00 | 1.4404 | 026A6I0250012ML |
| 1/4” | 50,50 | 29,70 | 22,00 | 28,00 | 1.4404 | 026A6I0250025ML | |
| 3/8” | 50,50 | 29,70 | 24,00 | 28,00 | 1.4404 | 026A6I0250037ML | |
| 1/2” | 50,50 | 29,70 | 27,00 | 28,00 | 1.4404 | 026A6I0250050ML | |
| 3/4” | 50,50 | 29,70 | 32,00 | 28,00 | 1.4404 | 026A6I0250075ML | |
| 1” | 50,50 | 29,70 | 36,00 | 28,00 | 1.4404 | 026A6I0250100ML | |
| 1.1/4” | 50,50 | 29,70 | 46,00 | 45,00 | 1.4404 | 026A6I0250125ML | |
| 1.1/2” | 50,50 | 29,70 | 46,00 | 45,00 | 1.4404 | 026A6I0250150ML | |
| DN 32 | 1/8” | 50,50 | 38,40 | 22,00 | 28,00 | 1.4404 | 026A6I0320012ML |
| 1/4” | 50,50 | 38,40 | 22,00 | 28,00 | 1.4404 | 026A6I0320025ML | |
| 3/8” | 50,50 | 38,40 | 24,00 | 28,00 | 1.4404 | 026A6I0320037ML | |
| 1/2” | 50,50 | 38,40 | 27,00 | 28,00 | 1.4404 | 026A6I0320050ML | |
| 3/4” | 50,50 | 38,40 | 32,00 | 28,00 | 1.4404 | 026A6I0320075ML | |
| 1” | 50,50 | 38,40 | 36,00 | 28,00 | 1.4404 | 026A6I0320100ML | |
| 1.1/4” | 50,50 | 38,40 | 46,00 | 45,00 | 1.4404 | 026A6I0320125ML | |
| 1.1/2” | 50,50 | 38,40 | 46,00 | 45,00 | 1.4404 | 026A6I0320150ML | |
| DN 40 | 1/8” | 64,00 | 44,30 | 22,00 | 32,00 | 1.4404 | 026A6I0400012ML |
| 1/4” | 64,00 | 44,30 | 22,00 | 32,00 | 1.4404 | 026A6I0400025ML | |
| 3/8” | 64,00 | 44,30 | 24,00 | 32,00 | 1.4404 | 026A6I0400037ML | |
| 1/2” | 64,00 | 44,30 | 27,00 | 32,00 | 1.4404 | 026A6I0400050ML | |
| 3/4” | 64,00 | 44,30 | 32,00 | 32,00 | 1.4404 | 026A6I0400075ML | |
| 1” | 64,00 | 44,30 | 41,00 | 32,00 | 1.4404 | 026A6I0400100ML | |
| 1.1/4” | 64,00 | 44,30 | 50,00 | 40,00 | 1.4404 | 026A6I0400125ML | |
| 1.1/2” | 64,00 | 44,30 | 54,00 | 40,00 | 1.4404 | 026A6I0400150ML | |
| 2” | 64,00 | 44,30 | 65,00 | 40,00 | 1.4404 | 026A6I0400200ML |
ART. 026/B BSPT Male threaded
ML
Int. finishing: Ra ≤ 0,4 µm Machined Finish
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
ASTM A270 Flange design According to ASME-BPE
| Size | T | Ø A | Ø Di | CH | L | Material | Code |
|---|---|---|---|---|---|---|---|
| 1/2” | 1/8” | 25,00 | 9,40 | 22,00 | 30,00 | 1.4404 | 026B600500012ML |
| 1/4” | 25,00 | 9,40 | 22,00 | 30,00 | 1.4404 | 026B600500025ML | |
| 3/8” | 25,00 | 9,40 | 22,00 | 30,00 | 1.4404 | 026B600500037ML | |
| 1/2” | 25,00 | 9,40 | 22,00 | 38,00 | 1.4404 | 026B600500050ML | |
| 3/4” | 1/8” | 25,00 | 15,75 | 22,00 | 30,00 | 1.4404 | 026B600750012ML |
| 1/4” | 25,00 | 15,75 | 22,00 | 30,00 | 1.4404 | 026B600750025ML | |
| 3/8” | 25,00 | 15,75 | 22,00 | 30,00 | 1.4404 | 026B600750037ML | |
| 1/2” | 25,00 | 15,75 | 22,00 | 38,00 | 1.4404 | 026B600750050ML | |
| 1” | 1/8” | 50,50 | 22,10 | 22,00 | 28,00 | 1.4404 | 026B601000012ML |
| 1/4” | 50,50 | 22,10 | 22,00 | 28,00 | 1.4404 | 026B601000025ML | |
| 3/8” | 50,50 | 22,10 | 24,00 | 28,00 | 1.4404 | 026B601000037ML | |
| 1/2” | 50,50 | 22,10 | 27,00 | 31,00 | 1.4404 | 026B601000050ML | |
| 3/4” | 50,50 | 22,10 | 32,00 | 31,00 | 1.4404 | 026B601000075ML | |
| 1” | 50,50 | 22,10 | 36,00 | 34,00 | 1.4404 | 026B601000100ML | |
| 1.1/2” | 1/8” | 50,50 | 34,80 | 22,00 | 28,00 | 1.4404 | 026B601500012ML |
| 1/4” | 50,50 | 34,80 | 22,00 | 28,00 | 1.4404 | 026B601500025ML | |
| 3/8” | 50,50 | 34,80 | 24,00 | 28,00 | 1.4404 | 026B601500037ML | |
| 1/2” | 50,50 | 34,80 | 27,00 | 31,00 | 1.4404 | 026B601500050ML | |
| 3/4” | 50,50 | 34,80 | 32,00 | 31,00 | 1.4404 | 026B601500075ML | |
| 1” | 50,50 | 34,80 | 36,00 | 34,00 | 1.4404 | 026B601500100ML | |
| 1.1/4” | 50,50 | 34,80 | 46,00 | 45,00 | 1.4404 | 026B601500125ML | |
| 2” | 1/8” | 64,00 | 47,50 | 22,00 | 30,00 | 1.4404 | 026B602000012ML |
| 1/4” | 64,00 | 47,50 | 22,00 | 30,00 | 1.4404 | 026B602000025ML | |
| 3/8” | 64,00 | 47,50 | 24,00 | 30,00 | 1.4404 | 026B602000037ML | |
| 1/2” | 64,00 | 47,50 | 27,00 | 35,00 | 1.4404 | 026B602000050ML | |
| 3/4” | 64,00 | 47,50 | 32,00 | 35,00 | 1.4404 | 026B602000075ML | |
| 1” | 64,00 | 47,50 | 36,00 | 40,00 | 1.4404 | 026B602000100ML | |
| 1.1/4” | 64,00 | 47,50 | 50,00 | 40,00 | 1.4404 | 026B602000125ML | |
| 1.1/2” | 64,00 | 47,50 | 47,00 | 40,00 | 1.4404 | 026B602000150ML | |
| 2.1/2” | 1/8” | 77,40 | 60,20 | 22,00 | 37,00 | 1.4404 | 026B602500012ML |
| 1/4” | 77,40 | 60,20 | 22,00 | 37,00 | 1.4404 | 026B602500025ML | |
| 3/8” | 77,40 | 60,20 | 24,00 | 37,00 | 1.4404 | 026B602500037ML | |
| 1/2” | 77,40 | 60,20 | 27,00 | 40,00 | 1.4404 | 026B602500050ML | |
| 3/4” | 77,40 | 60,20 | 32,00 | 40,00 | 1.4404 | 026B602500075ML | |
| 1” | 77,40 | 60,20 | 36,00 | 42,00 | 1.4404 | 026B602500100ML | |
| 1.1/4” | 77,40 | 60,20 | 46,00 | 42,00 | 1.4404 | 026B602500125ML | |
| 1.1/2” | 77,40 | 60,20 | 47,00 | 42,00 | 1.4404 | 026B602500150ML |
DIN 32676
| Size | T | Ø A | Ø Di | CH | L | Material | Code |
|---|---|---|---|---|---|---|---|
| DN 10 | 1/8” | 34,00 | 10,00 | 19,00 | 30,00 | 1.4404 | 026B6D0100012ML |
| 1/4” | 34,00 | 10,00 | 19,00 | 30,00 | 1.4404 | 026B6D0100025ML | |
| 3/8” | 34,00 | 10,00 | 30,00 | 43,00 | 1.4404 | 026B6D0100037ML | |
| 1/2” | 34,00 | 10,00 | 30,00 | 43,00 | 1.4404 | 026B6D0100050ML | |
| DN 15 | 1/8” | 34,00 | 16,00 | 19,00 | 30,00 | 1.4404 | 026B6D0150012ML |
| 1/4” | 34,00 | 16,00 | 19,00 | 30,00 | 1.4404 | 026B6D0150025ML | |
| 3/8” | 34,00 | 16,00 | 30,00 | 40,00 | 1.4404 | 026B6D0150037ML | |
| 1/2” | 34,00 | 16,00 | 30,00 | 43,00 | 1.4404 | 026B6D0150050ML | |
| DN 20 | 1/8” | 34,00 | 20,00 | 19,00 | 30,00 | 1.4404 | 026B6D0200012ML |
| 1/4” | 34,00 | 20,00 | 19,00 | 30,00 | 1.4404 | 026B6D0200025ML | |
| 3/8” | 34,00 | 20,00 | 30,00 | 40,00 | 1.4404 | 026B6D0200037ML | |
| 1/2” | 34,00 | 20,00 | 30,00 | 43,00 | 1.4404 | 026B6D0200050ML | |
| DN 25 | 1/8” | 50,50 | 26,00 | 22,00 | 28,00 | 1.4404 | 026B6D0250012ML |
| 1/4” | 50,50 | 26,00 | 22,00 | 28,00 | 1.4404 | 026B6D0250025ML | |
| 3/8” | 50,50 | 26,00 | 24,00 | 28,00 | 1.4404 | 026B6D0250037ML | |
| 1/2” | 50,50 | 26,00 | 27,00 | 31,00 | 1.4404 | 026B6D0250050ML | |
| 3/4” | 50,50 | 26,00 | 32,00 | 31,00 | 1.4404 | 026B6D0250075ML | |
| 1” | 50,50 | 26,00 | 36,00 | 34,00 | 1.4404 | 026B6D0250100ML | |
| DN 32 | 1/8” | 50,50 | 32,00 | 22,00 | 28,00 | 1.4404 | 026B6D0320012ML |
| 1/4” | 50,50 | 32,00 | 22,00 | 28,00 | 1.4404 | 026B6D0320025ML | |
| 3/8” | 50,50 | 32,00 | 24,00 | 28,00 | 1.4404 | 026B6D0320037ML | |
| 1/2” | 50,50 | 32,00 | 27,00 | 31,00 | 1.4404 | 026B6D0320050ML | |
| 3/4” | 50,50 | 32,00 | 32,00 | 31,00 | 1.4404 | 026B6D0320075ML | |
| 1” | 50,50 | 32,00 | 36,00 | 34,00 | 1.4404 | 026B6D0320100ML | |
| 1.1/4” | 50,50 | 32,00 | 46,00 | 45,00 | 1.4404 | 026B6D0320125ML | |
| DN 40 | 1/8” | 50,50 | 38,00 | 22,00 | 28,00 | 1.4404 | 026B6D0400012ML |
| 1/4” | 50,50 | 38,00 | 22,00 | 28,00 | 1.4404 | 026B6D0400025ML | |
| 3/8” | 50,50 | 38,00 | 24,00 | 28,00 | 1.4404 | 026B6D0400037ML | |
| 1/2” | 50,50 | 38,00 | 27,00 | 31,00 | 1.4404 | 026B6D0400050ML | |
| 3/4” | 50,50 | 38,00 | 32,00 | 31,00 | 1.4404 | 026B6D0400075ML | |
| 1” | 50,50 | 38,00 | 36,00 | 34,00 | 1.4404 | 026B6D0400100ML | |
| 1.1/4” | 50,50 | 38,00 | 46,00 | 45,00 | 1.4404 | 026B6D0400125ML | |
| DN 50 | 1/8” | 64,00 | 50,00 | 22,00 | 30,00 | 1.4404 | 026B6D0500012ML |
| 1/4” | 64,00 | 50,00 | 22,00 | 30,00 | 1.4404 | 026B6D0500025ML | |
| 3/8” | 64,00 | 50,00 | 24,00 | 30,00 | 1.4404 | 026B6D0500037ML | |
| 1/2” | 64,00 | 50,00 | 27,00 | 35,00 | 1.4404 | 026B6D0500050ML | |
| 3/4” | 64,00 | 50,00 | 32,00 | 35,00 | 1.4404 | 026B6D0500075ML | |
| 1” | 64,00 | 50,00 | 36,00 | 40,00 | 1.4404 | 026B6D0500100ML | |
| 1.1/4” | 64,00 | 50,00 | 50,00 | 40,00 | 1.4404 | 026B6D0500125ML | |
| 1.1/2” | 64,00 | 50,00 | 47,00 | 40,00 | 1.4404 | 026B6D0500150ML |
ISO 1127
| Size | T | Ø A | Ø Di | CH | L | Material | Code |
|---|---|---|---|---|---|---|---|
| DN 8 | 1/8” | 34,00 | 10,30 | 19,00 | 30,00 | 1.4404 | 026B6I0080012ML |
| 1/4” | 34,00 | 10,30 | 19,00 | 30,00 | 1.4404 | 026B6I0080025ML | |
| 3/8” | 34,00 | 10,30 | 30,00 | 40,00 | 1.4404 | 026B6I0080037ML | |
| 1/2” | 34,00 | 10,30 | 30,00 | 43,00 | 1.4404 | 026B6I0080050ML | |
| DN 10 | 1/8” | 34,00 | 14,00 | 19,00 | 30,00 | 1.4404 | 026B6I0100012ML |
| 1/4” | 34,00 | 14,00 | 19,00 | 30,00 | 1.4404 | 026B6I0100025ML | |
| 3/8” | 34,00 | 14,00 | 30,00 | 40,00 | 1.4404 | 026B6I0100037ML | |
| 1/2” | 34,00 | 14,00 | 30,00 | 43,00 | 1.4404 | 026B6I0100050ML | |
| DN 15 | 1/8” | 34,00 | 18,10 | 19,00 | 30,00 | 1.4404 | 026B6I0150012ML |
| 1/4” | 34,00 | 18,10 | 19,00 | 30,00 | 1.4404 | 026B6I0150025ML | |
| 3/8” | 34,00 | 18,10 | 30,00 | 40,00 | 1.4404 | 026B6I0150037ML | |
| 1/2” | 34,00 | 18,10 | 30,00 | 43,00 | 1.4404 | 026B6I0150050ML | |
| DN 20 | 1/8” | 50,50 | 23,70 | 22,00 | 28,00 | 1.4404 | 026B6I0200012ML |
| 1/4” | 50,50 | 23,70 | 22,00 | 28,00 | 1.4404 | 026B6I0200025ML | |
| 3/8” | 50,50 | 23,70 | 24,00 | 28,00 | 1.4404 | 026B6I0200037ML | |
| 1/2” | 50,50 | 23,70 | 27,00 | 31,00 | 1.4404 | 026B6I0200050ML | |
| 3/4” | 50,50 | 23,70 | 32,00 | 31,00 | 1.4404 | 026B6I0200075ML | |
| 1” | 50,50 | 23,70 | 36,00 | 34,00 | 1.4404 | 026B6I0200100ML | |
| DN 25 | 1/8” | 50,50 | 29,70 | 22,00 | 28,00 | 1.4404 | 026B6I0250012ML |
| 1/4” | 50,50 | 29,70 | 22,00 | 28,00 | 1.4404 | 026B6I0250025ML | |
| 3/8” | 50,50 | 29,70 | 24,00 | 28,00 | 1.4404 | 026B6I0250037ML | |
| 1/2” | 50,50 | 29,70 | 27,00 | 31,00 | 1.4404 | 026B6I0250050ML | |
| 3/4” | 50,50 | 29,70 | 32,00 | 31,00 | 1.4404 | 026B6I0250075ML | |
| 1” | 50,50 | 29,70 | 36,00 | 34,00 | 1.4404 | 026B6I0250100ML | |
| 1.1/4” | 50,50 | 29,70 | 46,00 | 45,00 | 1.4404 | 026B6I0250125ML | |
| DN 32 | 1/8” | 50,50 | 38,40 | 22,00 | 28,00 | 1.4404 | 026B6I0320012ML |
| 1/4” | 50,50 | 38,40 | 22,00 | 28,00 | 1.4404 | 026B6I0320025ML | |
| 3/8” | 50,50 | 38,40 | 24,00 | 28,00 | 1.4404 | 026B6I0320037ML | |
| 1/2” | 50,50 | 38,40 | 27,00 | 31,00 | 1.4404 | 026B6I0320050ML | |
| 3/4” | 50,50 | 38,40 | 32,00 | 31,00 | 1.4404 | 026B6I0320075ML | |
| 1” | 50,50 | 38,40 | 36,00 | 34,00 | 1.4404 | 026B6I0320100ML | |
| 1.1/4” | 50,50 | 38,40 | 46,00 | 45,00 | 1.4404 | 026B6I0320125ML | |
| DN 40 | 1/8” | 64,00 | 44,30 | 22,00 | 30,00 | 1.4404 | 026B6I0400012ML |
| 1/4” | 64,00 | 44,30 | 22,00 | 30,00 | 1.4404 | 026B6I0400025ML | |
| 3/8” | 64,00 | 44,30 | 24,00 | 30,00 | 1.4404 | 026B6I0400037ML | |
| 1/2” | 64,00 | 44,30 | 27,00 | 35,00 | 1.4404 | 026B6I0400050ML | |
| 3/4” | 64,00 | 44,30 | 32,00 | 35,00 | 1.4404 | 026B6I0400075ML | |
| 1” | 64,00 | 44,30 | 36,00 | 40,00 | 1.4404 | 026B6I0400100ML | |
| 1.1/4” | 64,00 | 44,30 | 50,00 | 40,00 | 1.4404 | 026B6I0400125ML | |
| 1.1/2” | 64,00 | 44,30 | 47,00 | 40,00 | 1.4404 | 026B6I0400150ML |
ART. 026/C NPT Male threaded
ML
Int. finishing: Ra ≤ 0,4 µm Machined Finish
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
ASTM A270 Flange design According to ASME-BPE
| Size | T | Ø A | Ø Di | CH | L | Material | Code |
|---|---|---|---|---|---|---|---|
| 1/2” | 1/8” | 25,00 | 9,40 | 22,00 | 30,00 | 1.4404 | 026C600500012ML |
| 1/4” | 25,00 | 9,40 | 22,00 | 30,00 | 1.4404 | 026C600500025ML | |
| 3/8” | 25,00 | 9,40 | 22,00 | 30,00 | 1.4404 | 026C600500037ML | |
| 1/2” | 25,00 | 9,40 | 22,00 | 38,00 | 1.4404 | 026C600500050ML | |
| 3/4” | 1/8” | 25,00 | 15,75 | 22,00 | 30,00 | 1.4404 | 026C600750012ML |
| 1/4” | 25,00 | 15,75 | 22,00 | 30,00 | 1.4404 | 026C600750025ML | |
| 3/8” | 25,00 | 15,75 | 22,00 | 30,00 | 1.4404 | 026C600750037ML | |
| 1/2” | 25,00 | 15,75 | 22,00 | 38,00 | 1.4404 | 026C600750050ML | |
| 1” | 1/8” | 50,50 | 22,10 | 22,00 | 28,00 | 1.4404 | 026C601000012ML |
| 1/4” | 50,50 | 22,10 | 22,00 | 28,00 | 1.4404 | 026C601000025ML | |
| 3/8” | 50,50 | 22,10 | 24,00 | 28,00 | 1.4404 | 026C601000037ML | |
| 1/2” | 50,50 | 22,10 | 27,00 | 31,00 | 1.4404 | 026C601000050ML | |
| 3/4” | 50,50 | 22,10 | 32,00 | 31,00 | 1.4404 | 026C601000075ML | |
| 1” | 50,50 | 22,10 | 36,00 | 34,00 | 1.4404 | 026C601000100ML | |
| 1.1/2” | 1/8” | 50,50 | 34,80 | 22,00 | 28,00 | 1.4404 | 026C601500012ML |
| 1/4” | 50,50 | 34,80 | 22,00 | 28,00 | 1.4404 | 026C601500025ML | |
| 3/8” | 50,50 | 34,80 | 24,00 | 28,00 | 1.4404 | 026C601500037ML | |
| 1/2” | 50,50 | 34,80 | 27,00 | 31,00 | 1.4404 | 026C601500050ML | |
| 3/4” | 50,50 | 34,80 | 32,00 | 31,00 | 1.4404 | 026C601500075ML | |
| 1” | 50,50 | 34,80 | 36,00 | 34,00 | 1.4404 | 026C601500100ML | |
| 1.1/4” | 50,50 | 34,80 | 46,00 | 45,00 | 1.4404 | 026C601500125ML | |
| 2” | 1/8” | 64,00 | 47,50 | 22,00 | 30,00 | 1.4404 | 026C602000012ML |
| 1/4” | 64,00 | 47,50 | 22,00 | 30,00 | 1.4404 | 026C602000025ML | |
| 3/8” | 64,00 | 47,50 | 24,00 | 30,00 | 1.4404 | 026C602000037ML | |
| 1/2” | 64,00 | 47,50 | 27,00 | 35,00 | 1.4404 | 026C602000050ML | |
| 3/4” | 64,00 | 47,50 | 32,00 | 35,00 | 1.4404 | 026C602000075ML | |
| 1” | 64,00 | 47,50 | 36,00 | 40,00 | 1.4404 | 026C602000100ML | |
| 1.1/4” | 64,00 | 47,50 | 50,00 | 40,00 | 1.4404 | 026C602000125ML | |
| 1.1/2” | 64,00 | 47,50 | 47,00 | 40,00 | 1.4404 | 026C602000150ML | |
| 2.1/2” | 1/8” | 77,40 | 60,20 | 22,00 | 37,00 | 1.4404 | 026C602500012ML |
| 1/4” | 77,40 | 60,20 | 22,00 | 37,00 | 1.4404 | 026C602500025ML | |
| 3/8” | 77,40 | 60,20 | 24,00 | 37,00 | 1.4404 | 026C602500037ML | |
| 1/2” | 77,40 | 60,20 | 27,00 | 40,00 | 1.4404 | 026C602500050ML | |
| 3/4” | 77,40 | 60,20 | 32,00 | 40,00 | 1.4404 | 026C602500075ML | |
| 1” | 77,40 | 60,20 | 36,00 | 42,00 | 1.4404 | 026C602500100ML | |
| 1.1/4” | 77,40 | 60,20 | 46,00 | 42,00 | 1.4404 | 026C602500125ML | |
| 1.1/2” | 77,40 | 60,20 | 47,00 | 42,00 | 1.4404 | 026C602500150ML |
DIN 32676
| Size | T | Ø A | Ø Di | CH | L | Material | Code |
|---|---|---|---|---|---|---|---|
| DN 10 | 1/8” | 34,00 | 10,00 | 19,00 | 30,00 | 1.4404 | 026C6D0100012ML |
| 1/4” | 34,00 | 10,00 | 19,00 | 30,00 | 1.4404 | 026C6D0100025ML | |
| 3/8” | 34,00 | 10,00 | 30,00 | 43,00 | 1.4404 | 026C6D0100037ML | |
| 1/2” | 34,00 | 10,00 | 30,00 | 43,00 | 1.4404 | 026C6D0100050ML | |
| DN 15 | 1/8” | 34,00 | 16,00 | 19,00 | 30,00 | 1.4404 | 026C6D0150012ML |
| 1/4” | 34,00 | 16,00 | 19,00 | 30,00 | 1.4404 | 026C6D0150025ML | |
| 3/8” | 34,00 | 16,00 | 30,00 | 40,00 | 1.4404 | 026C6D0150037ML | |
| 1/2” | 34,00 | 16,00 | 30,00 | 43,00 | 1.4404 | 026C6D0150050ML | |
| DN 20 | 1/8” | 34,00 | 20,00 | 19,00 | 30,00 | 1.4404 | 026C6D0200012ML |
| 1/4” | 34,00 | 20,00 | 19,00 | 30,00 | 1.4404 | 026C6D0200025ML | |
| 3/8” | 34,00 | 20,00 | 30,00 | 40,00 | 1.4404 | 026C6D0200037ML | |
| 1/2” | 34,00 | 20,00 | 30,00 | 43,00 | 1.4404 | 026C6D0200050ML | |
| DN 25 | 1/8” | 50,50 | 26,00 | 22,00 | 28,00 | 1.4404 | 026C6D0250012ML |
| 1/4” | 50,50 | 26,00 | 22,00 | 28,00 | 1.4404 | 026C6D0250025ML | |
| 3/8” | 50,50 | 26,00 | 24,00 | 28,00 | 1.4404 | 026C6D0250037ML | |
| 1/2” | 50,50 | 26,00 | 27,00 | 31,00 | 1.4404 | 026C6D0250050ML | |
| 3/4” | 50,50 | 26,00 | 32,00 | 31,00 | 1.4404 | 026C6D0250075ML | |
| 1” | 50,50 | 26,00 | 36,00 | 34,00 | 1.4404 | 026C6D0250100ML | |
| DN 32 | 1/8” | 50,50 | 32,00 | 22,00 | 28,00 | 1.4404 | 026C6D0320012ML |
| 1/4” | 50,50 | 32,00 | 22,00 | 28,00 | 1.4404 | 026C6D0320025ML | |
| 3/8” | 50,50 | 32,00 | 24,00 | 28,00 | 1.4404 | 026C6D0320037ML | |
| 1/2” | 50,50 | 32,00 | 27,00 | 31,00 | 1.4404 | 026C6D0320050ML | |
| 3/4” | 50,50 | 32,00 | 32,00 | 31,00 | 1.4404 | 026C6D0320075ML | |
| 1” | 50,50 | 32,00 | 36,00 | 34,00 | 1.4404 | 026C6D0320100ML | |
| 1.1/4” | 50,50 | 32,00 | 46,00 | 45,00 | 1.4404 | 026C6D0320125ML | |
| DN 40 | 1/8” | 50,50 | 38,00 | 22,00 | 28,00 | 1.4404 | 026C6D0400012ML |
| 1/4” | 50,50 | 38,00 | 22,00 | 28,00 | 1.4404 | 026C6D0400025ML | |
| 3/8” | 50,50 | 38,00 | 24,00 | 28,00 | 1.4404 | 026C6D0400037ML | |
| 1/2” | 50,50 | 38,00 | 27,00 | 31,00 | 1.4404 | 026C6D0400050ML | |
| 3/4” | 50,50 | 38,00 | 32,00 | 31,00 | 1.4404 | 026C6D0400075ML | |
| 1” | 50,50 | 38,00 | 36,00 | 34,00 | 1.4404 | 026C6D0400100ML | |
| 1.1/4” | 50,50 | 38,00 | 46,00 | 45,00 | 1.4404 | 026C6D0400125ML | |
| DN 50 | 1/8” | 64,00 | 50,00 | 22,00 | 30,00 | 1.4404 | 026C6D0500012ML |
| 1/4” | 64,00 | 50,00 | 22,00 | 30,00 | 1.4404 | 026C6D0500025ML | |
| 3/8” | 64,00 | 50,00 | 24,00 | 30,00 | 1.4404 | 026C6D0500037ML | |
| 1/2” | 64,00 | 50,00 | 27,00 | 35,00 | 1.4404 | 026C6D0500050ML | |
| 3/4” | 64,00 | 50,00 | 32,00 | 35,00 | 1.4404 | 026C6D0500075ML | |
| 1” | 64,00 | 50,00 | 36,00 | 40,00 | 1.4404 | 026C6D0500100ML | |
| 1.1/4” | 64,00 | 50,00 | 50,00 | 40,00 | 1.4404 | 026C6D0500125ML | |
| 1.1/2” | 64,00 | 50,00 | 47,00 | 40,00 | 1.4404 | 026C6D0500150ML |
ISO 1127
| Size | T | Ø A | Ø Di | CH | L | Material | Code |
|---|---|---|---|---|---|---|---|
| DN 8 | 1/8” | 34,00 | 10,30 | 19,00 | 30,00 | 1.4404 | 026C6I0080012ML |
| 1/4” | 34,00 | 10,30 | 19,00 | 30,00 | 1.4404 | 026C6I0080025ML | |
| 3/8” | 34,00 | 10,30 | 30,00 | 40,00 | 1.4404 | 026C6I0080037ML | |
| 1/2” | 34,00 | 10,30 | 30,00 | 43,00 | 1.4404 | 026C6I0080050ML | |
| DN 10 | 1/8” | 34,00 | 14,00 | 19,00 | 30,00 | 1.4404 | 026C6I0100012ML |
| 1/4” | 34,00 | 14,00 | 19,00 | 30,00 | 1.4404 | 026C6I0100025ML | |
| 3/8” | 34,00 | 14,00 | 30,00 | 40,00 | 1.4404 | 026C6I0100037ML | |
| 1/2” | 34,00 | 14,00 | 30,00 | 43,00 | 1.4404 | 026C6I0100050ML | |
| DN 15 | 1/8” | 34,00 | 18,10 | 19,00 | 30,00 | 1.4404 | 026C6I0150012ML |
| 1/4” | 34,00 | 18,10 | 19,00 | 30,00 | 1.4404 | 026C6I0150025ML | |
| 3/8” | 34,00 | 18,10 | 30,00 | 40,00 | 1.4404 | 026C6I0150037ML | |
| 1/2” | 34,00 | 18,10 | 30,00 | 43,00 | 1.4404 | 026C6I0150050ML | |
| DN 20 | 1/8” | 50,50 | 23,70 | 22,00 | 28,00 | 1.4404 | 026C6I0200012ML |
| 1/4” | 50,50 | 23,70 | 22,00 | 28,00 | 1.4404 | 026C6I0200025ML | |
| 3/8” | 50,50 | 23,70 | 24,00 | 28,00 | 1.4404 | 026C6I0200037ML | |
| 1/2” | 50,50 | 23,70 | 27,00 | 31,00 | 1.4404 | 026C6I0200050ML | |
| 3/4” | 50,50 | 23,70 | 32,00 | 31,00 | 1.4404 | 026C6I0200075ML | |
| 1” | 50,50 | 23,70 | 36,00 | 34,00 | 1.4404 | 026C6I0200100ML | |
| DN 25 | 1/8” | 50,50 | 29,70 | 22,00 | 28,00 | 1.4404 | 026C6I0250012ML |
| 1/4” | 50,50 | 29,70 | 22,00 | 28,00 | 1.4404 | 026C6I0250025ML | |
| 3/8” | 50,50 | 29,70 | 24,00 | 28,00 | 1.4404 | 026C6I0250037ML | |
| 1/2” | 50,50 | 29,70 | 27,00 | 31,00 | 1.4404 | 026C6I0250050ML | |
| 3/4” | 50,50 | 29,70 | 32,00 | 31,00 | 1.4404 | 026C6I0250075ML | |
| 1” | 50,50 | 29,70 | 36,00 | 34,00 | 1.4404 | 026C6I0250100ML | |
| 1.1/4” | 50,50 | 29,70 | 46,00 | 45,00 | 1.4404 | 026C6I0250125ML | |
| DN 32 | 1/8” | 50,50 | 38,40 | 22,00 | 28,00 | 1.4404 | 026C6I0320012ML |
| 1/4” | 50,50 | 38,40 | 22,00 | 28,00 | 1.4404 | 026C6I0320025ML | |
| 3/8” | 50,50 | 38,40 | 24,00 | 28,00 | 1.4404 | 026C6I0320037ML | |
| 1/2” | 50,50 | 38,40 | 27,00 | 31,00 | 1.4404 | 026C6I0320050ML | |
| 3/4” | 50,50 | 38,40 | 32,00 | 31,00 | 1.4404 | 026C6I0320075ML | |
| 1” | 50,50 | 38,40 | 36,00 | 34,00 | 1.4404 | 026C6I0320100ML | |
| 1.1/4” | 50,50 | 38,40 | 46,00 | 45,00 | 1.4404 | 026C6I0320125ML | |
| DN 40 | 1/8” | 64,00 | 44,30 | 22,00 | 30,00 | 1.4404 | 026C6I0400012ML |
| 1/4” | 64,00 | 44,30 | 22,00 | 30,00 | 1.4404 | 026C6I0400025ML | |
| 3/8” | 64,00 | 44,30 | 24,00 | 30,00 | 1.4404 | 026C6I0400037ML | |
| 1/2” | 64,00 | 44,30 | 27,00 | 35,00 | 1.4404 | 026C6I0400050ML | |
| 3/4” | 64,00 | 44,30 | 32,00 | 35,00 | 1.4404 | 026C6I0400075ML | |
| 1” | 64,00 | 44,30 | 36,00 | 40,00 | 1.4404 | 026C6I0400100ML | |
| 1.1/4” | 64,00 | 44,30 | 50,00 | 40,00 | 1.4404 | 026C6I0400125ML | |
| 1.1/2” | 64,00 | 44,30 | 47,00 | 40,00 | 1.4404 | 026C6I0400150ML |
