Tri-Clamp Fittings

ART. 034

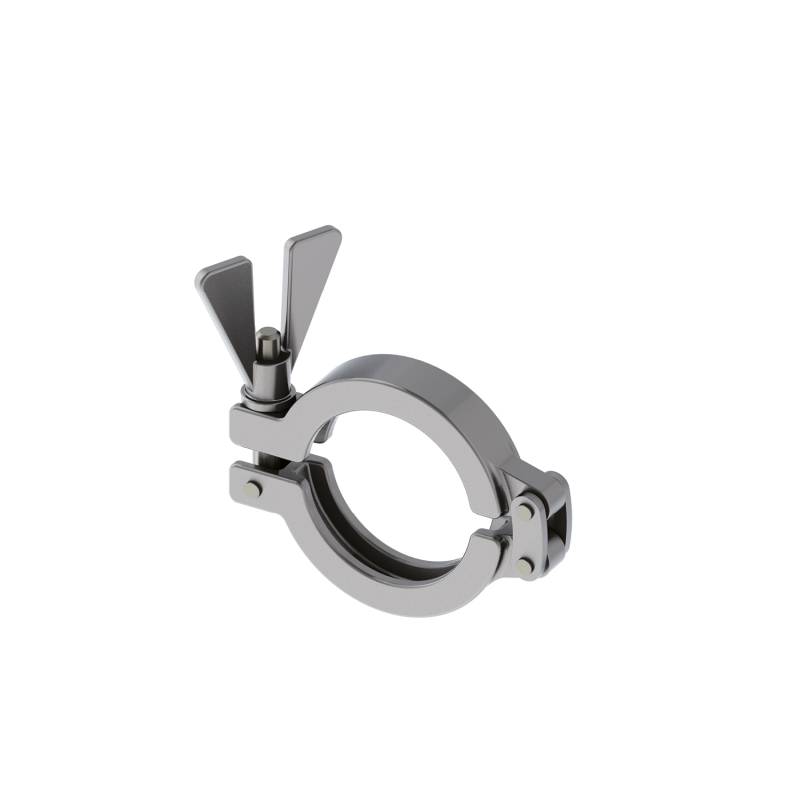

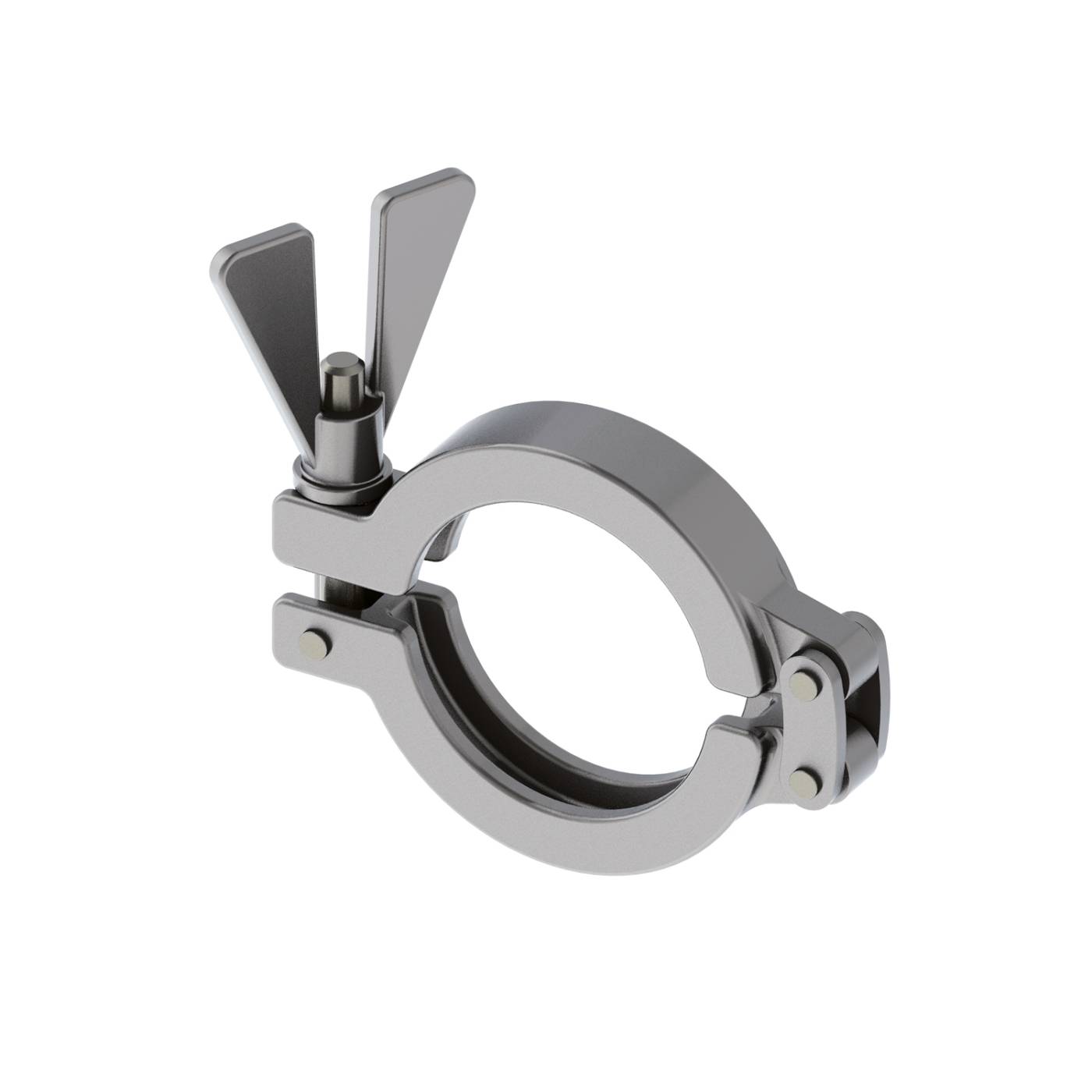

Double Pin Clamp

Technical sheet
034_rattiinox
Technical sheet

ART. 034 ASTM A270 / DIN 32676 / ISO 1127 - AISI 304 - 1.4301

AØ FlangeASTM A270DIN 32676ISO 1127MaterialCode
28251/2”, 3/4”  AISI 304034Z40050
3734 DN 10-15-20DN 8-10-15AISI 304034Z4D010
5350,51”, 1.1/2”DN 25-32-40DN 20-25-32AISI 304034Z40100
67642”DN 50DN 40AISI 304034Z40200
8077,52.1/2” DN 50AISI 304034Z40250
94913”DN 65DN 65AISI 304034Z40300
109106 DN 80DN 80AISI 304034Z4D080
1221194”DN 100 AISI 304034Z40400
133130  DN 100AISI 304034Z4D100
1701676”  AISI 304034Z40600



ART. 034 ASTM A270 / DIN 32676 / ISO 1127 - AISI 316

AØ FlangeASTM A270DIN 32676ISO 1127MaterialCode
28251/2”, 3/4”  AISI 316034Z60050
3734 DN 10-15-20DN 8-10-15AISI 316034Z6D010
5350,51”, 1.1/2”DN 25-32-40DN 20-25-32AISI 316034Z60100
67642”DN 50DN 40AISI 316034Z60200
8077,52.1/2” DN 50AISI 316034Z60250
94913”DN 65DN 65AISI 316034Z60300
109106 DN 80DN 80AISI 316034Z6D080
1221194”DN 100 AISI 316034Z60400
133130  DN 100AISI 316034Z6D100
1701676”  AISI 316034Z60600
