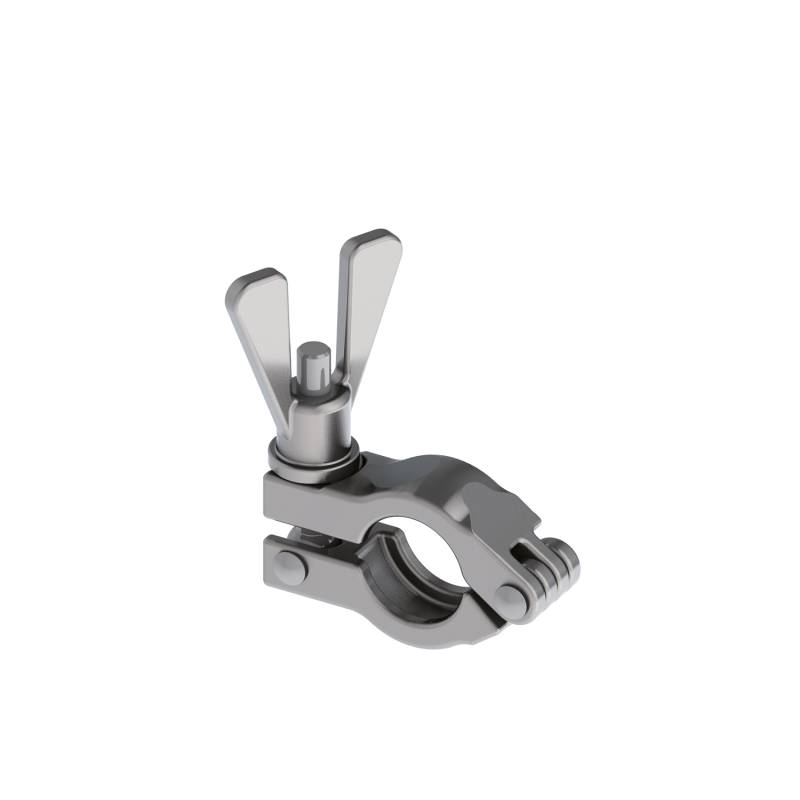

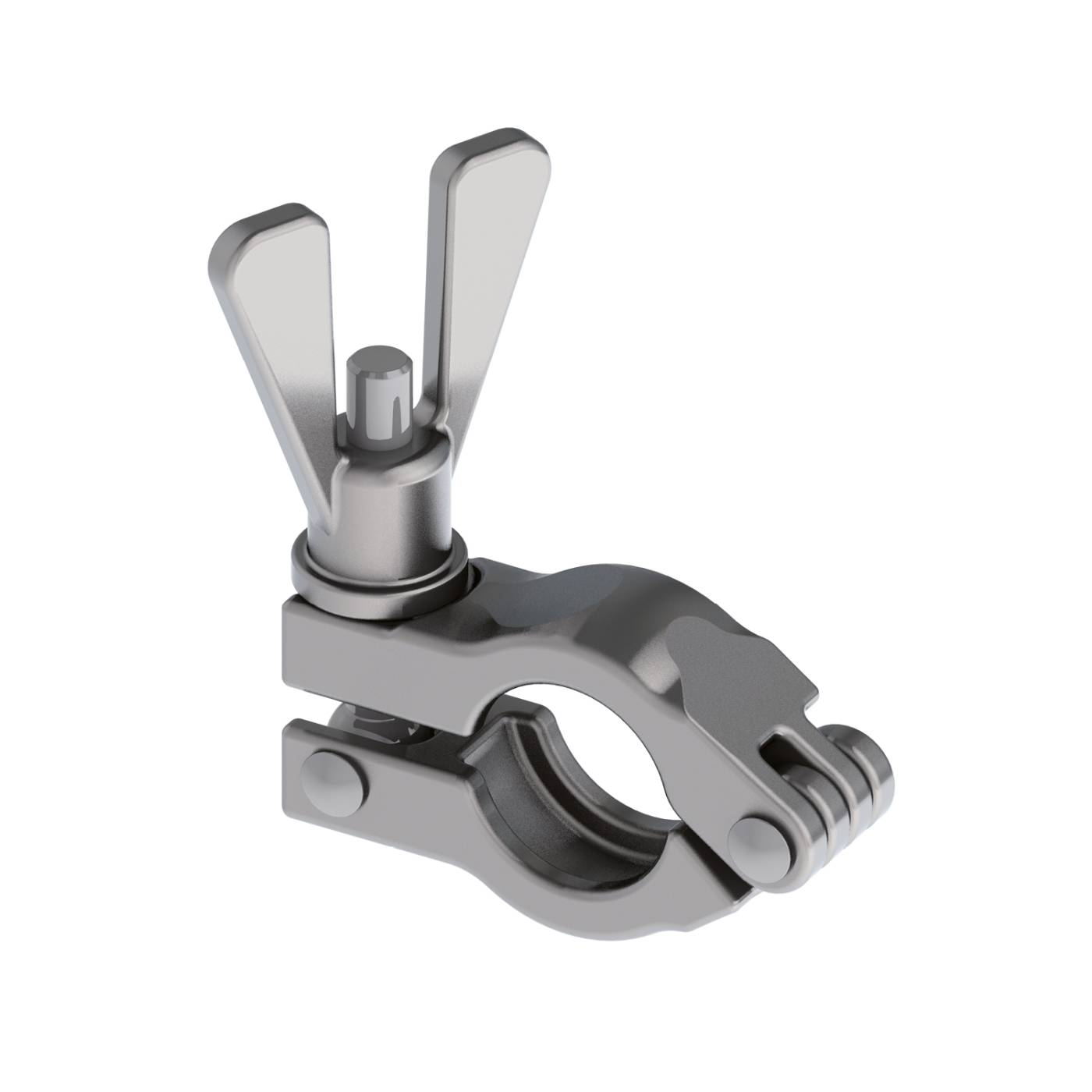

ART. 039 Single Pin Clamp
| A | Ø Flange | ASTM A270 | DIN 32676 | ISO 1127 | Material | Code |
|---|---|---|---|---|---|---|
| 28 | 25 | 1/2”, 3/4” | AISI 304 | 039Z40050 | ||
| 37 | 34 | DN 10-15-20 | DN 8-10-15 | AISI 304 | 039Z4D010 | |
| 53 | 50,5 | 1”, 1.1/2” | DN 25-32-40 | DN 20-25-32 | AISI 304 | 039Z40100 |
| 67 | 64 | 2” | DN 50 | DN 40 | AISI 304 | 039Z40200 |
| 80 | 77,5 | 2.1/2” | DN 50 | AISI 304 | 039Z40250 | |
| 94 | 91 | 3” | DN 65 | DN 65 | AISI 304 | 039Z40300 |
| 109 | 106 | DN 80 | DN 80 | AISI 304 | 039Z4D080 | |
| 122 | 119 | 4” | DN 100 | AISI 304 | 039Z40400 | |
| 133 | 130 | DN 100 | AISI 304 | 039Z4D100 | ||
| 170 | 167 | 6” | AISI 304 | 039Z40600 |
