YCON
TOP QUALITY

Technical sheet
CONCON_rattiinox_2

4 lengths
available

Real Zero Dead
Leg design

PED and ASME
Section VIII Division 1

1.4435-BN2

Technical sheet

YCON TOP QUALITY

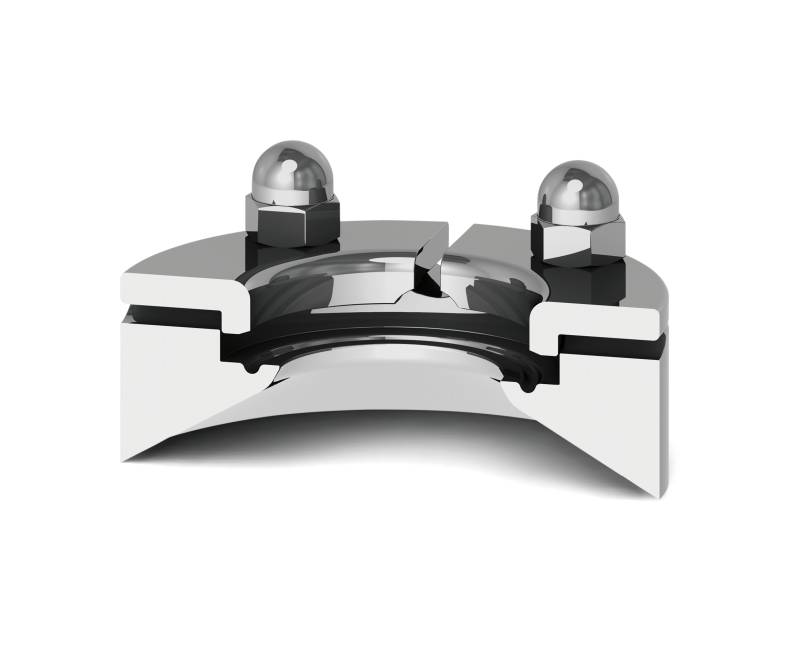

YCON - ZERO DEAD LEG CONNECTION - top quality

Welding Plate Material: 1.4435-BN2
(Low ferrite and low sulphur also according to ASME BPE requirements)

Locking Ring Material: 1.4404

Bolts & Nuts: 1.4404 / 1.4301

Internal finising: 0,4 Ra

External finishing: 0,8 Ra

Available connections according to:
ASTM A269-A270
DIN 32676 & 11850 Series 1-3
ISO 1127 Serie 1
SMS 3008

Available lengths: 12 mm - 25 mm - 38 mm - 51 mm
Special lengths or materials available on request

On request:
Possibility to deliver “already machined rounded plates” to be able to copy the internal shape of the vessel achieving the highest customers requirements.

Customers will have a great benefit in terms of quality and cost saving on vessel manufacturing.

Multiport monoblock (CADLID):
Tank covers machined from solid, no weldings, cost saving on vessel manufacturing and higher quality achieved.
