Valves On Pipe for SAFE areas are designed to feed or take off fluids or gases from the process piping, and draw off WFI or PW loop with Zero dead leg. Body shape with flush flow seal on pipe and their internal design offer a very reliable component for Aseptic Processing Application. Standard version are short butt weld ends but, on demand, may be delivered for orbital welding or with Tri-Clamp connections. Shut Off and Flow Through valves are available in several configurations to fulfill customer needs on all applications: vertical or horizontal installations, coaxial or tangential inlets as standard, they are designed for a full drain ability and free of unused portions or dead legs. Single valves design or valves with satellite assembly are ready in one block for SIP and CIP activities.

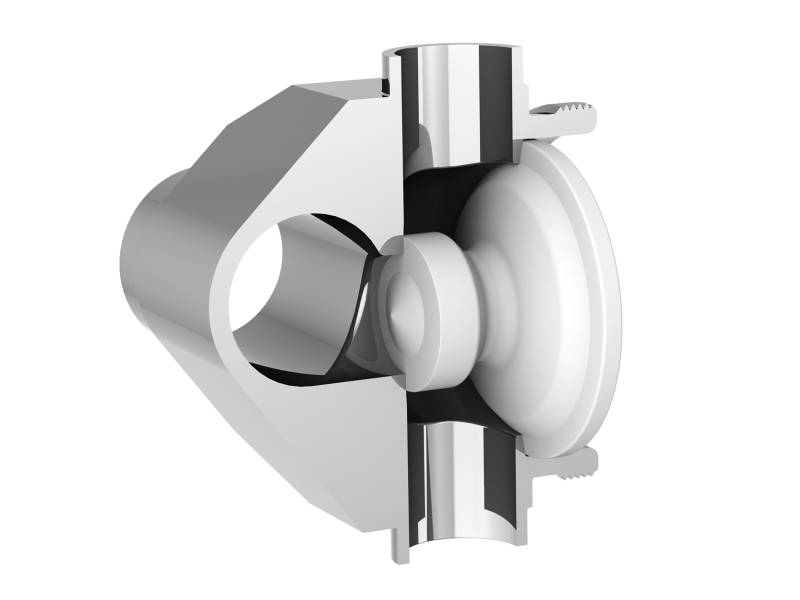

Valves
on Pipe
Additional connection
for satellite valves
on flow through valves
Short distance
between the inlet
and the sealing area
Straight outlet
for optimal
drainability
Internal design
free from
asymptotic closure
