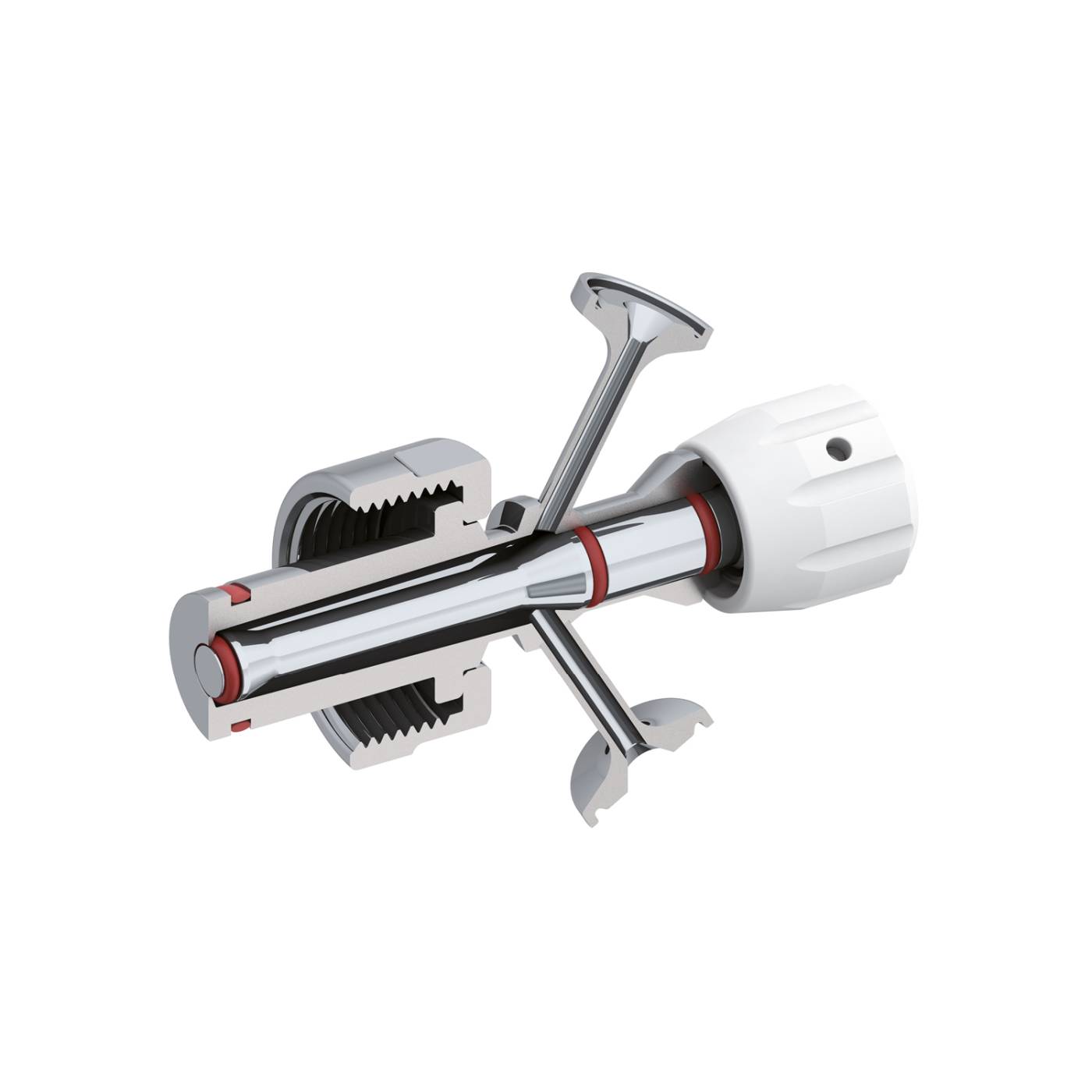

ART. 091/E 1 Tri-Clamp Outlet + 1 CIP Tri-Clamp Inlet
Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Horizontal installation recommended
ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
| Size | Ø A | B | L | Valve Material | O-Rings Material | Code |
|---|---|---|---|---|---|---|
| DN 25 | 25,00 | 40,00 | 41,00 | 1.4404 | FPM/FKM | 091E6IN025V |
| EPDM | 091E6IN025EP | |||||
| SILICONE FDA | 091E6IN025SIF | |||||
| SILICONE USP 121 | 091E6IN025SI121 |

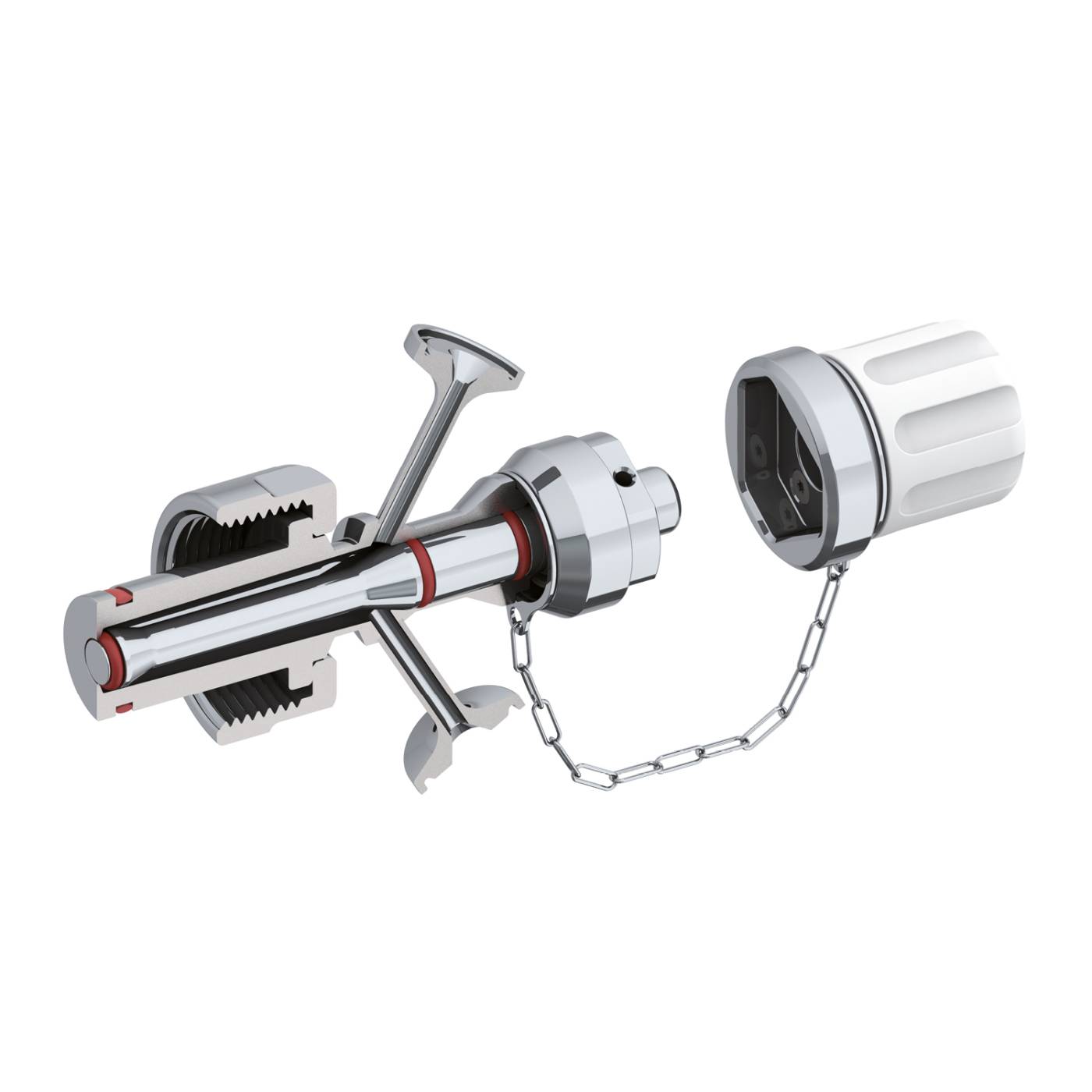

ART. 091/F 1 Tri-Clamp outlet + 1 CIP/sip TRI-CLAMP inlet + Removable handle
Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Horizontal installation recommended
ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
| Size | Ø A | B | L | Valve Material | O-Rings Material | Code |
|---|---|---|---|---|---|---|
| DN 25 | 25,00 | 40,00 | 41,00 | 1.4404 | FPM/FKM | 091F6IN025V |
| EPDM | 091F6IN025EP | |||||
| SILICONE FDA | 091F6IN025SIF | |||||
| SILICONE USP 121 | 091F6IN025SI121 |
