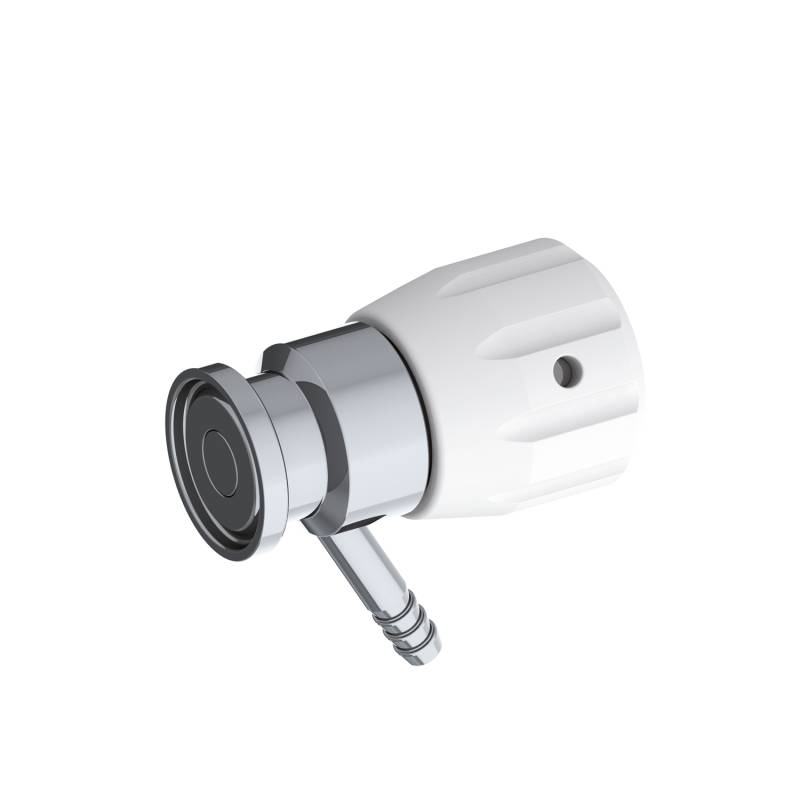

Side Sampling Valves

ART. 090
30° O-Ring
Sampling Valves

Technical sheet
090_rattiinox
Technical sheet

Characteristics: Side pipe sanitary sampling valves are designed for sampling of liquids on pharmaceutical, chemical, F&B and cosmetics products. O-Ring closing system.

Documentation: Laser marking for traceability and validation processes. Material 3.1 certificates, FDA or USP, internal surface finishing check as standard.

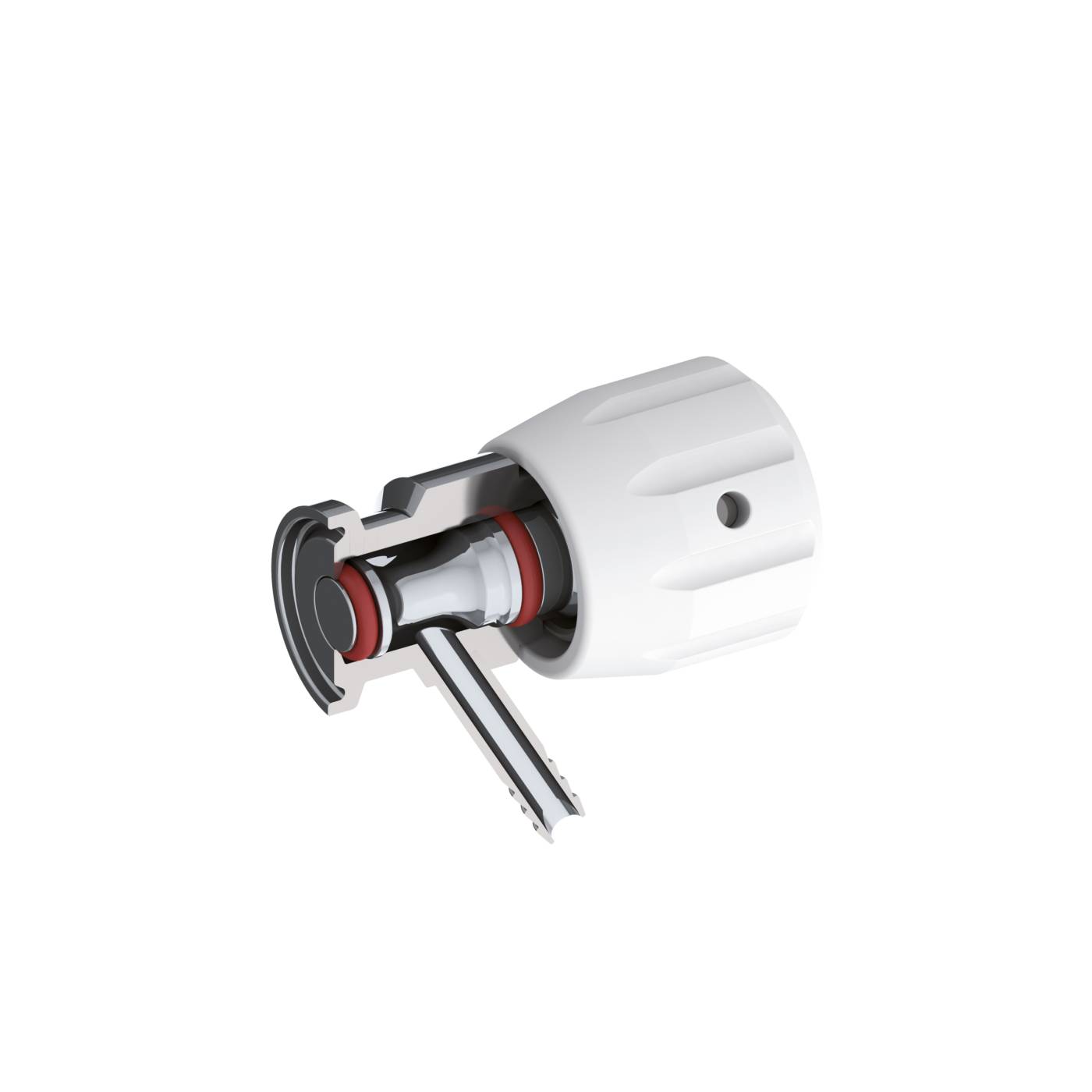

ART. 090/A 1 HOSE BARB OUTLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Horizontal installation recommended

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø ALValve MaterialO-Rings MaterialCode
25,0035,001.4404FPM/FKM090A6TC25V
EPDM090A6TC25EP
SILICONE FDA090A6TC25SIF
SILICONE USP 121090A6TC25SI121
34,0035,001.4404FPM/FKM090A6TC34V
EPDM090A6TC34EP
SILICONE FDA090A6TC34SIF
SILICONE USP 121090A6TC34SI121
50,5041,001.4404FPM/FKM090A6TC50V
EPDM090A6TC50EP
SILICONE FDA090A6TC50SIF
SILICONE USP 121090A6TC50SI121

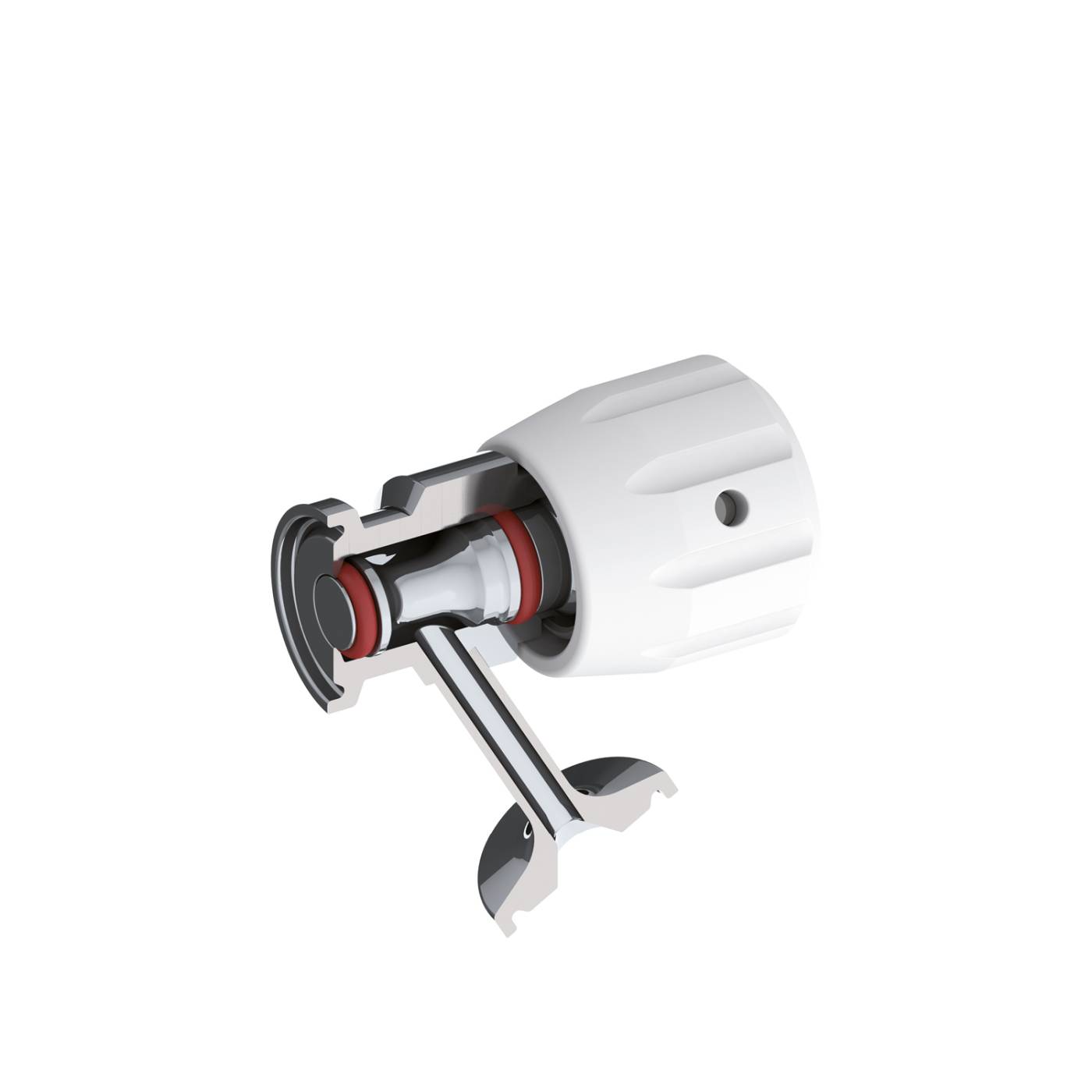

ART. 090/B 1 TRI-CLAMP OUTLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Horizontal installation recommended

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø ALValve MaterialO-Rings MaterialCode
25,0041,101.4404FPM/FKM090B6TC25V
EPDM090B6TC25EP
SILICONE FDA090B6TC25SIF
SILICONE USP 121090B6TC25SI121
34,0041,101.4404FPM/FKM090B6TC34V
EPDM090B6TC34EP
SILICONE FDA090B6TC34SIF
SILICONE USP 121090B6TC34SI121
50,5046,701.4404FPM/FKM090B6TC50V
EPDM090B6TC50EP
SILICONE FDA090B6TC50SIF
SILICONE USP 121090B6TC50SI121

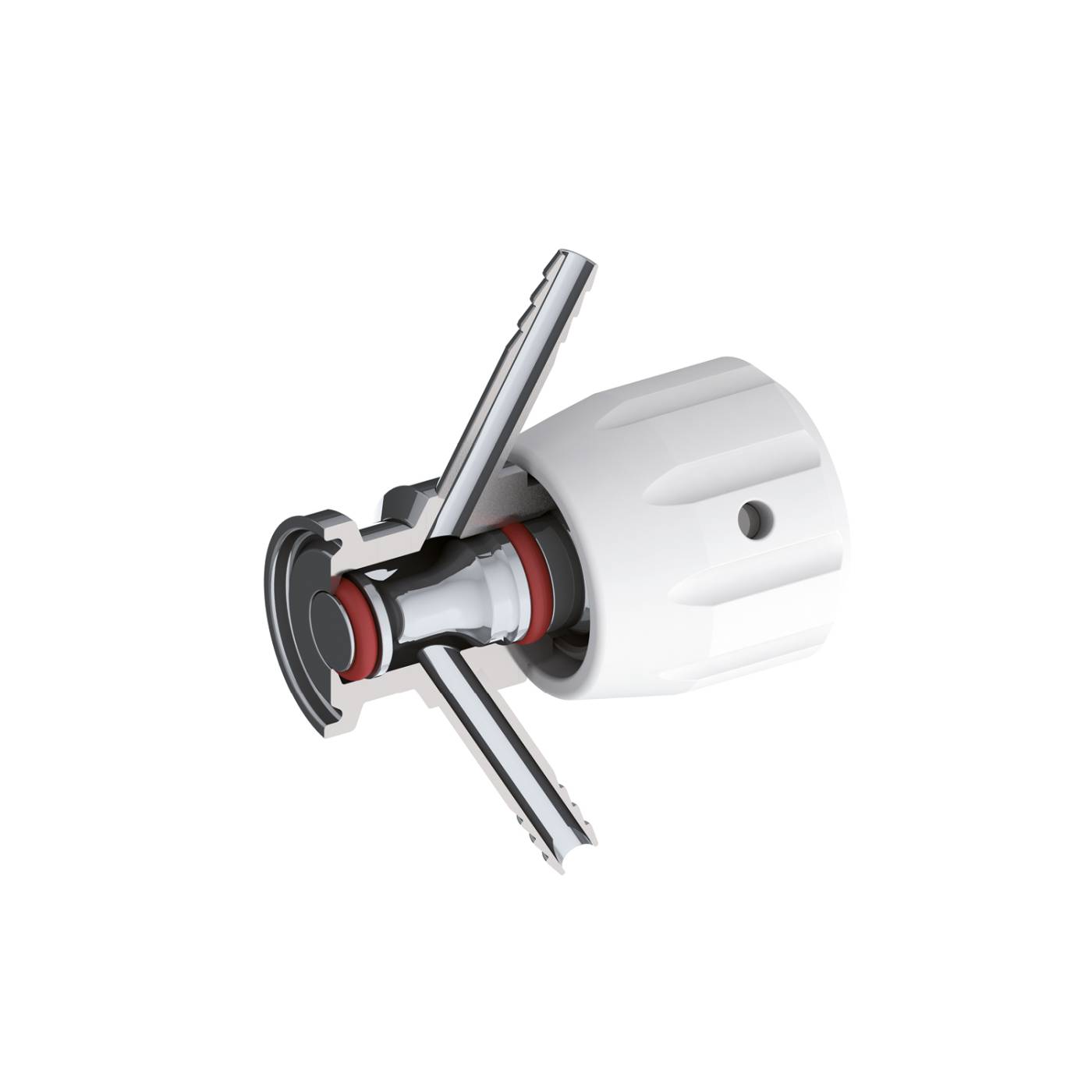

ART. 090/C 1 HOSE BARB OUTLET + 1 CIP HOSE BARB INLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Horizontal installation recommended

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø ALValve MaterialO-Rings MaterialCode
25,0061,501.4404FPM/FKM090C6TC25V
EPDM090C6TC25EP
SILICONE FDA090C6TC25SIF
SILICONE USP 121090C6TC25SI121
34,0061,501.4404FPM/FKM090C6TC34V
EPDM090C6TC34EP
SILICONE FDA090C6TC34SIF
SILICONE USP 121090C6TC34SI121
50,5068,001.4404FPM/FKM090C6TC50V
EPDM090C6TC50EP
SILICONE FDA090C6TC50SIF
SILICONE USP 121090C6TC50SI121

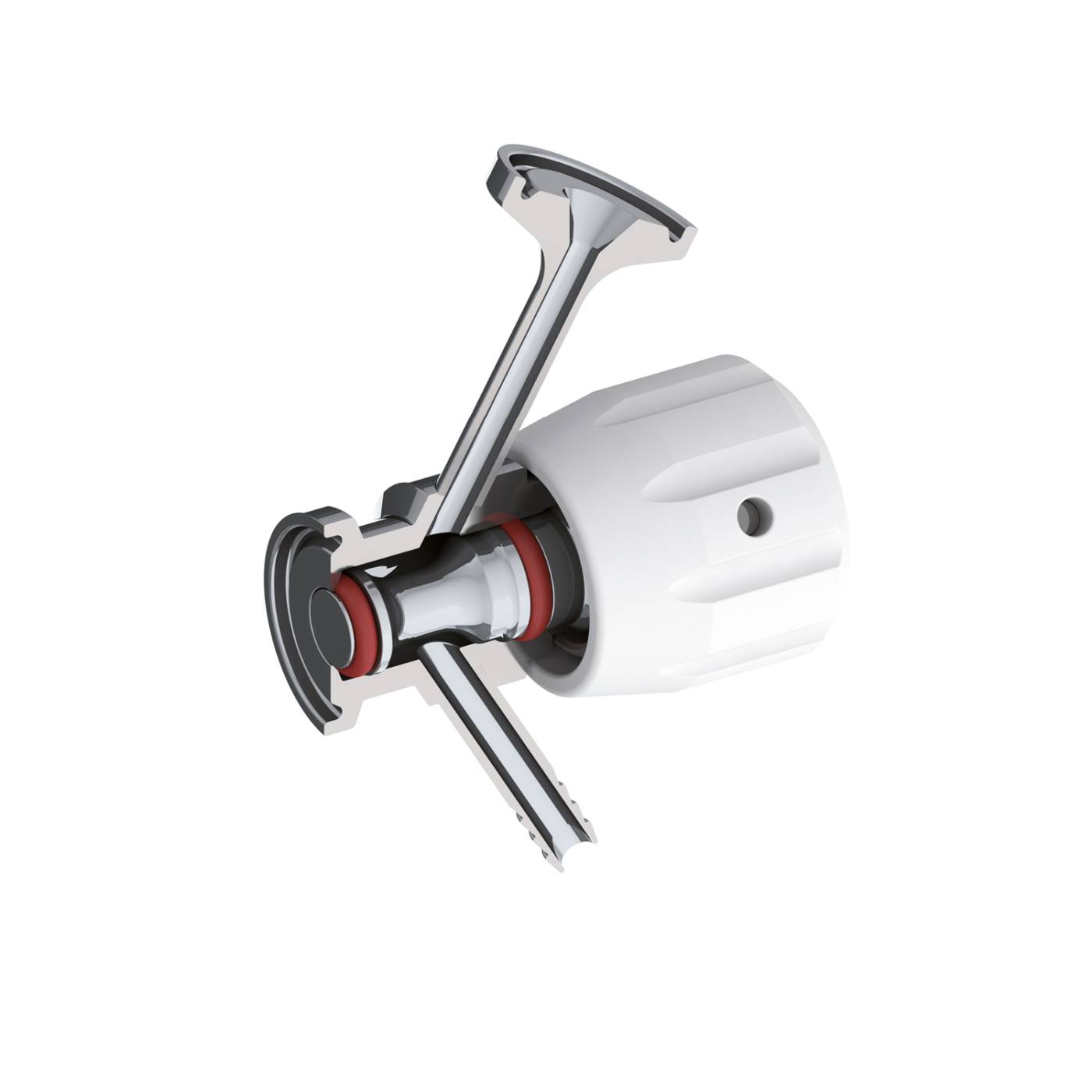

ART. 090/D 1 HOSE BARB OUTLET + 1 CIP TRI-CLAMP INLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Horizontal installation recommended

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø AL1L2Valve MaterialO-Rings MaterialCode
25,0061,5051,501.4404FPM/FKM090D6TC25V
EPDM090D6TC25EP
SILICONE FDA090D6TC25SIF
SILICONE USP 121090D6TC25SI121
34,0061,5051,501.4404FPM/FKM090D6TC34V
EPDM090D6TC34EP
SILICONE FDA090D6TC34SIF
SILICONE USP 121090D6TC34SI121
50,5068,0058,001.4404FPM/FKM090D6TC50V
EPDM090D6TC50EP
SILICONE FDA090D6TC50SIF
SILICONE USP 121090D6TC50SI121

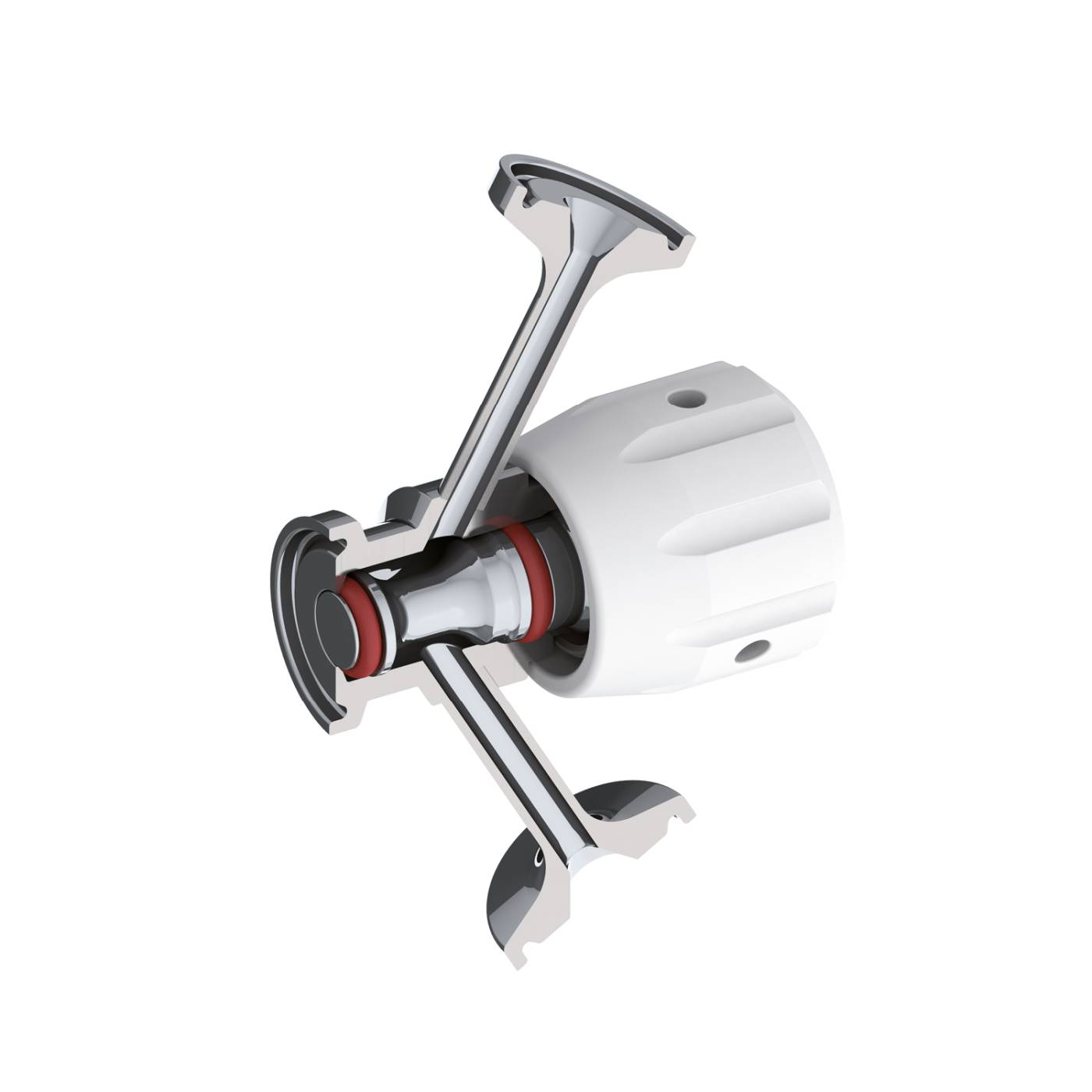

ART. 090/E 1 TRI-CLAMP + 1 CIP TRI-CLAMP INLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Horizontal installation recommended

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø ALValve MaterialO-Rings MaterialCode
25,0051,501.4404FPM/FKM090E6TC25V
EPDM090E6TC25EP
SILICONE FDA090E6TC25SIF
SILICONE USP 121090E6TC25SI121
34,0051,501.4404FPM/FKM090E6TC34V
EPDM090E6TC34EP
SILICONE FDA090E6TC34SIF
SILICONE USP 121090E6TC34SI121
50,5058,001.4404FPM/FKM090E6TC50V
EPDM090E6TC50EP
SILICONE FDA090E6TC50SIF
SILICONE USP 121090E6TC50SI121

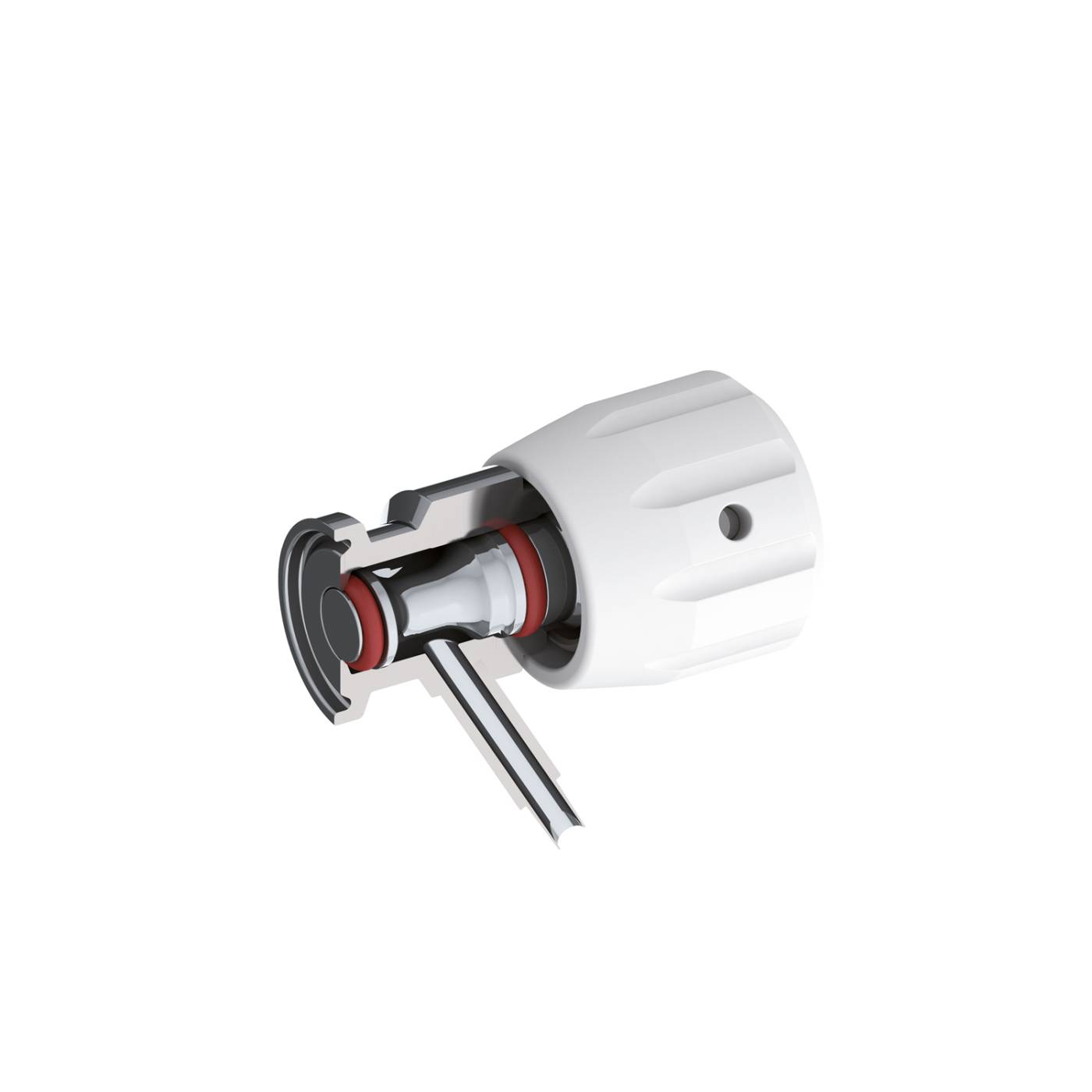

ART. 090/G 1 LUER OUTLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Horizontal installation recommended

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø ALValve MaterialO-Rings MaterialCode
25,0040,001.4404FPM/FKM090G6TC25V
EPDM090G6TC25EP
SILICONE FDA090G6TC25SIF
SILICONE USP 121090G6TC25SI121
34,0040,001.4404FPM/FKM090G6TC34V
EPDM090G6TC34EP
SILICONE FDA090G6TC34SIF
SILICONE USP 121090G6TC34SI121
50,5046,501.4404FPM/FKM090G6TC50V
EPDM090G6TC50EP
SILICONE FDA090G6TC50SIF
SILICONE USP 121090G6TC50SI121

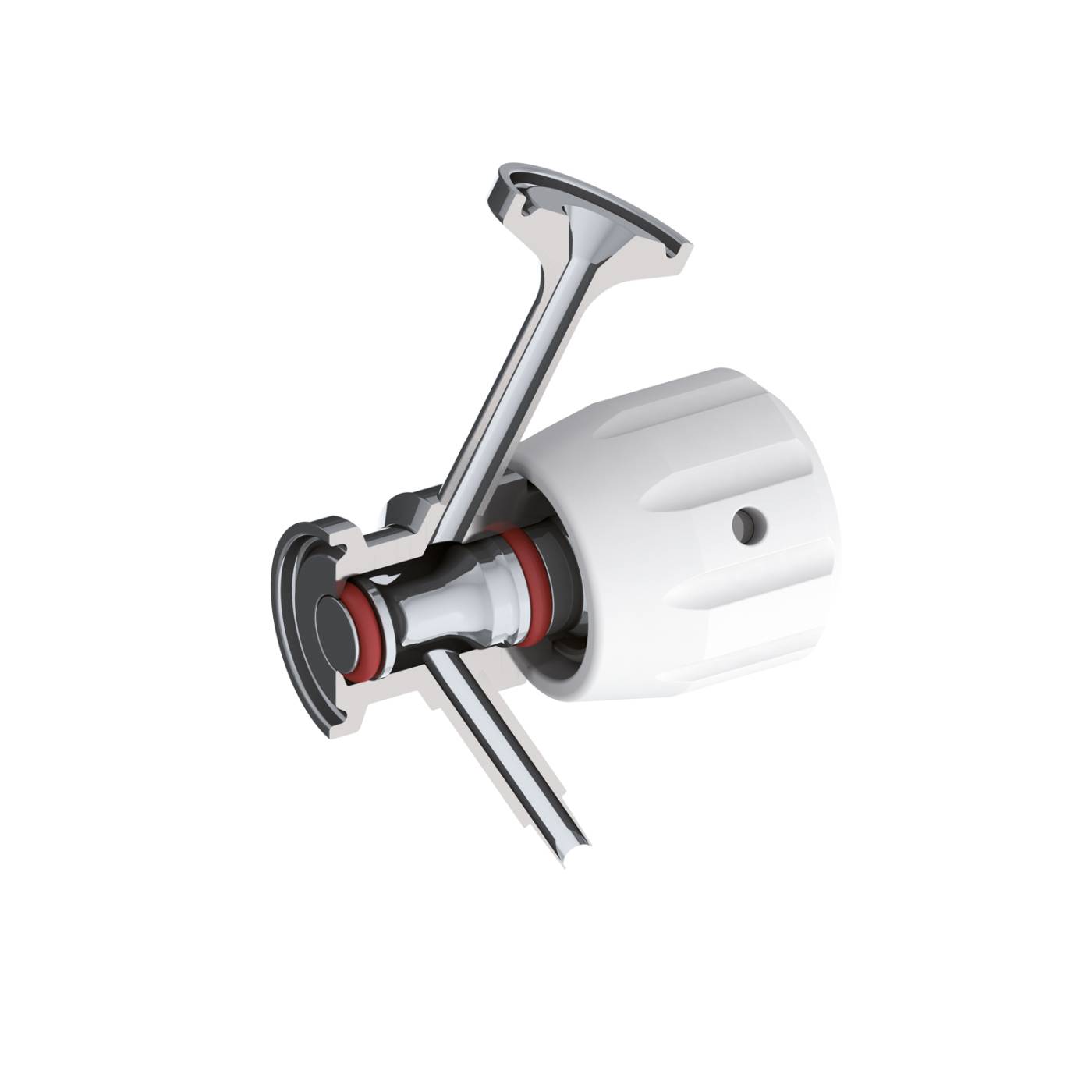

ART. 090/H 1 LUER OUTLET + 1 CIP TRI-CLAMP INLET

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø AL1L2Valve MaterialO-Rings MaterialCode
25,0040,0051,501.4404FPM/FKM090H6TC25V
EPDM090H6TC25EP
SILICONE FDA090H6TC25SIF
SILICONE USP 121090H6TC25SI121
34,0040,0051,501.4404FPM/FKM090H6TC34V
EPDM090H6TC34EP
SILICONE FDA090H6TC34SIF
SILICONE USP 121090H6TC34SI121
50,5046,5058,001.4404FPM/FKM090H6TC50V
EPDM090H6TC50EP
SILICONE FDA090H6TC50SIF
SILICONE USP 121090H6TC50SI121
