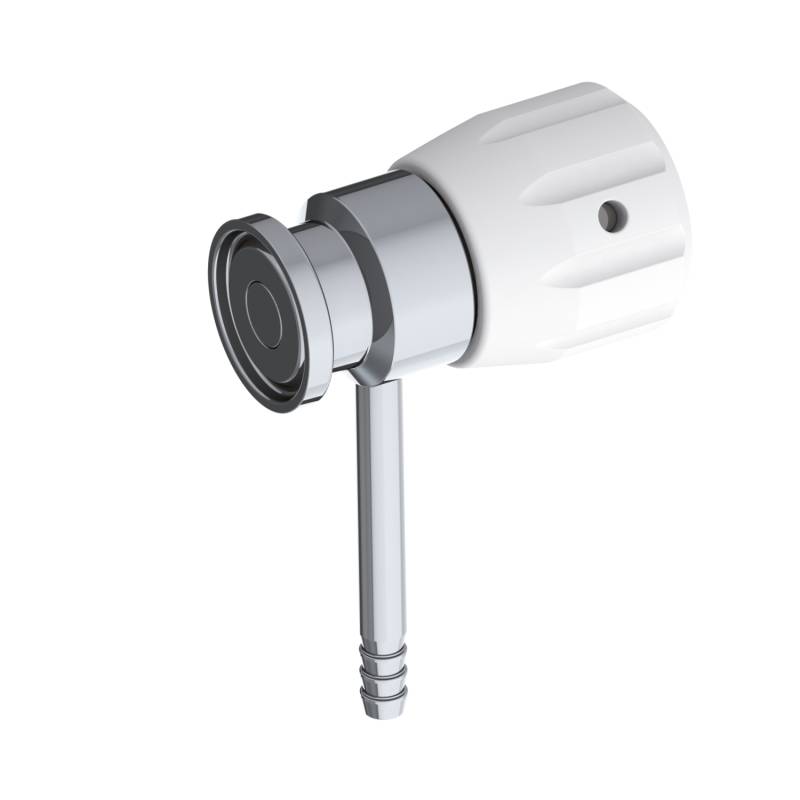

Side Sampling Valves

ART. 044
90° O-Ring
Sampling Valves

Technical sheet
044_rattiinox
Technical sheet

Characteristics: Designed for sampling of liquids on pharmaceutical, chemical, F&B and cosmetics products. O-Ring closing system.

Documentation: Laser marking for traceability and validation processes. Material 3.1 certificates, FDA or USP, internal surface finishing check as standard.

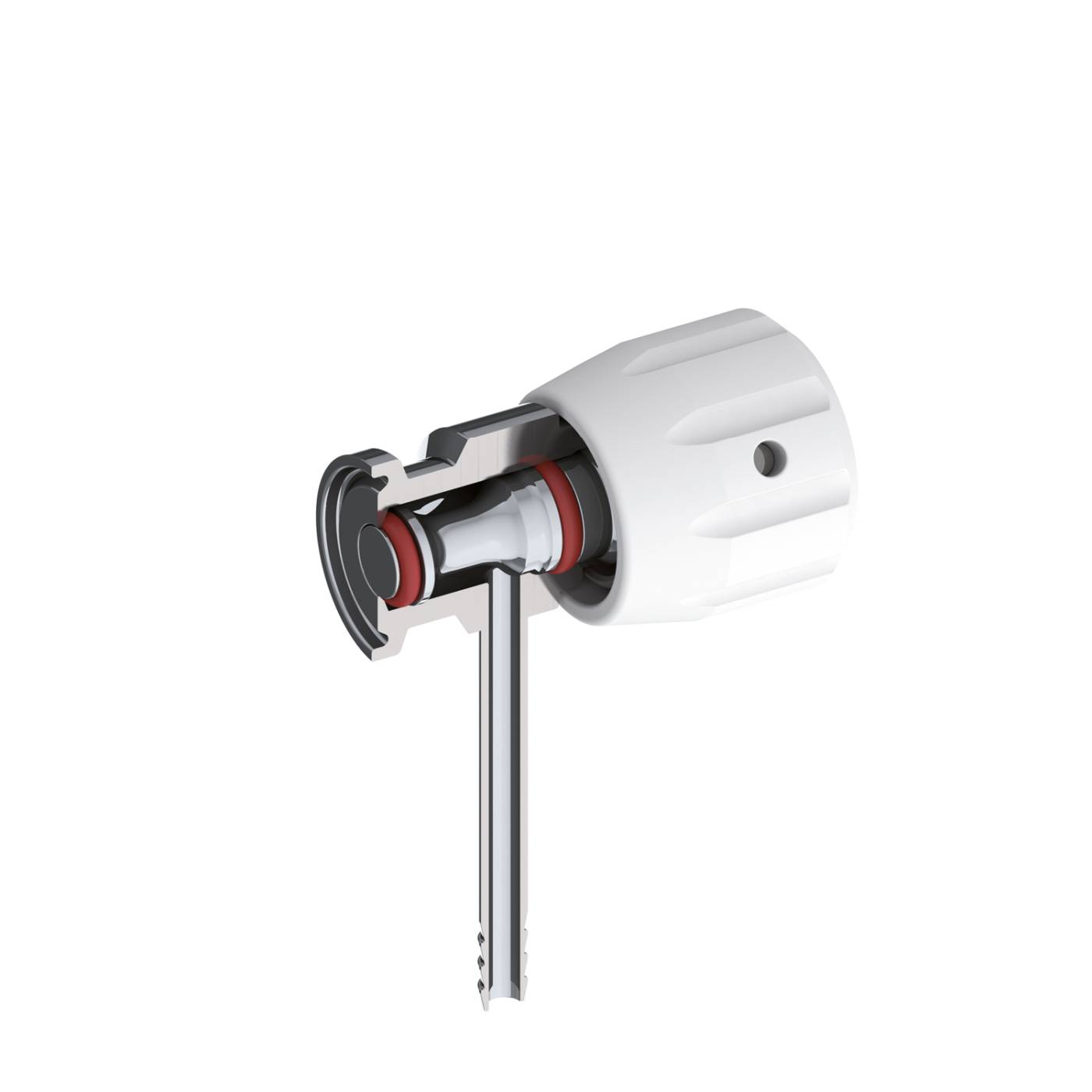

ART. 044/A 1 HOSE BARB OUTLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Horizontal installation recommended

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø ALValve MaterialO-Rings MaterialCode
25,0061,501.4404FPM/FKM044A6TC25V
EPDM044A6TC25EP
SILICONE FDA044A6TC25SIF
SILICONE USP 121044A6TC25SI121
34,0061,501.4404FPM/FKM044A6TC34V
EPDM044A6TC34EP
SILICONE FDA044A6TC34SIF
SILICONE USP 121044A6TC34SI121
50,5068,001.4404FPM/FKM044A6TC50V
EPDM044A6TC50EP
SILICONE FDA044A6TC50SIF
SILICONE USP 121044A6TC50SI121

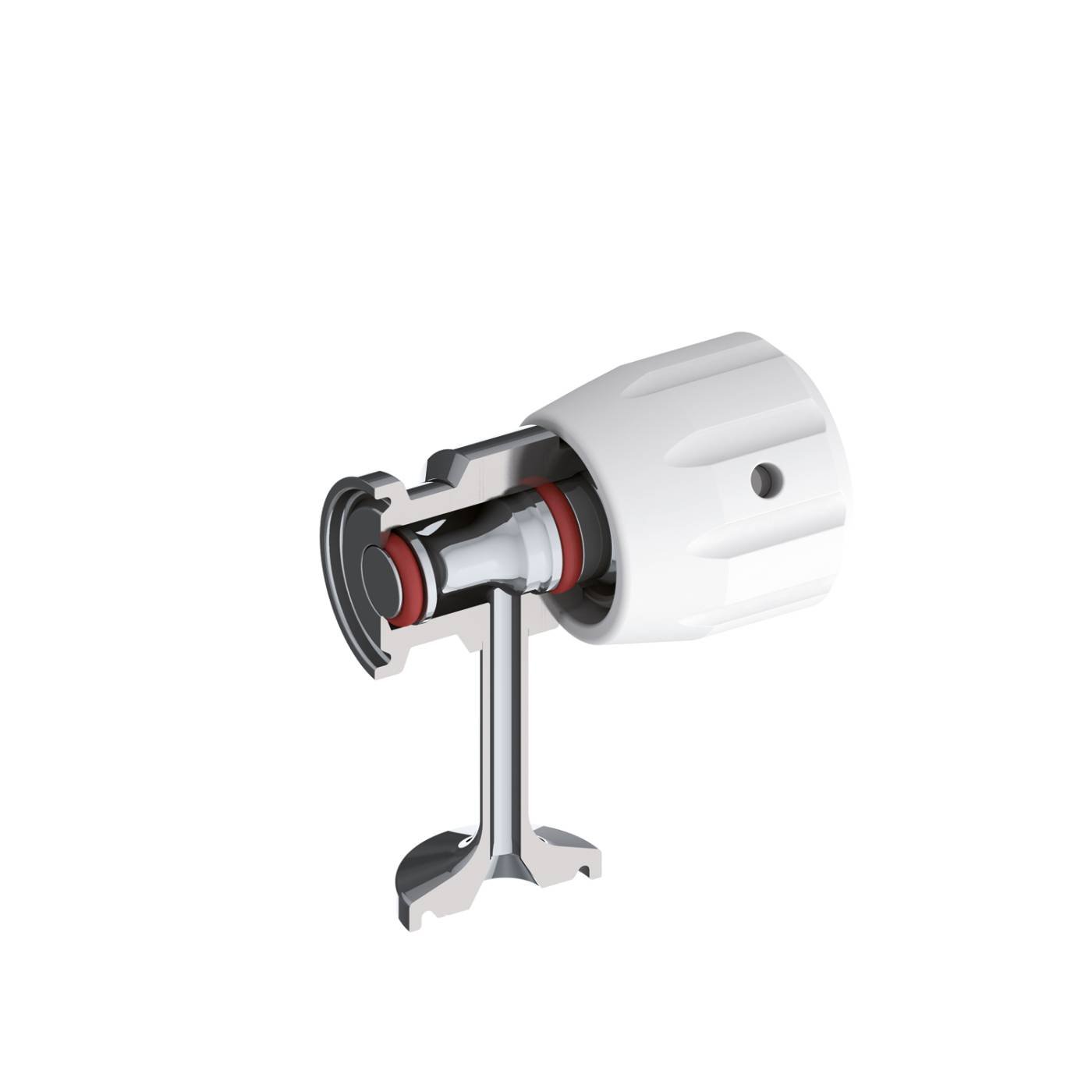

ART. 044/B TRI-CLAMP OUTLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Horizontal installation recommended

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø ALValve MaterialO-Rings MaterialCode
25,0051,501.4404FPM/FKM044B6TC25V
EPDM044B6TC25EP
SILICONE FDA044B6TC25SIF
SILICONE USP 121044B6TC25SI121
34,0051,501.4404FPM/FKM044B6TC34V
EPDM044B6TC34EP
SILICONE FDA044B6TC34SIF
SILICONE USP 121044B6TC34SI121
50,5058,001.4404FPM/FKM044B6TC50V
EPDM044B6TC50EP
SILICONE FDA044B6TC50SIF
SILICONE USP 121044B6TC50SI121

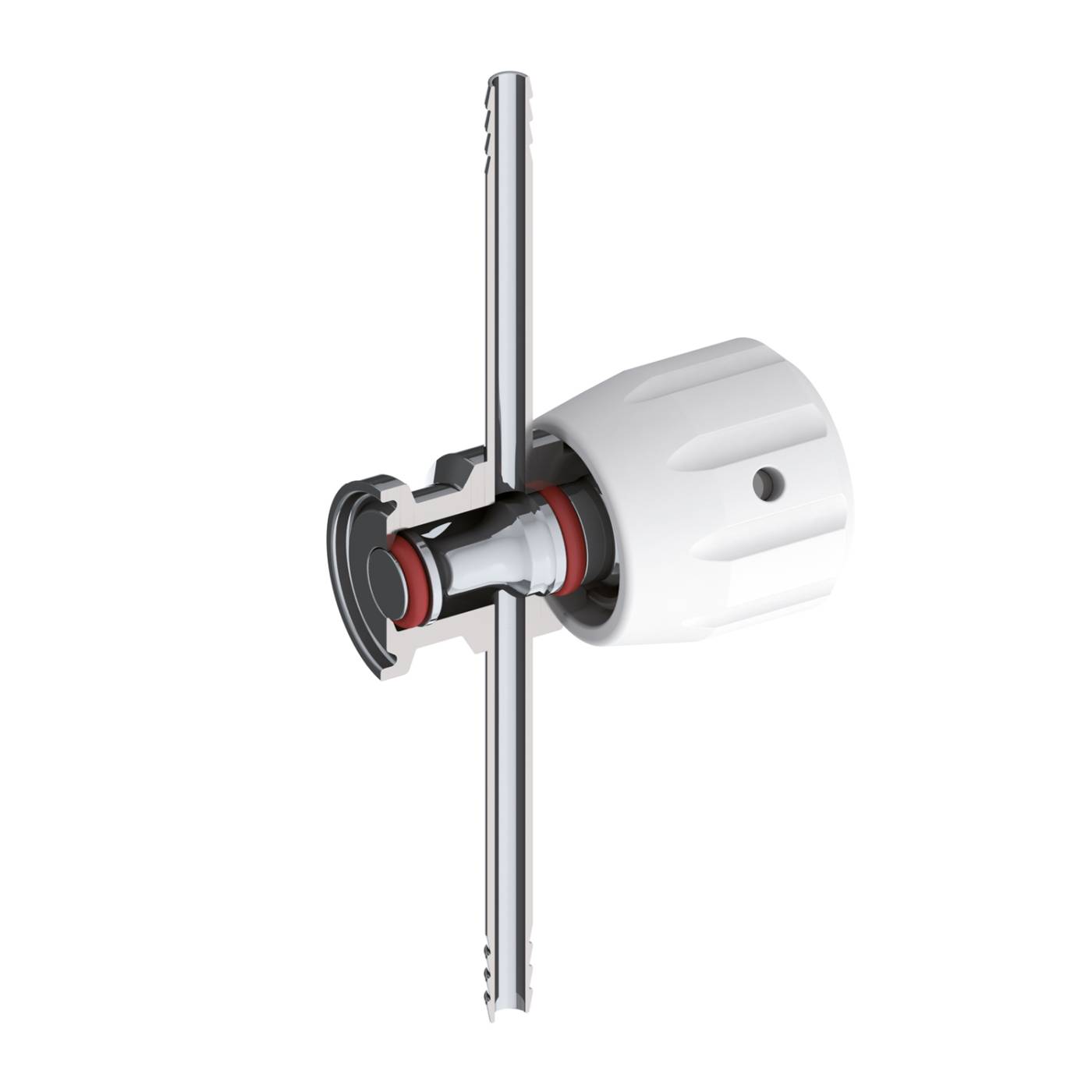

ART. 044/C 1 HOSE BARB OUTLET + 1 CIP HOSE BARB INLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Horizontal installation recommended

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø ALValve MaterialO-Rings MaterialCode
25,0061,501.4404FPM/FKM044C6TC25V
EPDM044C6TC25EP
SILICONE FDA044C6TC25SIF
SILICONE USP 121044C6TC25SI121
34,0061,501.4404FPM/FKM044C6TC34V
EPDM044C6TC34EP
SILICONE FDA044C6TC34SIF
SILICONE USP 121044C6TC34SI121
50,5068,001.4404FPM/FKM044C6TC50V
EPDM044C6TC50EP
SILICONE FDA044C6TC50SIF
SILICONE USP 121044C6TC50SI121

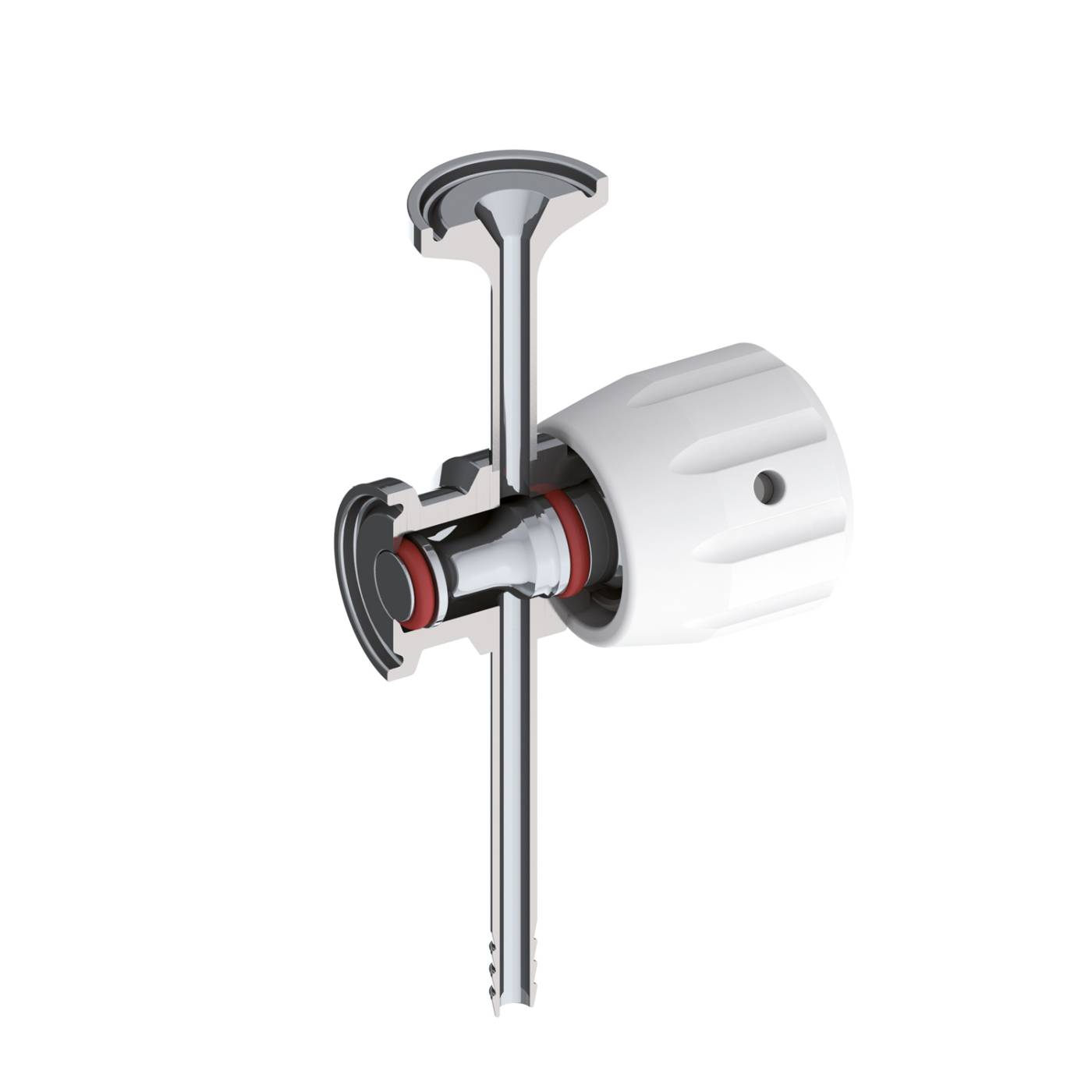

ART. 044/D 1 HOSE BARB OUTLET + 1 CIP TRI-CLAMP INLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Horizontal installation recommended

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø AL1L2Valve MaterialO-Rings MaterialCode
25,0061,5051,501.4404FPM/FKM044D6TC25V
EPDM044D6TC25EP
SILICONE FDA044D6TC25SIF
SILICONE USP 121044D6TC25SI121
34,0061,5051,501.4404FPM/FKM044D6TC34V
EPDM044D6TC34EP
SILICONE FDA044D6TC34SIF
SILICONE USP 121044D6TC34SI121
50,5068,0058,001.4404FPM/FKM044D6TC50V
EPDM044D6TC50EP
SILICONE FDA044D6TC50SIF
SILICONE USP 121044D6TC50SI121



ART. 044/E 1 TRI-CLAMP OUTLET + 1 CIP TRI-CLAMP INLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Horizontal installation recommended

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø ALValve MaterialO-Rings MaterialCode
25,0051,501.4404FPM/FKM044E6TC25V
EPDM044E6TC25EP
SILICONE FDA044E6TC25SIF
SILICONE USP 121044E6TC25SI121
34,0051,501.4404FPM/FKM044E6TC34V
EPDM044E6TC34EP
SILICONE FDA044E6TC34SIF
SILICONE USP 121044E6TC34SI121
50,5058,001.4404FPM/FKM044E6TC50V
EPDM044E6TC50EP
SILICONE FDA044E6TC50SIF
SILICONE USP 121044E6TC50SI121

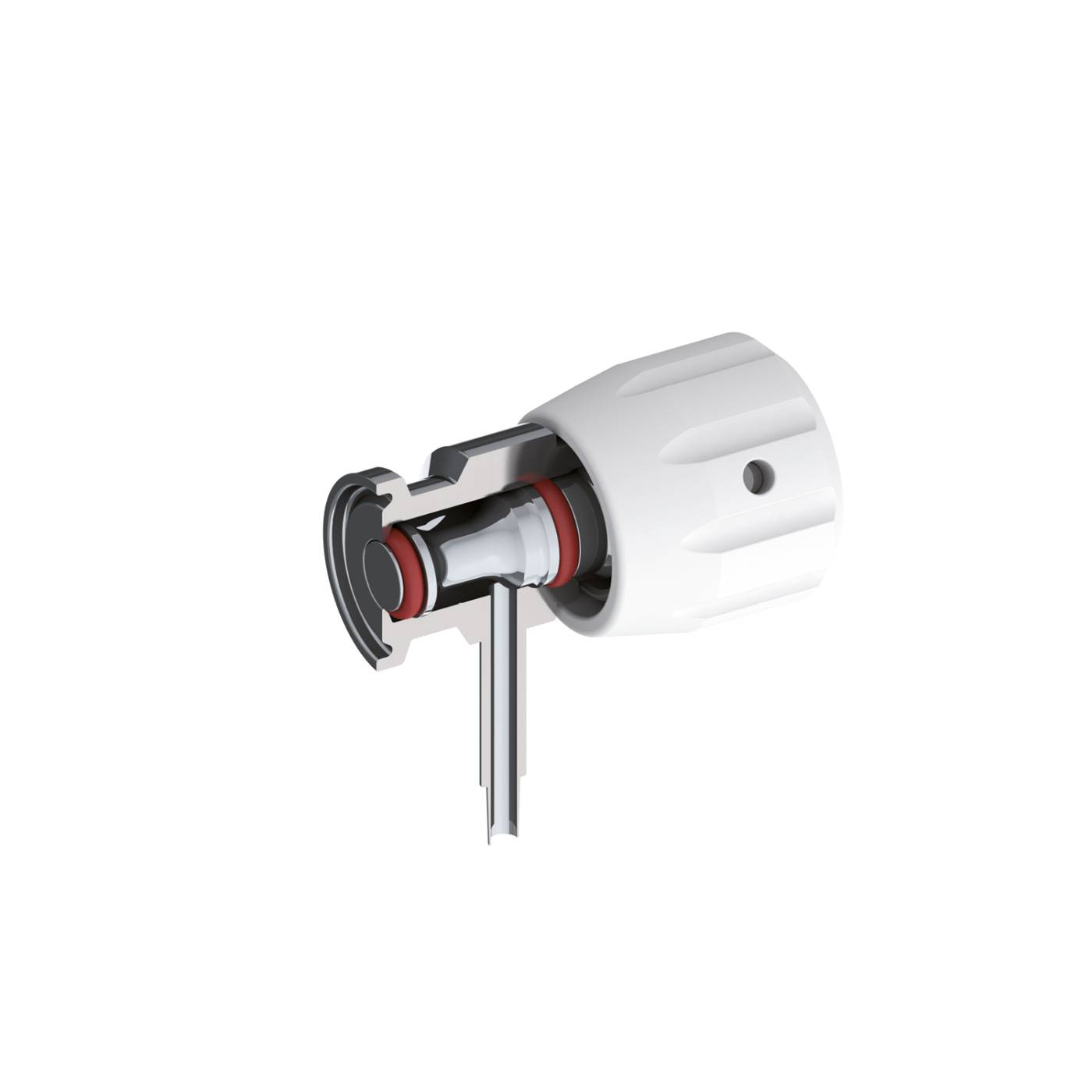

ART. 044/G 1 LUER OUTLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Horizontal installation recommended

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø ALValve MaterialO-Rings MaterialCode
25,0046,501.4404FPM/FKM044G6TC25V
EPDM044G6TC25EP
SILICONE FDA044G6TC25SIF
SILICONE USP 121044G6TC25SI121
34,0046,501.4404FPM/FKM044G6TC34V
EPDM044G6TC34EP
SILICONE FDA044G6TC34SIF
SILICONE USP 121044G6TC34SI121
50,5046,501.4404FPM/FKM044G6TC50V
EPDM044G6TC50EP
SILICONE FDA044G6TC50SIF
SILICONE USP 121044G6TC50SI121



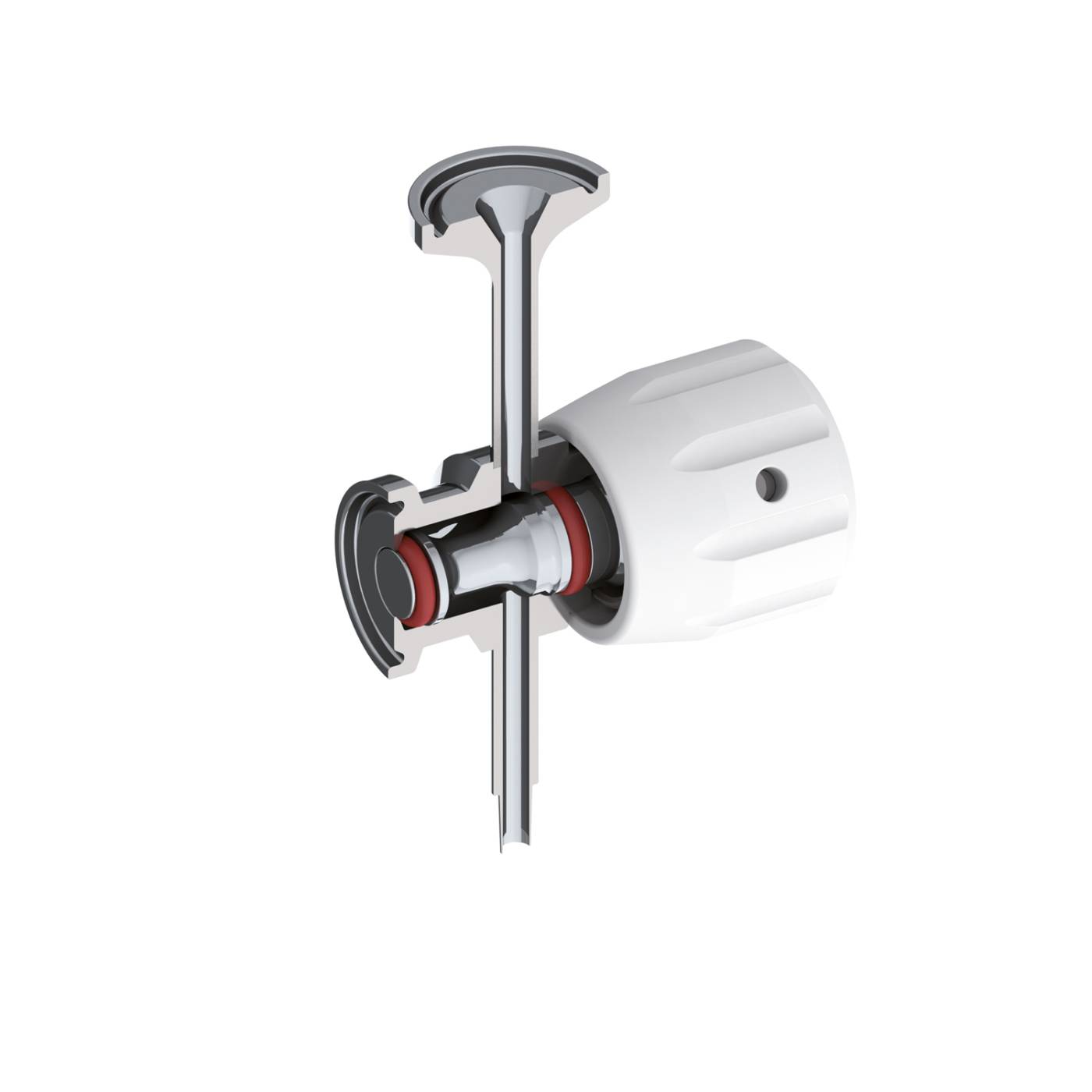

ART. 044/H 1 LUER OUTLET + 1 CIP TRI-CLAMP INLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Horizontal installation recommended

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø AL1L2Valve MaterialO-Rings MaterialCode
25,0046,5051,501.4404FPM/FKM044H6TC25V
EPDM044H6TC25EP
SILICONE FDA044H6TC25SIF
SILICONE USP 121044H6TC25SI121
34,0046,5051,501.4404FPM/FKM044H6TC34V
EPDM044H6TC34EP
SILICONE FDA044H6TC34SIF
SILICONE USP 121044H6TC34SI121
50,5046,5058,001.4404FPM/FKM044H6TC50V
EPDM044H6TC50EP
SILICONE FDA044H6TC50SIF
SILICONE USP 121044H6TC50SI121
