Int. finishing: Ra ≤ 1,2 µm
Ext. finishing: Ra ≤ 1,6 µm mirror polished
Max Working Conditions: 6 bar (87 psi) and 150°C (300°F)
Installation: Vertical installation recommended

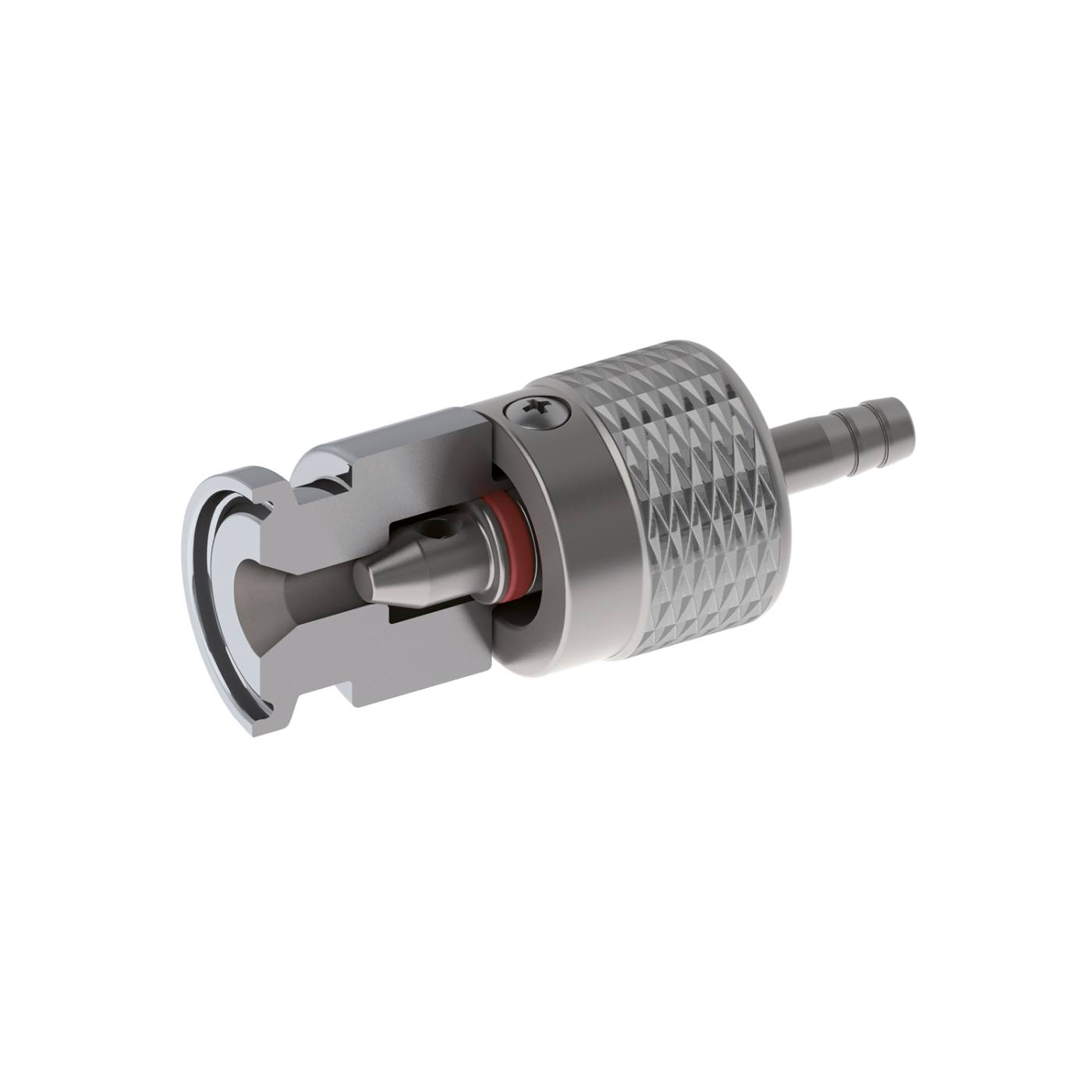

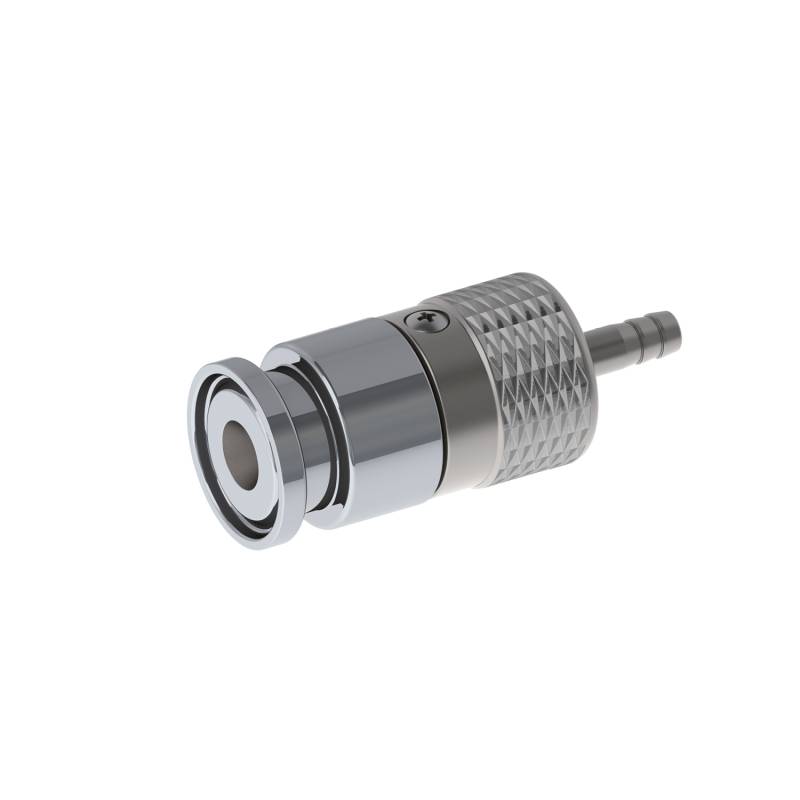

ART. 041 ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
| Size | A | Ø B | L | Valve Material | O-Ring Material | Code |
|---|---|---|---|---|---|---|
| 1/2” | 17,00 | 6,00 | 66,00 | 1.4404 | FPM/FKM | 041Z60050V |
| EPDM | 041Z60050EP | |||||
| SILICONE FDA | 041Z60050SIF | |||||
| 3/4” | 17,00 | 6,00 | 66,00 | 1.4404 | FPM/FKM | 041Z60075V |
| EPDM | 041Z60075EP | |||||
| SILICONE FDA | 041Z60075SIF |
