Int. finishing: Ra ≤ 1,2 µm
Ext. finishing: Ra ≤ 1,6 µm mirror polished
Max Working Conditions: 6 bar (87 psi) and 150°C (300°F)
Installation: Vertical installation recommended

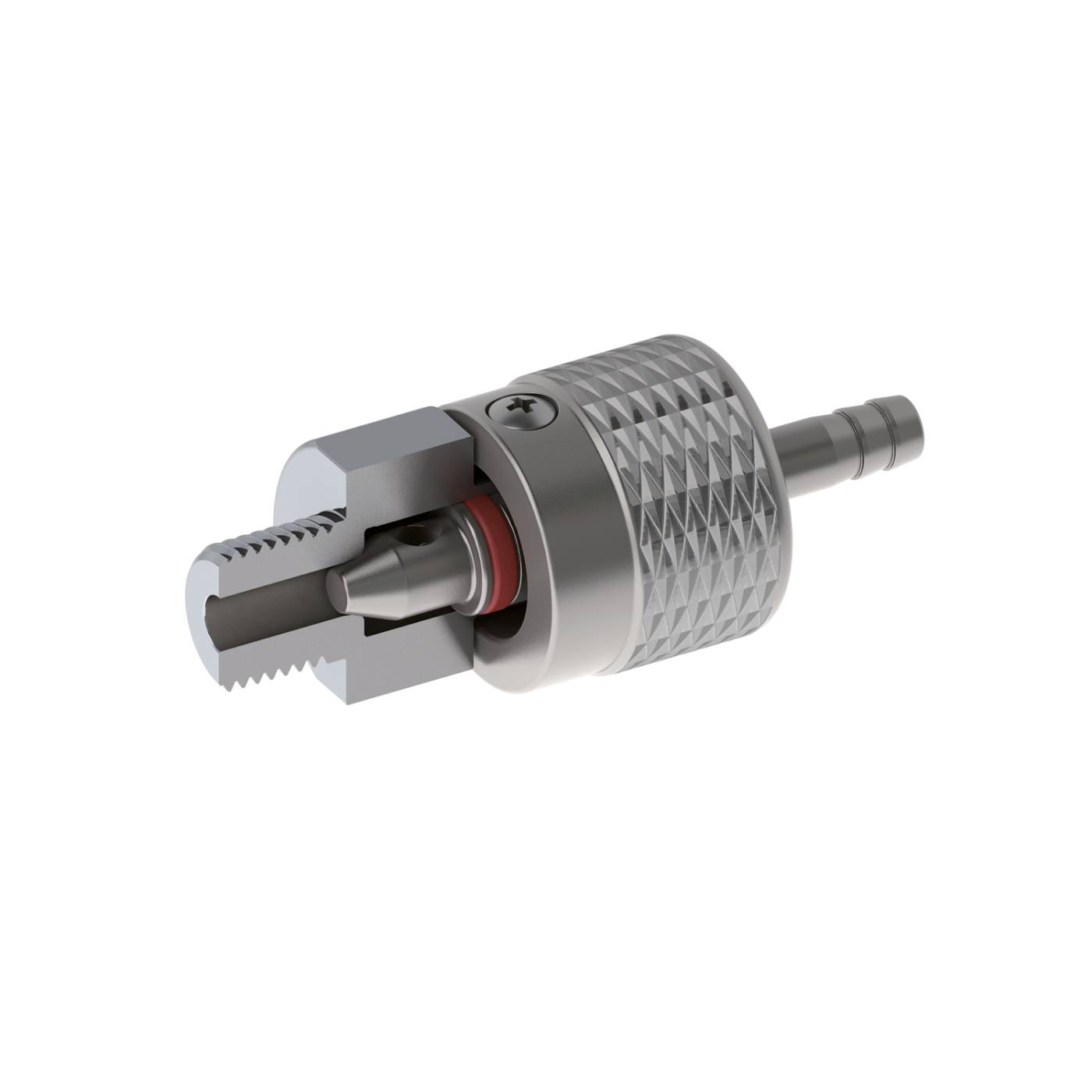

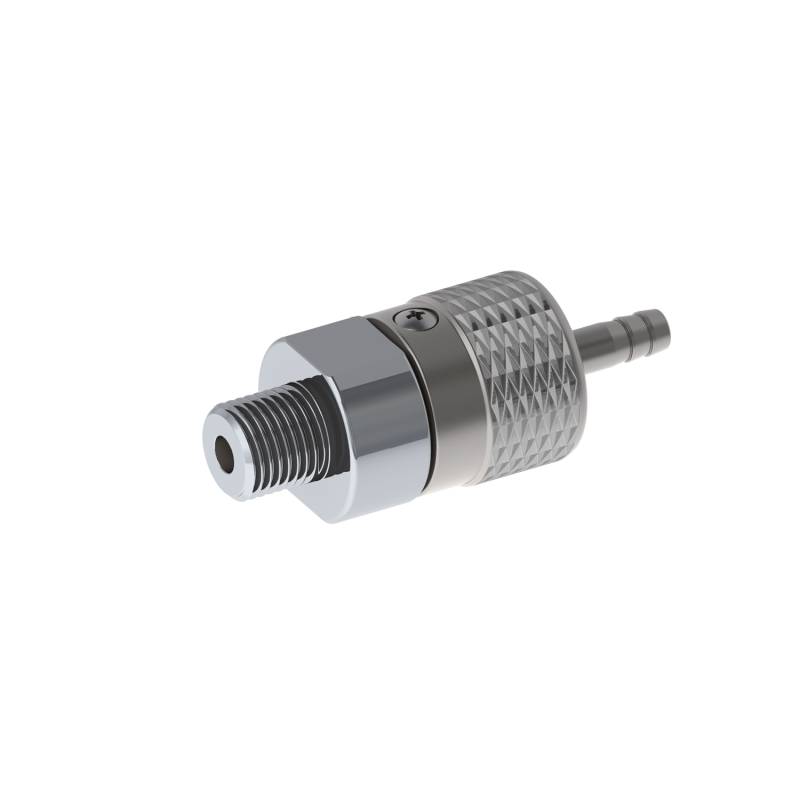

ART. 033 Male Gas Threaded
| Size | A | Ø B | L | Valve Material | O-Ring Material | Code |
|---|---|---|---|---|---|---|
| 1/4” | 17,00 | 6,00 | 54,00 | 1.4404 | FPM/FKM | 033Z60025V |
| EPDM | 033Z60025EP | |||||
| SILICONE FDA | 033Z60025SIF |
