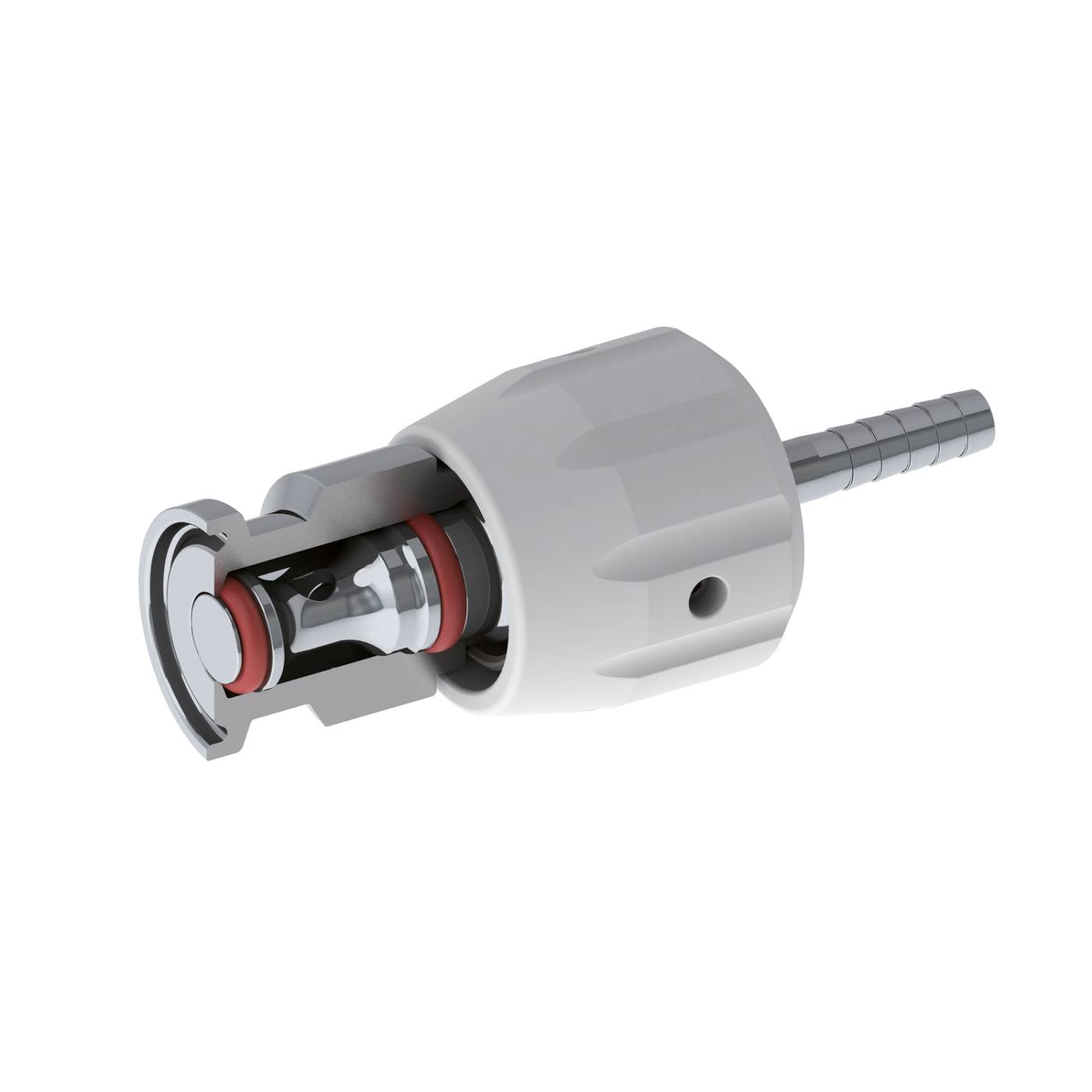

ART. 045/A 1 HOSE BARB OUTLET
Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Vertical installation recommended
ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
| Ø A | L | Valve Material | O-Rings Material | Code |
|---|---|---|---|---|
| 25,00 | 80,00 | 1.4404 | FPM/FKM | 045A6TC25V |
| EPDM | 045A6TC25EP | |||
| SILICONE FDA | 045A6TC25SIF | |||
| SILICONE USP 121 | 045A6TC25SI121 | |||
| 34,00 | 80,00 | 1.4404 | FPM/FKM | 045A6TC34V |
| EPDM | 045A6TC34EP | |||
| SILICONE FDA | 045A6TC34SIF | |||
| SILICONE USP 121 | 045A6TC34SI121 | |||
| 50,50 | 80,00 | 1.4404 | FPM/FKM | 045A6TC50V |
| EPDM | 045A6TC50EP | |||
| SILICONE FDA | 045A6TC50SIF | |||
| SILICONE USP 121 | 045A6TC50SI121 |

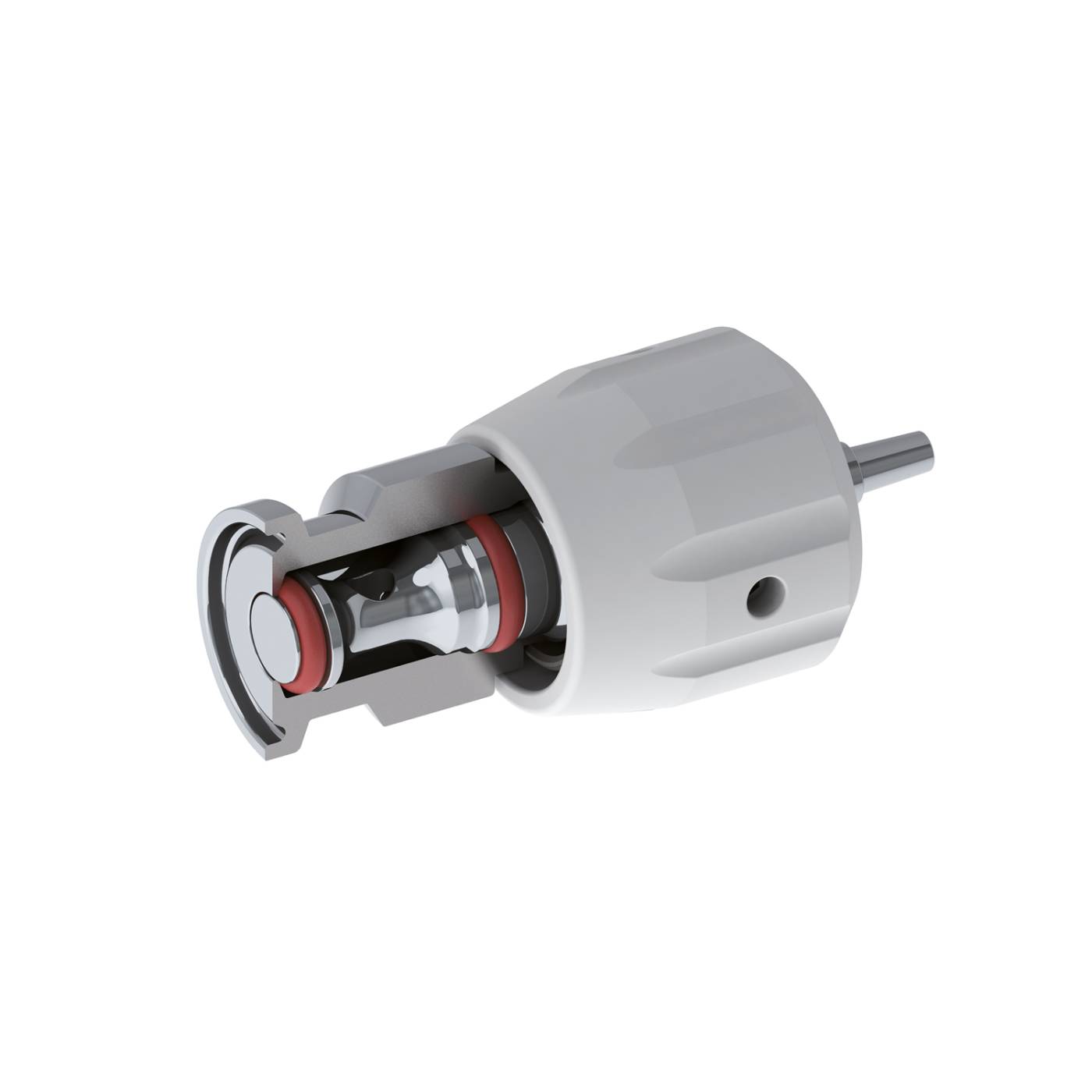

ART. 045/G 1 LUER OUTLET
Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Vertical installation recommended
ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
| Ø A | L | Valve Material | O-Rings Material | Code |
|---|---|---|---|---|
| 25,00 | 68,00 | 1.4404 | FPM/FKM | 045G6TC25V |
| EPDM | 045G6TC25EP | |||
| SILICONE FDA | 045G6TC25SIF | |||
| SILICONE USP 121 | 045G6TC25SI121 | |||
| 34,00 | 68,00 | 1.4404 | FPM/FKM | 045G6TC34V |
| EPDM | 045G6TC34EP | |||
| SILICONE FDA | 045G6TC34SIF | |||
| SILICONE USP 121 | 045G6TC34SI121 | |||
| 50,50 | 68,00 | 1.4404 | FPM/FKM | 045G6TC50V |
| EPDM | 045G6TC50EP | |||
| SILICONE FDA | 045G6TC50SIF | |||
| SILICONE USP 121 | 045G6TC50SI121 |
