Int. finishing: Ra ≤ 1,2 µm
Ext. finishing: Ra ≤ 1,6 µm mirror polished
Max Working Conditions: 6 bar (87 psi) and 150°C (300°F)
Installation: Horizontal installation recommended

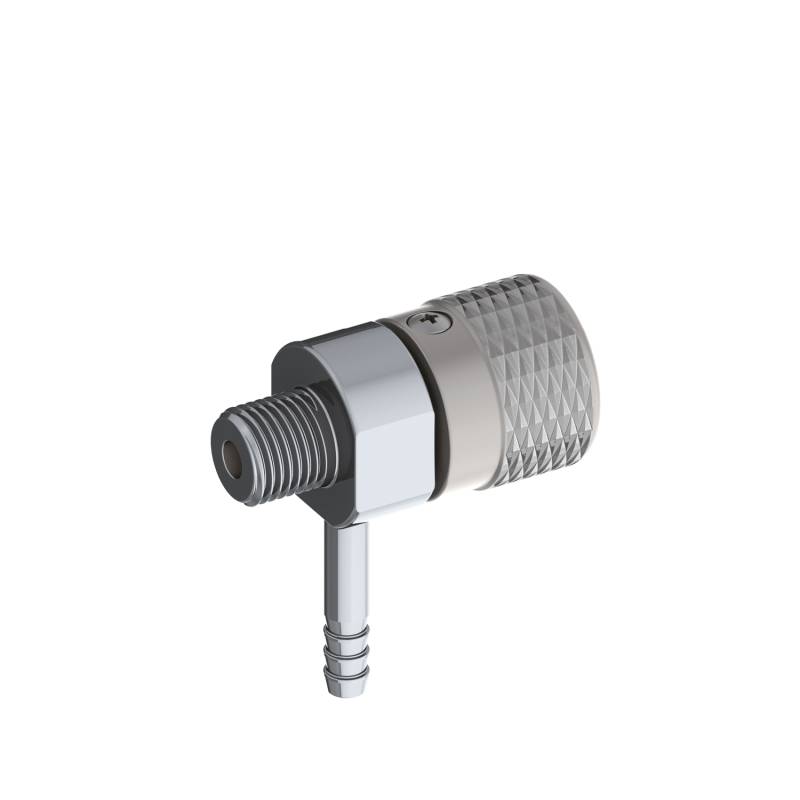

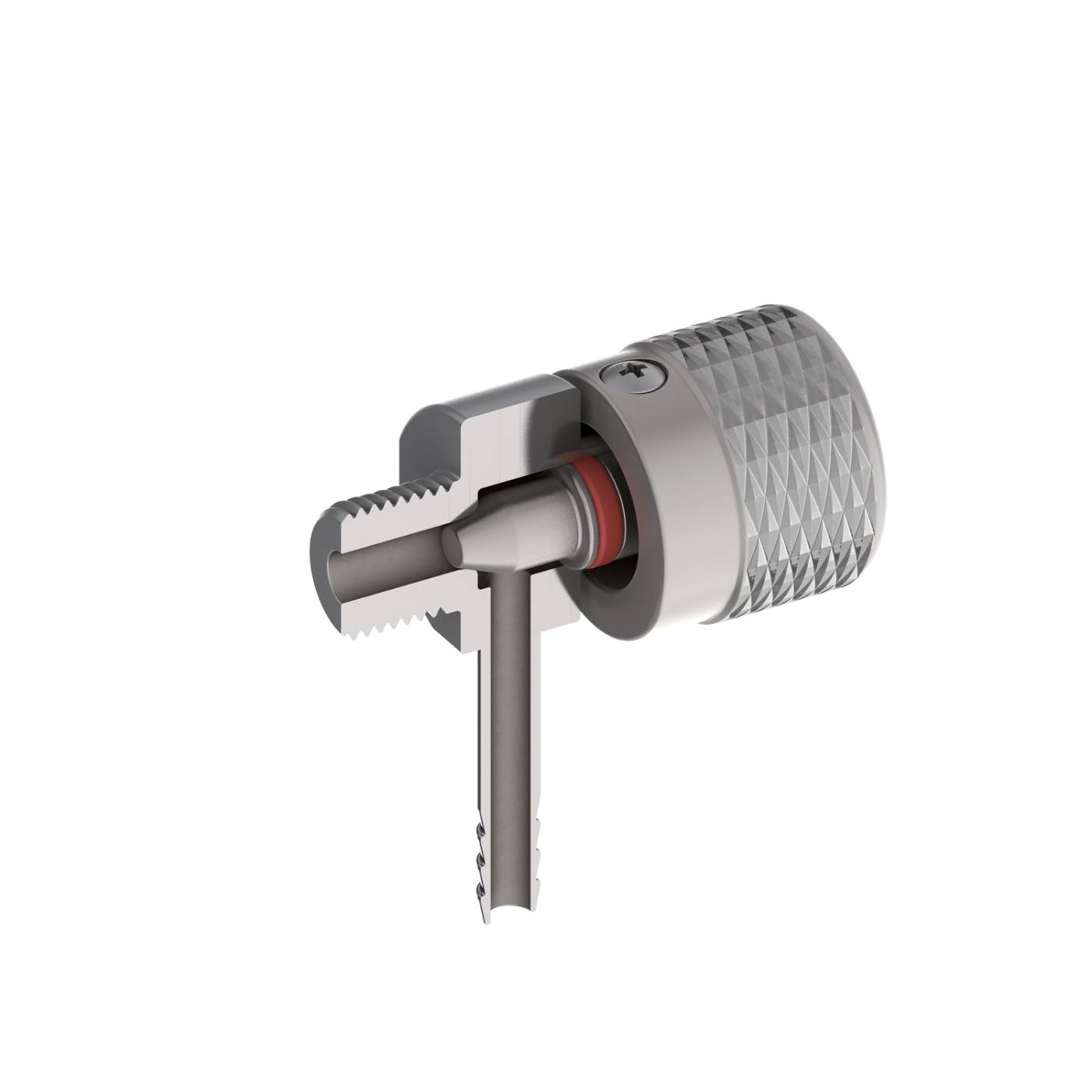

ART. 022 90° Needle Sampling Valves - Gas Threaded
| Size | Ø B | L | Valve Material | O-Ring Material | Code |
|---|---|---|---|---|---|
| 1/4” | 6,00 | 38,00 | 1.4404 | FPM/FKM | 022Z60025V |
| EPDM | 022Z60025EP | ||||
| SILICONE FDA | 022Z60025SIF |
