Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm mirror polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Horizontal installation recommended

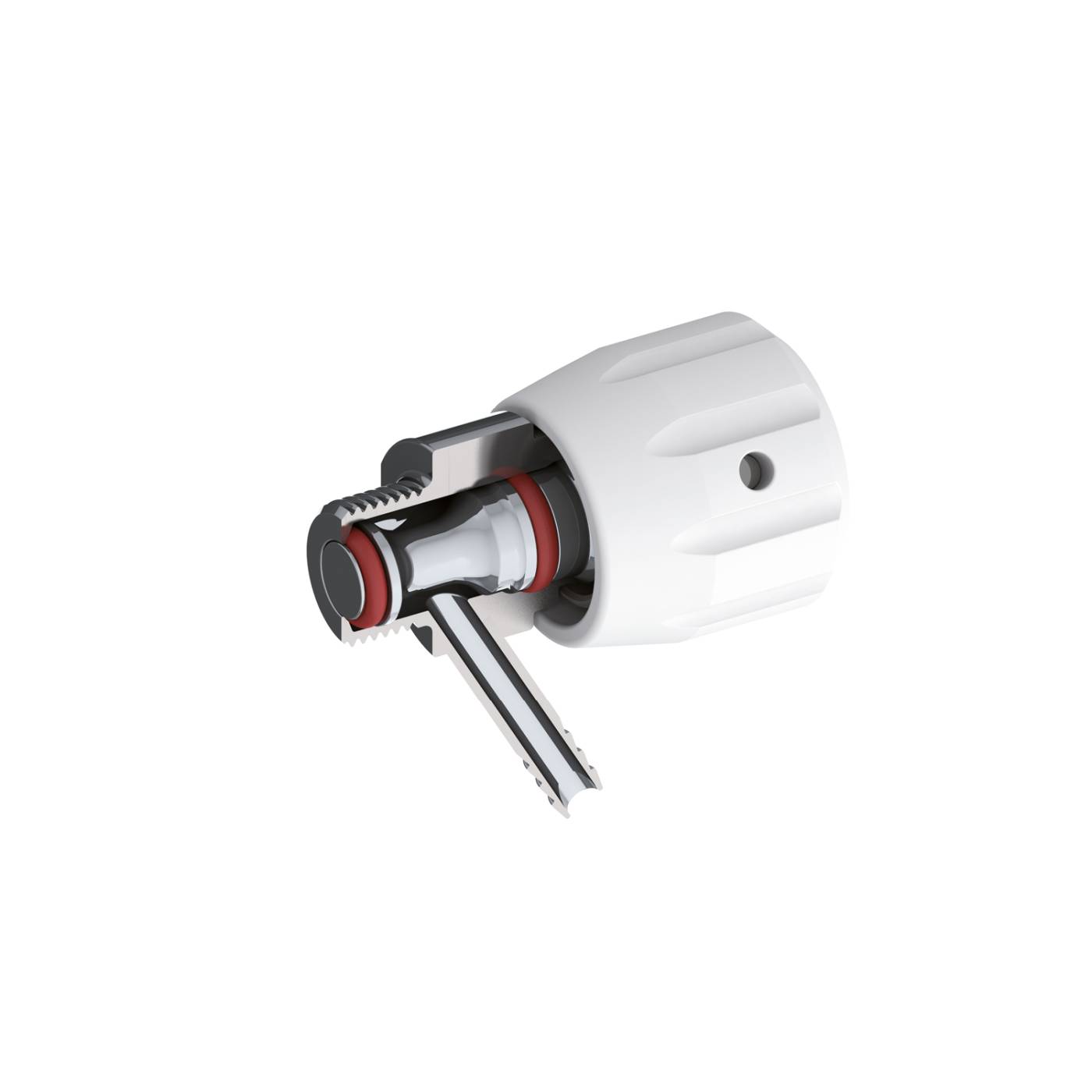

ART. 390/A 1 Hose Barb Outlet
Ø A | L | Valve Material | O-Ring Material | Code |
---|---|---|---|---|
3/8” | 61,50 | 1.4404 | FPM/FKM | 390A6BSPP37V |
EPDM | 390A6BSPP37EP | |||
SILICONE FDA | 390A6BSPP37SIF | |||
SILICONE USP 121 | 390A6BSPP37SI121 |

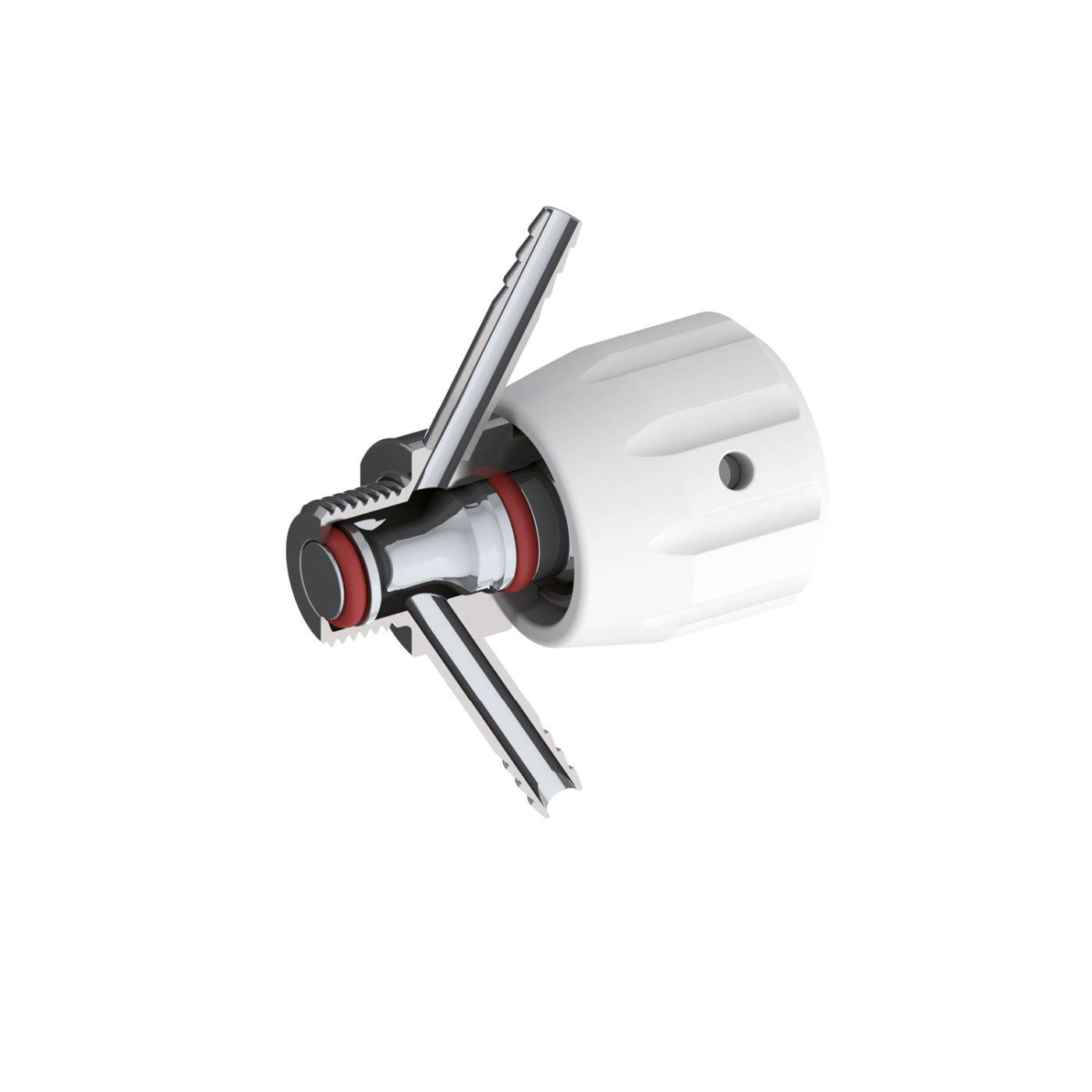

ART. 390/C 1 Hose Barb Outlet + 1 CIP Hose Barb Inlet
Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm mirror polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Horizontal installation recommended
Ø A | L | Valve Material | O-Ring Material | Code |
---|---|---|---|---|
3/8” | 61,50 | 1.4404 | FPM/FKM | 390C6BSPP37V |
EPDM | 390C6BSPP37EP | |||
SILICONE FDA | 390C6BSPP37SIF | |||
SILICONE USP 121 | 390C6BSPP37SI121 |
