F 180
Flow Through 180
Valve 25 Tang. on Pipe

Technical sheet

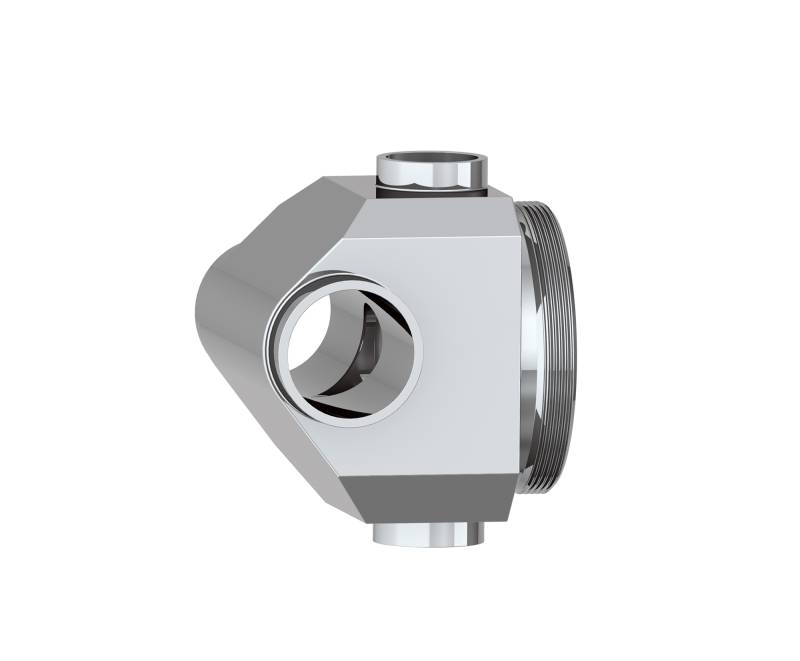

F180_CAD_rattiinox
Technical sheet

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

YL## - FTCI - Tangential Flow Through on Pipe Valves for SAFE areas designed to feed or take off fluids or gases from the process piping with Zero dead leg. Valve inlet is tangential on pipe allowing full  drainability of the pipeline on the horizontal valve assembly. Body shape and their internal design offer a very reliable component for Aseptic Processing Application. Standard version are short butt weld ends but, on demand, may be delivered for orbital welding or with Tri-Clamp connections.

AB mm
(inch)
C mm
(inch)
D mm
(inch)
E mm
(inch)
F mm
(inch)
G mm
(inch)
Tube 1* mm
(inch)
Tube 2* mm
(inch)
Code
M70x153,50
(2,11)
30,50
(1,20)
5,00
(0,20)
8,00
(0,32)
94,00
(3,70)
40,50
(1,60)
25,40x1,65
(1,00x0,065)
38,10x1,65
(1,50x0,065)
YL38-FTCI-0000-A2500
M70x159,50
(2,34)
37,00
(1,46)
5,00
(0,20)
8,00
(0,32)
94,00
(3,70)
31,50
(1,24)
25,40x1,65
(1,00x0,065)
50,80x1,65
(2,00x0,065)
YL50-FTCI-0000-A2500
M70x166,00
(2,60)
43,50
(1,71)
5,00
(0,20)
8,00
(0,32)
94,00
(3,70)
37,50
(1,48)
25,40x1,65
(1,00x0,065)
63,50x1,65
(2,50x0,065)
YL63-FTCI-0000-A2500
M70x172,50
(2,85)
50,005,00
(0,20)
8,00
(0,32)
94,00
(3,70)
44,00
(1,73)
25,40x1,65
(1,00x0,065)
76,20x1,65
(3,00x0,065)
YL76-FTCI-0000-A2500
M70x194,50
(3,72)
62,505,00
(0,20)
8,00
(0,32)
94,00
(3,70)
57,00
(2,24)
25,40x1,65
(1,00x0,065)
101,60x2,11
(4,00x0,083)
YL00-FTCI-0000-A2500

(*) US Tube ASTM® A269/270 – ASME BPE

Assembly images

Horizontal Assembly

F180_CAD-h-assembly
