F 140
Coaxial Flow Through 180
Valve 19 on Pipe

Technical sheet

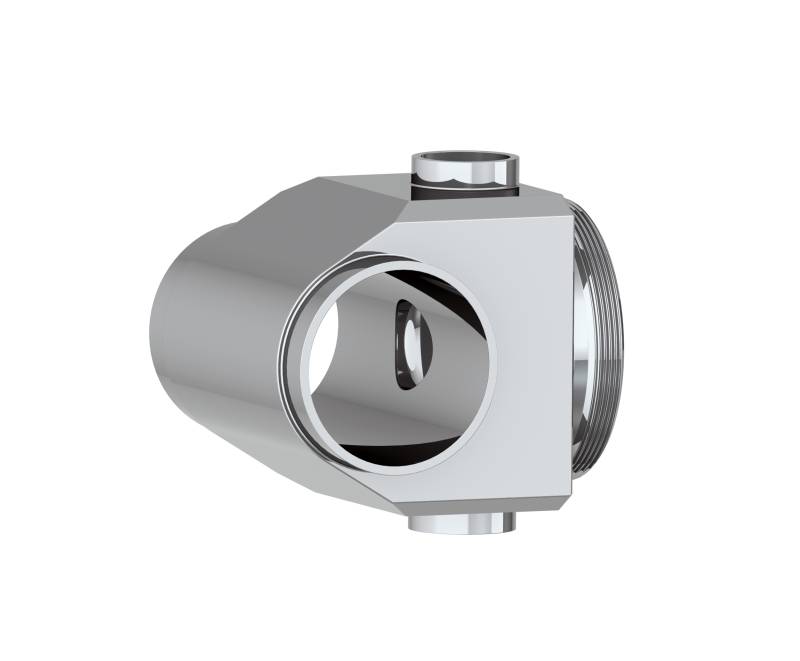

F140_CAD_rattiinox
Technical sheet

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

YT## - FTCI - Coaxial Flow Through on Pipe Valves for SAFE areas designed to feed or take off fluids or gases from the process piping with Zero dead leg. Body shape with flush flow seal on pipe and their internal design offer a very reliable component for Aseptic Processing Application. Standard version are short butt weld ends but, on demand, may be delivered for orbital welding or with Tri-Clamp connections.

AB mm
(inch)
C mm
(inch)
D mm
(inch)
E mm
(inch)
F mm
(inch)
Tube 1* mm
(inch)
Tube 2* mm
(inch)
Code
M50x133,00
(1,30)
17,50
(0,69)
5,00
(0,20)
8,00
(0,32)
66,00
(2,60)
19,50x1,65
(0,75x0,065)
19,50x1,65
(0,75x0,065)
YP19-FTCI-0000-A1900
M50x133,00
(1,30)
21,00
(0,83)
5,00
(0,20)
8,00
(0,32)
66,00
(2,60)
19,50x1,65
(0,75x0,065)
25,40x1,65
(1,00x0,065)
YP25-FTCI-0000-A1900
M50x133,00
(1,30)
27,00
(1,06)
5,00
(0,20)
8,00
(0,32)
66,00
(2,60)
19,50x1,65
(0,75x0,065)
38,10x1,65
(1,50x0,065)
YP38-FTCI-0000-A1900
M50x133,00
(1,30)
33,50
(1,32)
5,00
(0,20)
8,00
(0,32)
66,00
(2,60)
19,50x1,65
(0,75x0,065)
50,80x1,65
(2,00x0,065)
YP50-FTCI-0000-A1900
M50x138,00
(1,30)
40,00
(1,58)
5,00
(0,20)
8,00
(0,32)
66,00
(2,60)
19,50x1,65
(0,75x0,065)
63,50x1,65
(2,50x0,065)
YP63-FTCI-0000-A1900
M50x144,00
(1,73)
46,00
(1,81)
5,00
(0,20)
8,00
(0,32)
66,00
(2,60)
19,50x1,65
(0,75x0,065)
76,20x1,65
(3,00x0,065)
YP76-FTCI-0000-A1900

(*) US Tube ASTM® A269/270 – ASME BPE

Assembly images

Horizontal Assembly

F140_CAD-h-assembly

Vertical Assembly

F140_CAD-v-assembly

Upside-Down Assembly

F140_CAD-u-assembly
