F 110
Tangential Shut Off 90
Valve 19 on Pipe + Sip Valve 12

Technical sheet

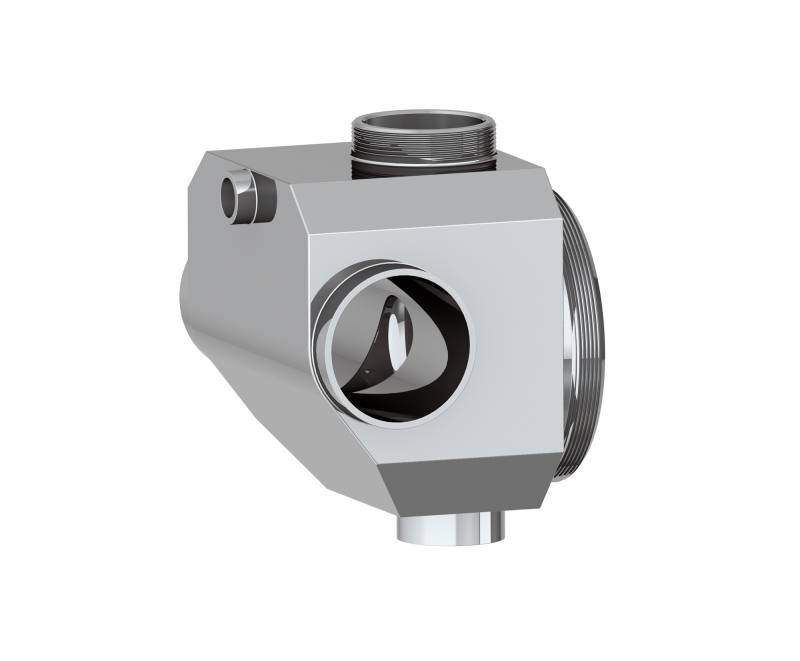

F110_CAD_rattiinox
Technical sheet

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

YH## - SOCL - SOCL - Tangential Shut Off on Pipe Valves + SIP Valve for SAFE areas designed to feed or take off fluids or gases from the process piping with Zero dead leg. Valve inlet is tangential allowing full drainability of the pipeline through the horizontal valve assembly. The satellite valve may be used for CIP-SIP process of the Valve on Pipe body and the their downstream pipeline. Body shape and their internal design offer a very reliable component for Aseptic Processing Application. Standard version are short butt weld ends but, on demand, may be delivered for orbital welding or with Tri-Clamp connections.

A 1A 2B mm
(inch)
C mm
(inch)
D1 mm
(inch)
D2 mm
(inch)
E mm
(inch)
F mm
(inch)
G mm
(inch)
H mm
(inch)
Tube 1* mm
(inch)
Tube 2* mm
(inch)
Tube 3* mm
(inch)
Code
M50x1M34x136,00
(1,42)
21,00
(0,83)
5,00
(0,20)
5,00
(0,20)
8,00
(0,32)
66,00
(2,60)
19,00
(0,75)
28,00
(1,10)
19,05x1,65
(0,75x0,065)
25,40x1,65
(1,00x0,065)
12,70x1,65
(0,50x0,065)
YH25-SOCL-SOCL-A1912
M50x1M34x142,50
(1,67)
27,50
(1,08)
5,00
(0,20)
5,00
(0,20)
8,00
(0,32)
66,00
(2,60)
25,00
(0,98)
26,50
(1,04)
19,05x1,65
(0,75x0,065)
38,10x1,65
(1,50x0,065)
12,70x1,65
(0,50x0,065)
YH38-SOCL-SOCL-A1912
M50x1M34x149,00
(1,93)
34,00
(1,34)
5,00
(0,20)
5,00
(0,20)
8,00
(0,32)
66,00
(2,60)
31,50
(1,24)
30,50
(1,20)
19,05x1,65
(0,75x0,065)
50,80x1,65
(2,00x0,065)
12,70x1,65
(0,50x0,065)
YH50-SOCL-SOCL-A1912
M50x1M34x160,00
(2,36)
40,50
(1,60)
5,00
(0,20)
5,00
(0,20)
8,00
(0,32)
66,00
(2,60)
38,00
(1,50)
37,00
(1,46)
19,05x1,65
(0,75x0,065)
63,50x1,65
(2,50x0,065)
12,70x1,65
(0,50x0,065)
YH63-SOCL-SOCL-A1912
M50x1M34x172,50
(2,85)
46,50
(1,83)
5,00
(0,20)
5,00
(0,20)
8,00
(0,32)
66,00
(2,60)
44,00
(1,73)
44,00
(1,73)
19,05x1,65
(0,75x0,065)
76,20x1,65
(3,00x0,065)
12,70x1,65
(0,50x0,065)
YH76-SOCL-SOCL-A1912

(*) US Tube ASTM® A269/270 – ASME BPE

Assembly images

Horizontal Assembly

F110_CAD-h-assembly
