F 070
Coaxial Shut Off 90
Valve 12 on Pipe + Sip Valve 12

Technical sheet

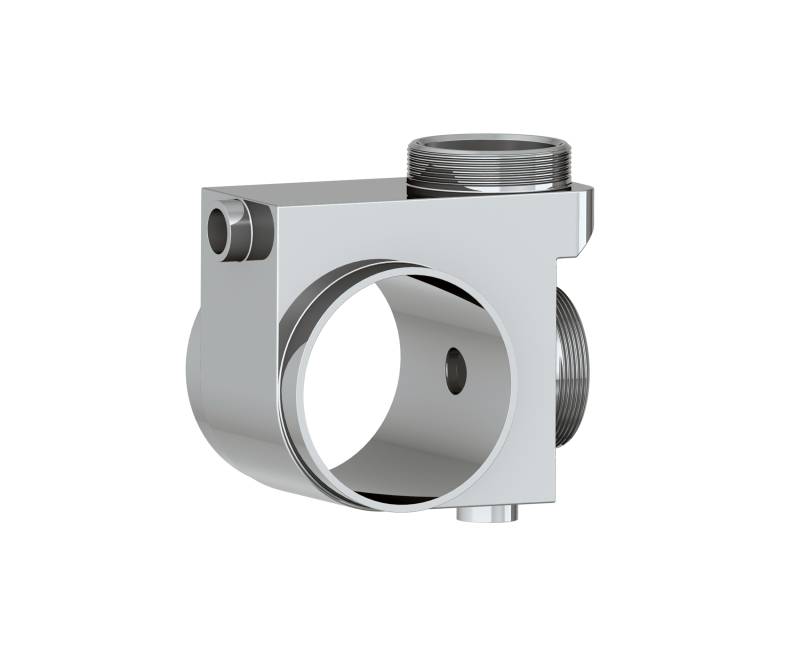

F070_CAD_rattiinox
Technical sheet

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

YU## - SOCL - SOCL - Coaxial Shut Off on Pipe Valves + SIP Valve for SAFE areas designed to feed or take off fluids or gases from the process piping with Zero dead leg. The satellite valve may be used for CIP-SIP process of the Valve on Pipe body and their downstrean pipeline. Body shape with flush flow seal on pipe and their internal design offer a very reliable component for Aseptic Processing Application. Standard version are short butt weld ends but, on demand, may be delivered for orbital welding or with Tri-Clamp connections.

A 1A 2B mm
(inch)
C mm
(inch)
D1 mm
(inch)
D2 mm
(inch)
E mm
(inch)
F mm
(inch)
G mm
(inch)
H mm
(inch)
Tube 1* mm
(inch)
Tube 2* mm
(inch)
Tube 3* mm
(inch)
Code
M34x1M34x126,00
(1,02)
12,00
(0,47)
5,00
(0,20)
5,00
(0,20)
8,00
(0,32)
52,00
(2,05)
19,00
(0,75)
31,50
(1,24)
12,70x1,65
(0,50x0,065)
12,70x1,65
(0,50x0,065)
12,70x1,65
(0,50x0,065)
YU12-SOCL-SOCL-A1212
M34x1M34x126,00
(1,02)
15,00
(0,59)
5,00
(0,20)
5,00
(0,20)
8,00
(0,32)
52,00
(2,05)
15,50
(0,62)
31,50
(1,24)
12,70x1,65
(0,50x0,065)
19,50x1,65
(0,75x0,065)
12,70x1,65
(0,50x0,065)
YU19-SOCL-SOCL-A1212
M34x1M34x126,00
(1,02)
18,50
(0,73)
5,00
(0,20)
5,00
(0,20)
8,00
(0,32)
52,00
(2,05)
18,50
(0,73)
31,50
(1,24)
12,70x1,65
(0,50x0,065)
25,40x1,65
(1,00x0,065)
12,70x1,65
(0,50x0,065)
YU25-SOCL-SOCL-A1212
M34x1M34x126,00
(1,02)
24,50
(0,97)
5,00
(0,20)
5,00
(0,20)
8,00
(0,32)
52,00
(2,05)
25,00
(0,98)
31,50
(1,24)
12,70x1,65
(0,50x0,065)
38,10x1,65
(1,50x0,065)
12,70x1,65
(0,50x0,065)
YU38-SOCL-SOCL-A1212
M34x1M34x131,00
(1,22)
31,00
(1,22)
5,00
(0,20)
5,00
(0,20)
8,00
(0,32)
52,00
(2,05)
31,00
(1,22)
31,50
(1,24)
12,70x1,65
(0,50x0,065)
50,80x1,65
(2,00x0,065)
12,70x1,65
(0,50x0,065)
YU50-SOCL-SOCL-A1212

(*) US Tube ASTM® A269/270 – ASME BPE

Assembly images

Horizontal Assembly

F070_CAD-h-assembly
