A 050
Shut Off 90 A12
Valve Body Ecc. Inlet
Tang. Left

Technical sheet

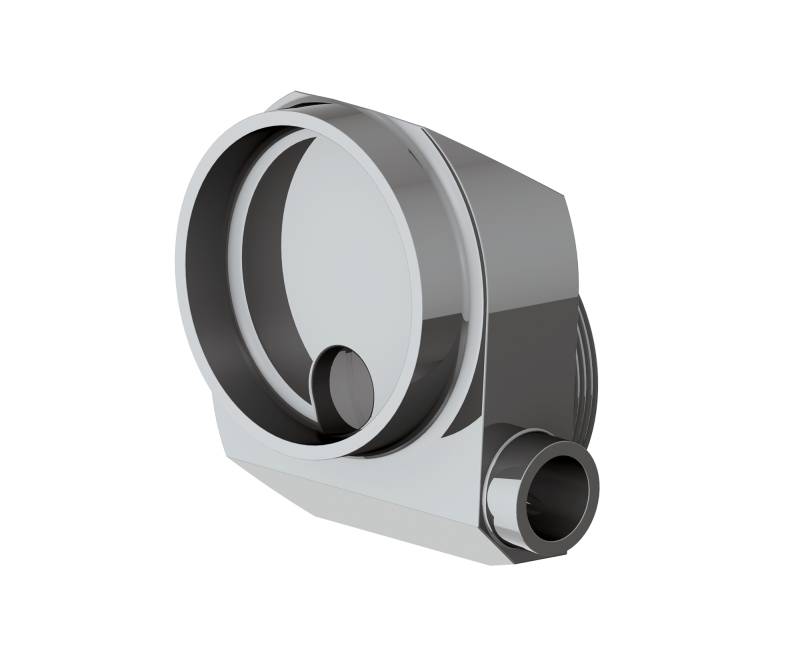

A050_CAD_rattiinox
Technical sheet

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

SARL - Shut Off Valves for SAFE areas designed to intercept flow pattern when the valve body has to be connected on a bigger pipe size and reach the optimal drainability in the horizontal valve assembly with horizontal outlet, such as on the downstream CIP/SIP through tank bottom valve. Body shape and their internal design offer a very reliable component for Aseptic Processing Application. Standard version are short butt weld ends but, on demand, may be delivered for orbital welding or with Tri-Clamp connections.

AB mm
(inch)
C mm
(inch)
D mm
(inch)
E mm
(inch)
F mm
(inch)
G mm
(inch)
Tube 1 mm
(inch)
Tube 2 mm
(inch)
Code
M34x126,00
(1,02)
15,00
(0,59)
5,00
(0,20)
7,30
(0,29)
23,00
(0,91)
11,00
(0,43)
12,70x1,65
(0,50x0,065)
19,05x1,65
(0,75x0,065)
YPRO-SALL-0000-A1219
M34x126,00
(1,02)
15,00
(0,59)
5,00
(0,20)
7,30
(0,29)
23,00
(0,91)
14,00
(0,55)
12,70x1,65
(0,50x0,065)
25,40x1,65
(1,00x0,065)
YPRO-SALL-0000-A1225
M34x126,00
(1,02)
15,00
(0,59)
5,00
(0,20)
7,30
(0,29)
23,00
(0,91)
20,50
(0,81)
12,70x1,65
(0,50x0,065)
38,10x1,65
(1,50x0,065)
YPRO-SALL-0000-A1238

(*) US Tube ASTM® A269/270 - ASME BPE

Assembly images

Horizontal Assembly

A050_CAD-h-assembly
