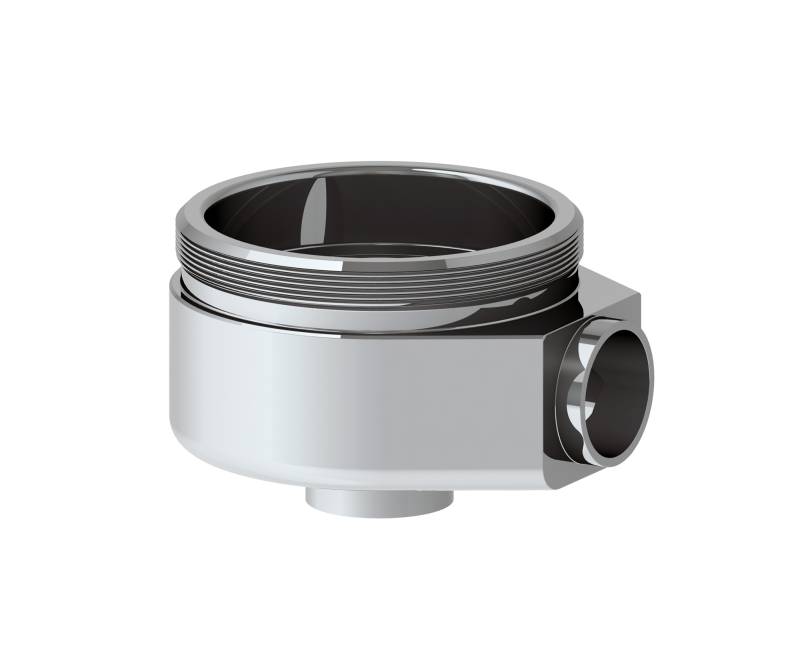

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

YPRO - SOCL - Shut Off Valves for SAFE areas designed to intercept flow pattern. Body shape and their internal design offer a very reliable component for Aseptic Processing Application. Standard version are short butt weld ends but, on demand, may be delivered for orbital welding or with Tri-Clamp connections.

AB mm
(inch)
C mm
(inch)
D mm
(inch)
E mm
(inch)
F mm
(inch)
Tube* mm
(inch)
Code
M34x126,00
(1,02)
15,00
(0,59)
5,00
(0,20)
7,30
(0,29)
30,50
(1,20)
12,70x1,65
(0,50x0,065)
YPRO-SOCL-0000-A1200
M50x133,00
(1,30)
20,00
(0,79)
5,00
(0,20)
8,00
(0,31)
40,00
(1,58)
19,05x1,65
(0,75x0,065)
YPRO-SOCL-0000-A1900
M70x147,00
(1,85)
25,00
(0,98)
5,00
(0,20)
10,00
(0,39)
51,00
(2,01)
25,40x1,65
(1,00x0,065)
YPRO-SOCL-0000-A2500
M80x1,560,00
(2,36)
34,00
(1,34)
21,00
(0,83)
11,00
(0,43)
70,00
(2,76)
38,10x1,65
(1,50x0,065)
YPRO-SOCL-0000-A3800
M103x1,575,00
(2,95)
40,00
(1,58)
24,00
(0,95)
12,00
(0,47)
84,00
(3,31)
50,80x1,65
(2,00x0,065)
YPRO-SOCL-0000-A5000
M120x1,585,00
(3,35)
47,10
(1,85)
24,00
(0,95)
12,00
(0,47)
96,50
(3,80)
63,50x1,65
(2,50X0,065)
YPRO-SOCL-0000-A6300
M140x1,595,00
(3,74)
68,00
(2,68)
26,00
(1,02)
26,00
(1,02)
129,50
(5,10)
76,20x1,65
(3,00x0,065)
YPRO-SOCL-0000-A7600

(*) US Tube ASTM® A269/270 – ASME BPE
