A 025
Shut Off 90 A19
Valve Body Ecc. Inlet

Technical sheet

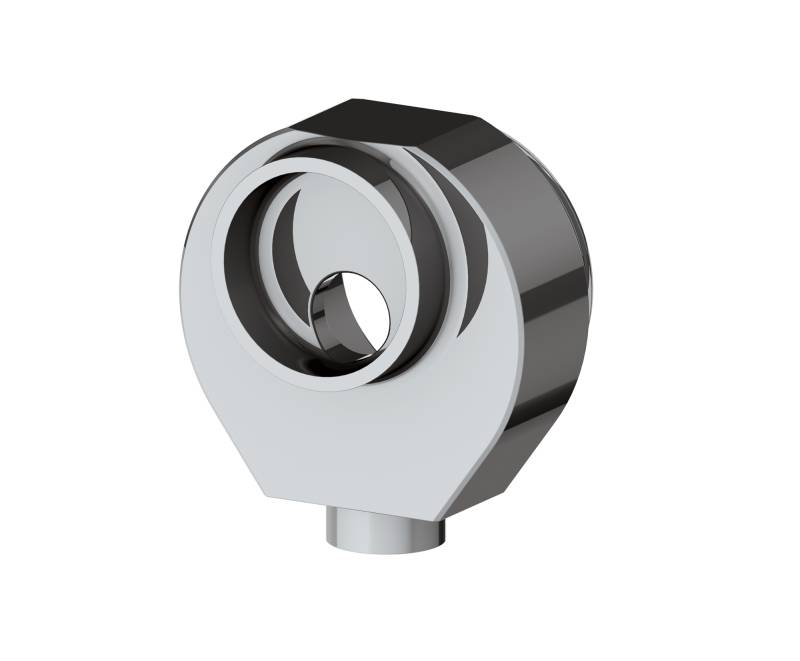

A025_CAD_rattiinox
Technical sheet

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

YPRO - SACL - Shut Off Valves for SAFE areas designed to intercept flow pattern when the valve body has to be connected on a bigger pipe size, such as on the CIP/SIP for tank bottom valve. Body shape and their internal design offer a very reliable component for Aseptic Processing Application. Standard version are short butt weld ends but, on demand, may be delivered for orbital welding or with Tri-Clamp connections.

AB mm
(inch)
C mm
(inch)
D mm
(inch)
E mm
(inch)
F mm
(inch)
G mm
(inch)
Tube 1 mm
(inch)
Tube 2 mm
(inch)
Code
M50x133,00
(1,30)
20,00
(0,79)
5,00
(0,20)
8,00
(0,32)
32,00
(1,26)
36,00
(1,42)
19,05x1,65
(0,75x0,065)
25,40x1,65
(1,00x0,065)
YPRO-SACL-0000-A1925
M50x133,00
(1,30)
20,00
(0,79)
5,00
(0,20)
8,00
(0,32)
32,00
(1,26)
42,50
(1,67)
19,05x1,65
(0,75x0,065)
38,10x1,65
(1,50x0,065)
YPRO-SACL-0000-A1938
M50x133,00
(1,30)
20,00
(0,79)
5,00
(0,20)
8,00
(0,32)
32,00
(1,26)
49,00
(1,93)
19,05x1,65
(0,75x0,065)
50,80x1,65
(2,00x0,065)
YPRO-SACL-0000-A1950
M50x133,00
(1,30)
20,00
(0,79)
5,00
(0,20)
8,00
(0,32)
32,00
(1,26)
55,00
(2,17)
19,05x1,65
(0,75x0,065)
63,50x1,65
(2,50x0,065)
YPRO-SACL-0000-A1963

(*) US Tube ASTM® A269/270 - ASME BPE

Assembly images

Horizontal Assembly

A025_CAD-h-assembly

Vertical Assembly

A025_CAD-v-assembly
