A 010
Shut Off 90
Valve Body
Tang. Right

Technical sheet

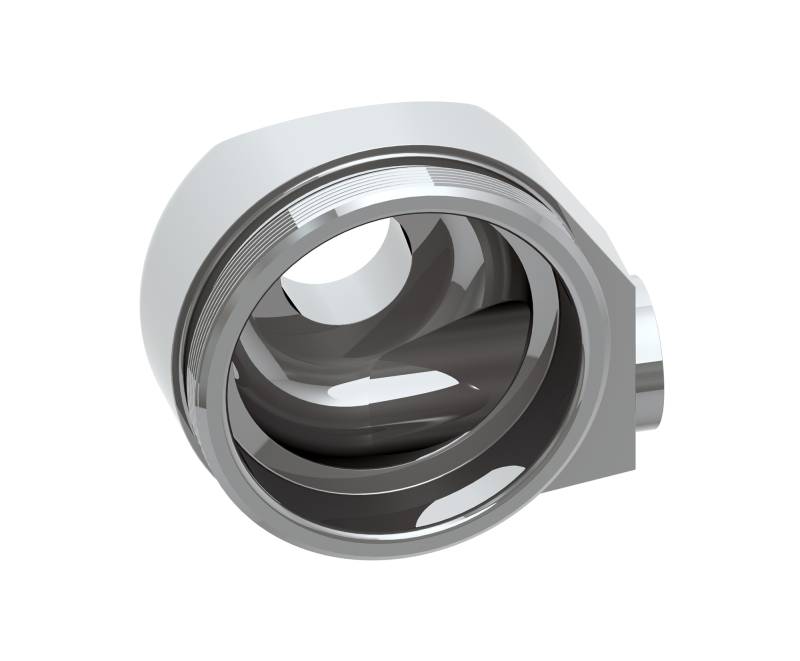

A010_CAD_rattiinox
Technical sheet

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

YPRO - SOCL - Shut Off Valves for SAFE areas designed to intercept flow pattern and reach the optimal drainability in the horizontal valve assembly with horizontal outlet. Body shape and their internal design offer a very reliable component for Aseptic Processing Application. Standard version are short butt weld ends but, on demand, may be delivered for orbital welding or with Tri-Clamp connections.

AB mm
(inch)
C mm
(inch)
D mm
(inch)
E mm
(inch)
F mm
(inch)
G mm
(inch)
Tube* mm
(inch)
Code
M34x126,00
(1,02)
15,00
(0,59)
5,00
(0,20)
7,30
(0,29)
30,50
(1,20)
8,00
(0,32)
12,70x1,65
(0,50x0,065)
YPRO-SORL-0000-A1200
M50x133,00
(1,30)
20,00
(0,79)
5,00
(0,20)
8,00
(0,31)
40,00
(1,58)
11,00
(0,43)
19,05x1,65
(0,75x0,065)
YPRO-SORL-0000-A1900
M70x147,00
(1,85)
25,00
(0,98)
5,00
(0,20)
10,00
(0,39)
51,00
(2,01)
17,00
(0,67)
25,40x1,65
(1,00x0,065)
YPRO-SORL-0000-A2500
M80x1,560,00
(2,36)
34,00
(1,34)
21,00
(0,83)
11,00
(0,43)
70,00
(2,76)
19,00
(0,75)
38,10x1,65
(1,50x0,065)
YPRO-SORL-0000-A3800
M103x1,575,00
(2,95)
40,00
(1,58)
24,00
(0,95)
12,00
(0,47)
84,00
(3,31)
25,00
(0,98)
50,80x1,65
(2,00x0,065)
YPRO-SORL-0000-A5000
M120x1,585,00
(3,35)
41,10
(1,85)
24,00
(0,95)
12,00
(0,47)
96,50
(3,80)
22,40
(0,88)
63,50x1,65
(2,50x0,065)
YPRO-SORL-0000-A6300



(*) US Tube ASTMĀ® A269/270 - ASME BPE
