Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

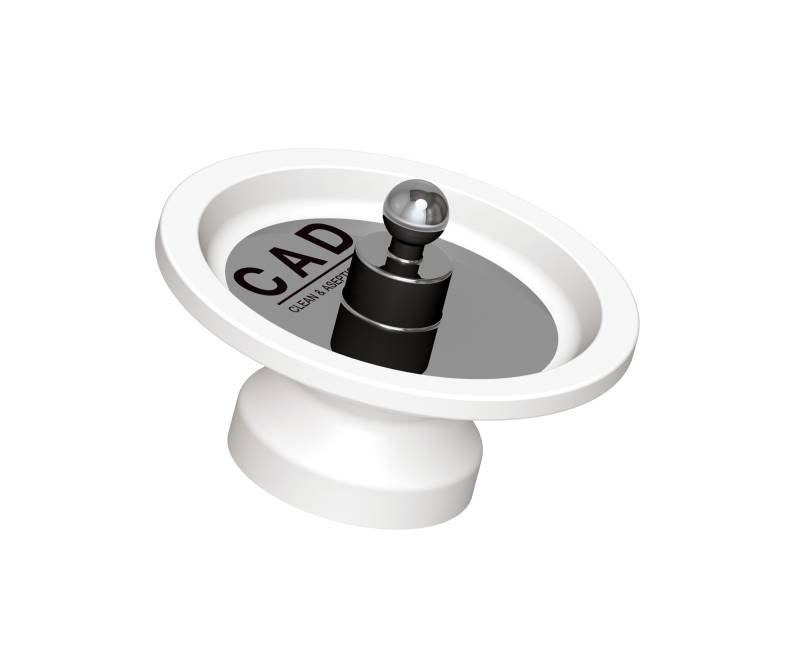

PTFE Diaphragm (Poly-Tetra-Fluor-Ethylene) manufactured from solid stock in accordance to FDA and USP Class VI - 121°C
| Size | A mm (inch) | B mm (inch) | C mm (inch) | D mm (inch) | Code |
|---|---|---|---|---|---|
| A12 | 13,40 (0,53) | 28,00 (1,10) | 13,00 (0,51) | 5,00 (0,20) | YDIA-PTFE-0000-S1200 |
| A19 | 20,00 (0,79) | 41,50 (1,63) | 20,50 (0,81) | 5,00 (0,20) | YDIA-PTFE-0000-S1900 |
| A25 | 30,00 (1,18) | 58,50 (2,30) | 27,50 (1,08) | 8,00 (0,32) | YDIA-PTFE-0000-S2500 |
| A38 | 45,00 (1,77) | 72,50 (2,85) | 42,50 (1,67) | 10,00 (0,39) | YDIA-PTFE-0000-S3800 |
| A50 | 63,50 (2,50) | 93,50 (3,68) | 55,50 (2,19) | 12,00 (0,47) | YDIA-PTFE-0000-S5000 |
| A63 | 71,00 (2,80) | 109,00 (4,29) | 67,50 (2,66) | 12,00 (0,47) | YDIA-PTFE-0000-S6300 |
| A76 | 85,00 (3,35) | 126,00 (4,96) | 81,50 (3,21) | 12,00 (0,47) | YDIA-PTFE-0000-S7600 |
| A00 | 109,00 (4,29) | 155,50 (6,12) | 107,50 (4,23) | 12,00 (0,47) | YDIA-PTFE-0000-S0000 |
