Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

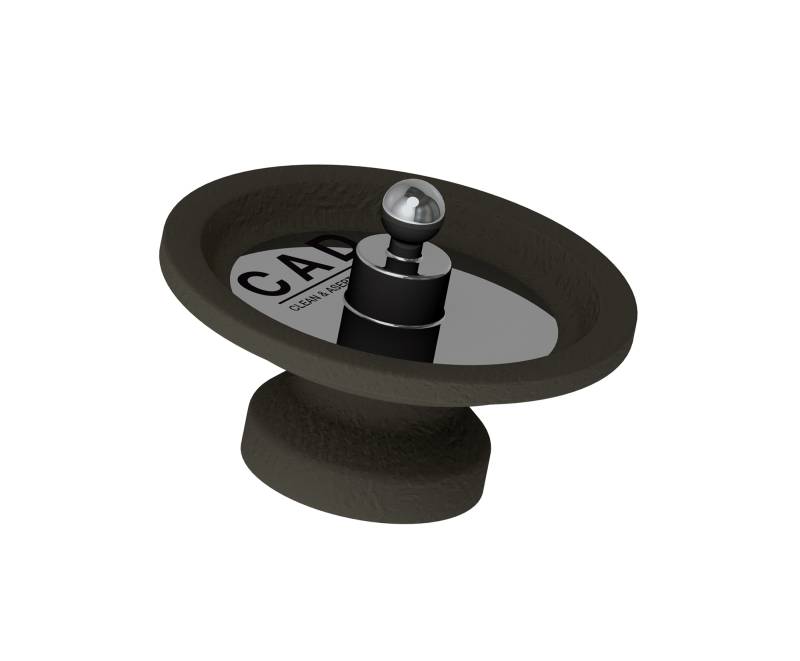

EPDM Diaphragm (Ethylene Propylene Diene) manufactured in accordance to FDA and USP Class VI

SizeA mm
(inch)
B mm
(inch)
C mm
(inch)
D mm
(inch)
Code
A1215,00
(0,58)
28,00
(1,10)
13,00
(0,51)
5,00
(0,20)
YDIA-EPDM-0000-S1200
A1922,00
(0,87)
41,50
(1,63)
20,50
(0,81)
5,00
(0,20)
YDIA-EPDM-0000-S1900
A2531,00
(1,22)
58,50
(2,30)
27,50
(1,08)
8,00
(0,32)
YDIA-EPDM-0000-S2500
A3845,00
(1,77)
72,50
(2,85)
42,50
(1,67)
10,00
(0,39)
YDIA-EPDM-0000-S3800
A5063,50
(2,50)
93,50
(3,68)
55,50
(2,19)
12,00
(0,47)
YDIA-EPDM-0000-S5000
A6375,00
(2,95)
109,00
(4,29)
67,50
(2,66)
12,00
(0,47)
YDIA-EPDM-0000-S6300
A7690,00
(3,54)
126,00
(4,96)
81,50
(3,21)
12,00
(0,47)
YDIA-EPDM-0000-S7600
