Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

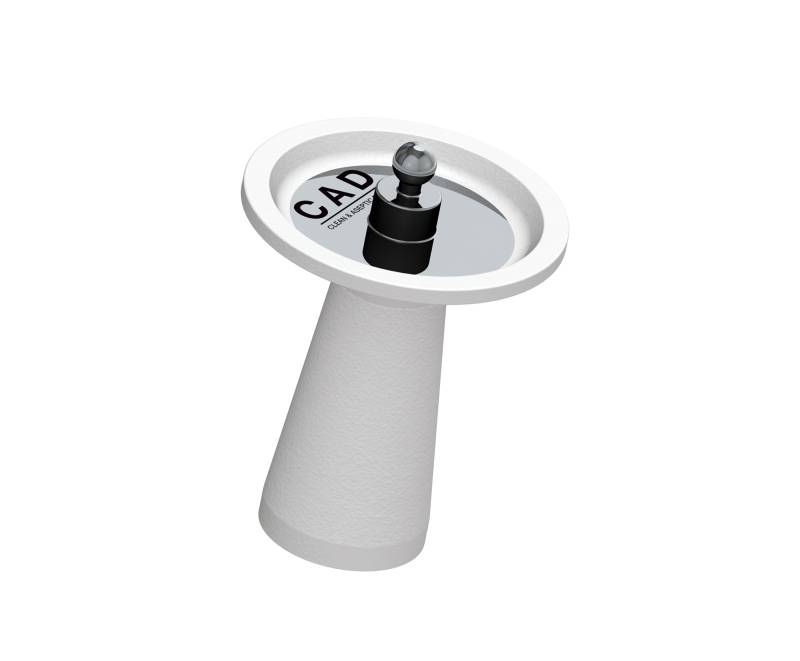

Extended PTFE Diaphragm (Poly-Tetra-Fluor-Ethylene) manufactured from solid stock in accordance to FDA and USP Class VI - 121°C

SizeA mm
(inch)
B mm
(inch)
C mm
(inch)
D mm
(inch)
Code
A1213,40
(0,53)
28,00
(1,10)
33,00
(1,30)
5,00
(0,20)
YDIA-PTFE-0000-E1200
A1920,00
(0,79)
41,50
(1,63)
62,00
(2,44)
5,00
(0,20)
YDIA-PTFE-0000-E1900
A2530,00
(1,18)
58,50
(2,30)
68,50
(2,70)
8,00
(0,32)
YDIA-PTFE-0000-E2500
A3845,00
(1,77)
72,50
(2,85)
97,50
(3,84)
10,00
(0,39)
YDIA-PTFE-0000-E3800
A5063,50
(2,50)
93,50
(3,68)
105,50
(4,15)
12,00
(0,47)
YDIA-PTFE-0000-E5000
A6371,00
(2,80)
109,00
(4,29)
123,50
(4,86)
12,00
(0,47)
YDIA-PTFE-0000-E6300
A7685,00
(3,35)
126,00
(4,96)
131,50
(5,18)
12,00
(0,47)
YDIA-PTFE-0000-E7600
A00109,00
(4,29)
155,50
(6,12)
162,50
(6,40)
12,00
(0,47)
YDIA-PTFE-0000-E0000
