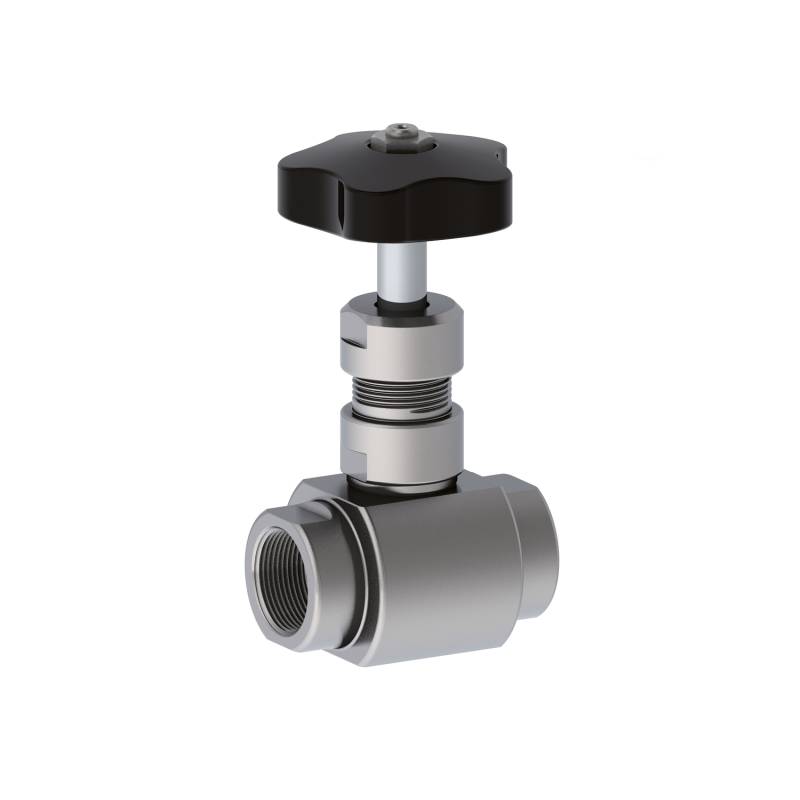

ART. 053
Needle Valves
Gas Threaded

Technical sheet
Technical sheet

ART. 053 Female Gas Threaded BSPP

Int. finishing: Ra ≤ 1,6 µm
Ext. finishing: Ra ≤ 1,6 µm
Max Working Conditions: 60 bar and (870 psi) and 150°C (300°F)

SizeØ AHLValve MaterialGasket MaterialCode
1/4”4,0078,0045,001.4404PTFE - FDA053Z60025PT70
3/8”5,5092,0052,001.4404PTFE - FDA053Z60037PT70
1/2”7,00106,0061,001.4404PTFE - FDA053Z60050PT70
3/4”9,00119,0068,001.4404PTFE - FDA053Z60075PT70
1”11,50135,0086,001.4404PTFE - FDA053Z60100PT70
1.1/2”17,00150,00120,001.4404PTFE - FDA053Z60150PT70
2”27,50224,00224,001.4404PTFE - FDA053Z60200PT70
