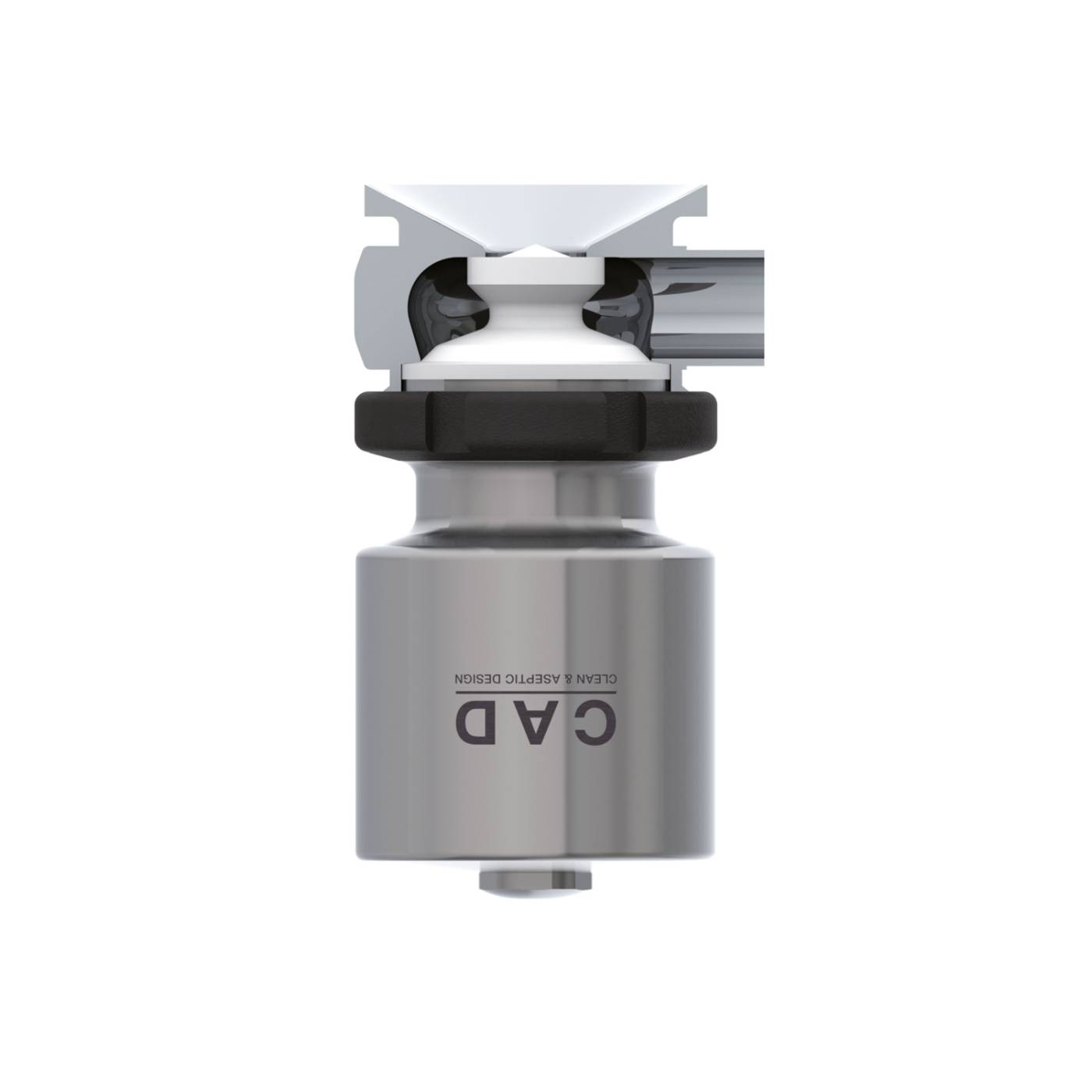

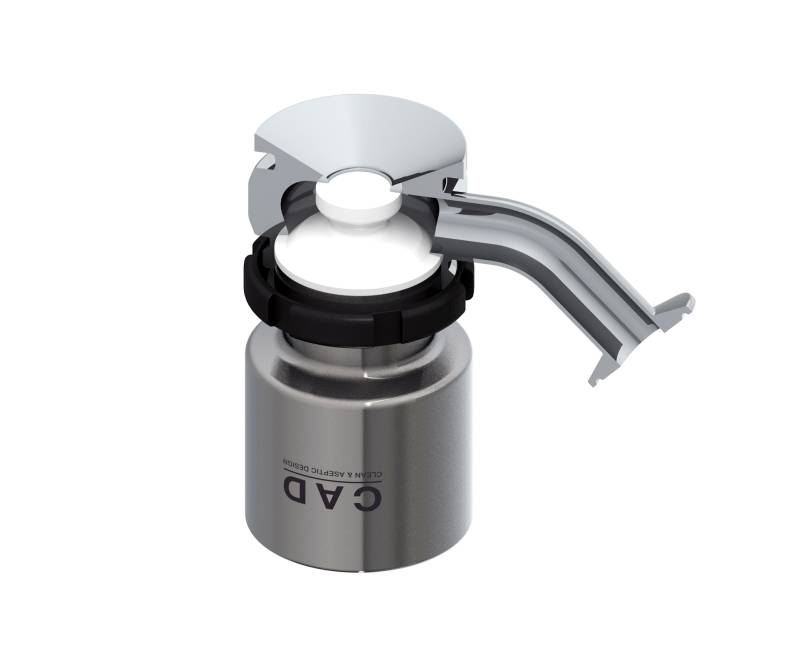

YBTV A0## PTFE 2 ## # - BOTTOM TANK VALVES WITH NC PNEUMATIC ACTUATORS AND DIAPHRAGMS are designed to take off fluids from the tank bottom for most stringent applications such as bioreactors, fermenters and preparation tanks. The body shape and their internal design offer a very reliable component for Aseptic Processing Applications. They have a simple and safe design, with full drainability, without asymptotic seals and dead legs, offering fast cleanability and sterilization practices. They are designed to fulfill the most stringent demands of CIP-SIP and production activities in Aseptic Processing. Equipped with PTFE diaphragms acc. to USP Class VI-121°C, or EPDM USP Class VI or Silicone USP Class VI, NC Pneumatic Actuators made from stainless steel. Bottom tank valves (BTV) are available in 6 different designs and 3 different outlet configurations to fulfill customer needs: with short butt weld ends, 45°, TC, with or without satellite valve for downstream CIP-SIP for clean and sterile transfer.
| Size | B mm | C mm | D mm | E mm | W mm | Tube mm | L mm | T (*) C° | P bar | Code |
|---|---|---|---|---|---|---|---|---|---|---|
| A12 | 40.00 | 6.50 | 13.00 | 18.50 | 30.00 | 12.70x1.65 | 100.00 | -80 / 200 | -1 / 6 | YBTV A012 #### 2 ## # |
| A19 | 55.00 | 7.00 | 16.00 | 21.70 | 40.00 | 19.05x1.65 | 115.00 | -80 / 200 | -1 / 6 | YBTV A019 #### 2 ## # |
| A25 | 75.00 | 7.00 | 17.00 | 27.00 | 50.00 | 25.40x1.65 | 157.00 | -80 / 200 | -1 / 6 | YBTV A025 #### 2 ## # |
| A38 | 85.00 | 7.00 | 18.50 | 34.50 | 60.00 | 38.10x1.65 | 198.00 | -80 / 200 | -1 / 6 | YBTV A038 #### 2 ## # |
| A50 | 110.00 | 7.00 | 24.00 | 40.00 | 75.00 | 50.80x1.65 | 243.00 | -80 / 200 | -1 / 6 | YBTV A050 #### 2 ## # |
| A63 | 125.00 | 10.00 | 24.00 | 48.00 | 85.00 | 63.50x1.65 | 278.00 | -80 / 200 | -1 / 6 | YBTV A063 #### 2 ## # |
| A76 | 150.00 | 10.00 | 30.00 | 58.00 | 100.00 | 76.20x1.65 | 308.00 | -80 / 200 | -1 / 4 | YBTV A076 #### 2 ## # |
| A00 | 180.00 | 15.00 | 30.00 | 72.50 | 115.00 | 101.60x2.11 | 425.00 | -80 / 200 | -1 / 4 | YBTV A000 #### 2 ## # |
All dimensions are in mm - All data may change without prior notice (*) For PTFE only
Body Configurations
01 #
Basic
configurations
01 A
Short butt weld outlet
01 B
45° elbow butt weld outlet
01 C
45° TC outlet
02 #
Configurations
with SIP
Butt Weld Port
02 A
Short butt weld outlet
02 B
45° elbow butt weld outlet
02 C
45° TC outlet
03 #
Configurations
with SIP TC Port
03 A
Short butt weld outlet
03 B
45° elbow butt weld outlet
03 C
45° TC outlet
04 #
Configurations
with Satellite
Valve for Sterile
Transfer
(Downstream CIP/SIP)
04 A
Short butt weld outlet
04 B
45° elbow butt weld outlet
04 C
45° TC outlet
05 #
Configurations
with Tang. Left
Satellite Valve
for Sterile Transfer
(Downstream CIP/SIP)
Space saving design
for tight areas
05 A
Short butt weld outlet
05 B
45° elbow butt weld outlet
05 C
45° TC outlet
06 #
Configurations
with Tang. Right
Satellite Valve
for Sterile Transfer
(Downstream CIP/SIP)
Space saving design
for tight areas
06 A
Short butt weld outlet
06 B
45° elbow butt weld outlet
06 C
45° TC outlet
ATTENTION: add the code of the configuration (example: “01 C”) after the code of the valve (instead of: “## #”) in order to achieve the complete valve code.
