H 027
Pneumatic Actuators NC
for Applications Up to 16 BAR

Technical sheet

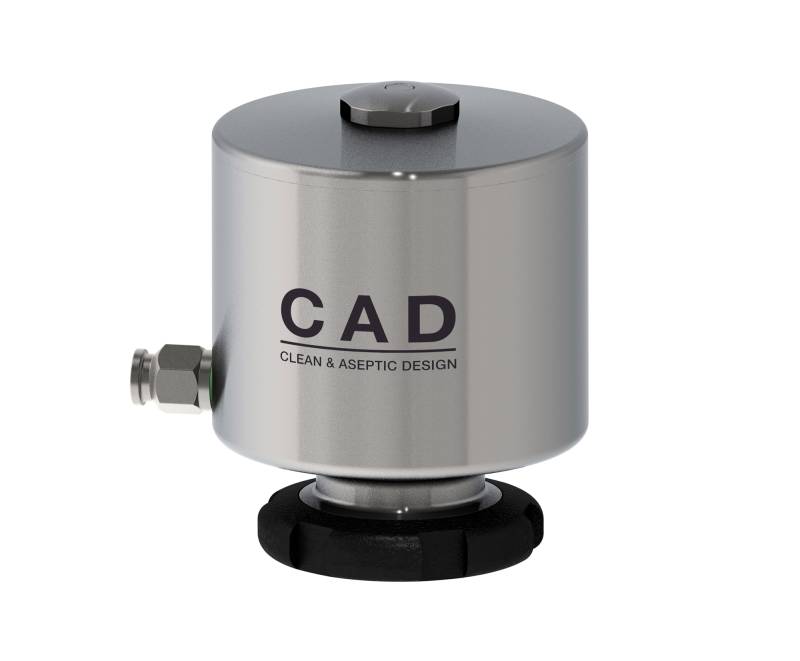

H027_CAD_rattiinox
Technical sheet

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

PANC - Pneumatic Actuator Normally Closed are designed to control the PTFE diaphragm of the CAD Clean and Aseptic Valves for SAFE areas. It has few and simple moveable parts which results in a very reliable component and low maintenance cost.

AB mm
(inch)
C mm
(inch)
D mm
(inch)
E mm
(inch)
FSizeCode
M34x139,50
(1,56)
77,00
(3,03)
2,50
(0,10)
62,00
(2,44)
4,00A12YACT-PANC-0120-X0016
M50x158,00
(2,29)
100,00
(3,94)
4,50
(0,18)
79,00
(3,11)
6,00A19YACT-PANC-0190-X0016
