H 011
90° Extended
Hand Knob 300mm
Straight Version for Atex App.

Technical sheet
H011_CAD_rattiinox
Technical sheet

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

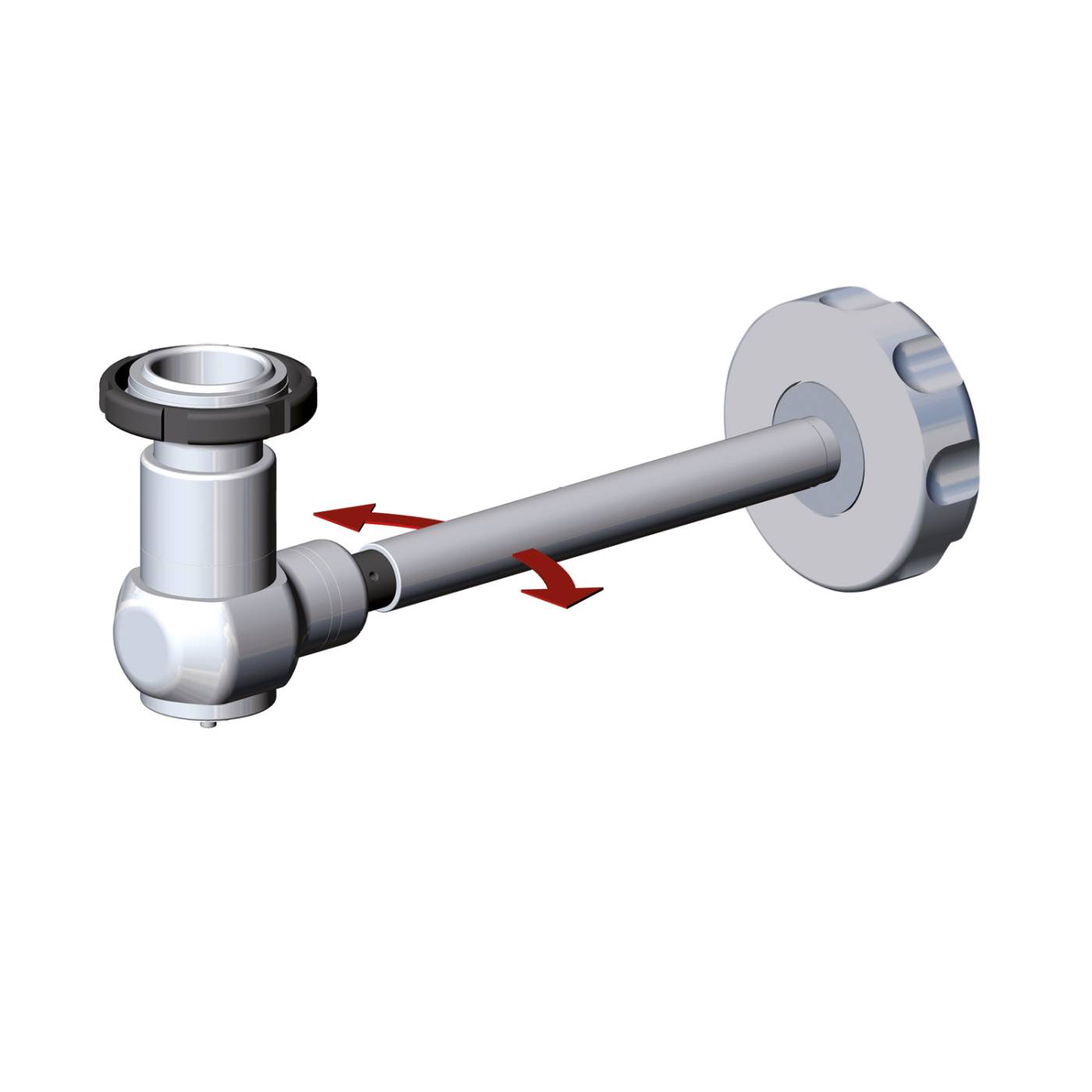

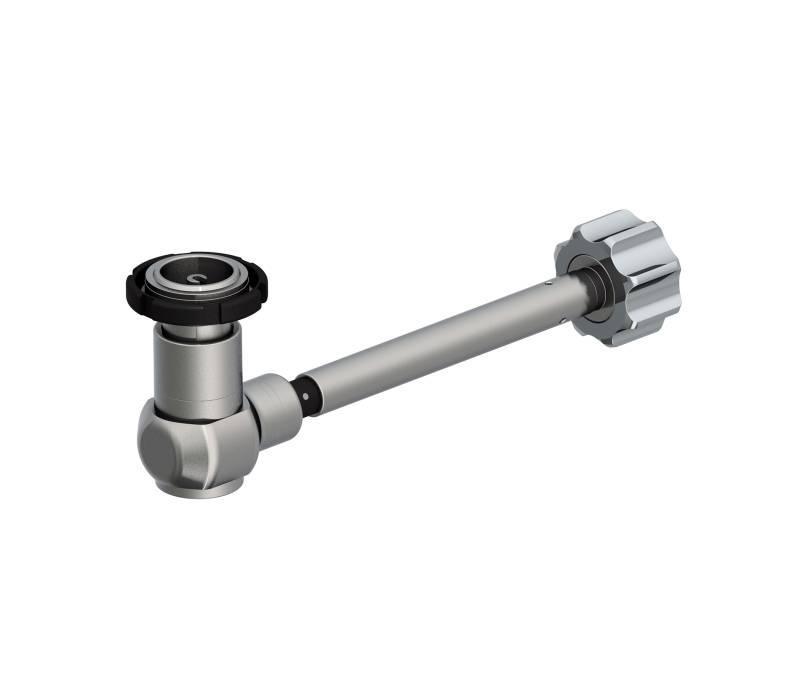

XNKE - 90° Extended Hand Knob is designed to control the CAD Clean and Aseptic Valves on ATEX areas for all application where a more comfortable or safe management is required, such as on CAD Bottom Tank Valves. It has few and simple moveable parts which results in a very reliable component and low maintenance cost. Standard extension of 300 mm but special lengths available on request. Rotating system as standard for an easier assembling and ready to be connected to the CAD Double Position Sensor (H060: XACT-SEND-0XX0-X0000).

AB mm
(inch)
C mm
(inch)
D mm
(inch)
SizeCode
M70x180,00
(3,15)
126,00
(4,96)
5,50
(0,22)
A25XACT-HNKE-0250-X0000
M80x199,00
(3,90)
151,00
(5,95)
8,50
(0,34)
A28XACT-HNKE-0380-X0000
M103x1,5119,00
(4,69)
165,50
(6,52)
11,00
(0,43)
A50XACT-HNKE-0500-X0000
