H 007
Manual Actuators for Atex App.

Technical sheet

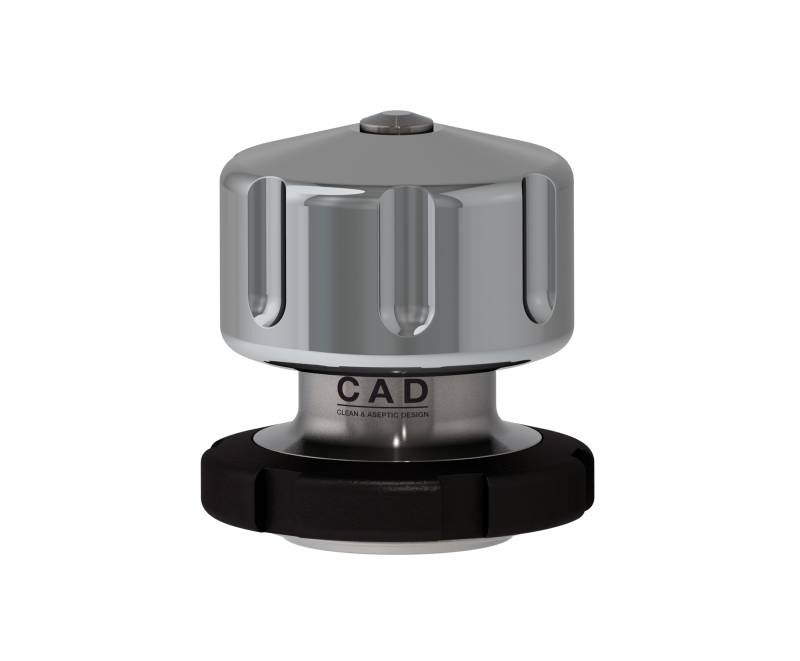

H007_CAD_rattiinox
Technical sheet

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

HNKS - Manual Actuator  are designed to control the PTFE diaphragm of the CAD Clean and Aseptic Valves on ATEX areas. It has few and simple moveable parts which results in a very reliable component and low maintenance cost.

AB mm
(inch)
C mm
(inch)
D mm
(inch)
E mm
(inch)
SizeCode
M34x139,50
(1,56)
62,00
(2,44)
2,50
(0,10)
39,50
(1,56)
A12XACT-HNKS-0120-X0000
M50x158,00
(2,29)
68,00
(2,68)
4,50
(0,18)
50,00
(1,97)
A19XACT-HNKS-0190-X0000
M70x180,00
(3,15)
82,00
(3,23)
5,50
(0,22)
72,00
(2,84)
A25XACT-HNKS-0250-X0000
M80x199,00
(3,90)
101,50
(4,00)
8,50
(0,34)
110,00
(4,33)
A38XACT-HNKS-0380-X0000
M103x1,5119,00
(4,69)
115,50
(4,55)
11,00
(0,43)
110,00
(4,33)
A50XACT-HNKS-0500-X0000
