Int. finishing: Ra ≤ 1,6 µm
Ext. finishing: Ra ≤ 1,6 µm

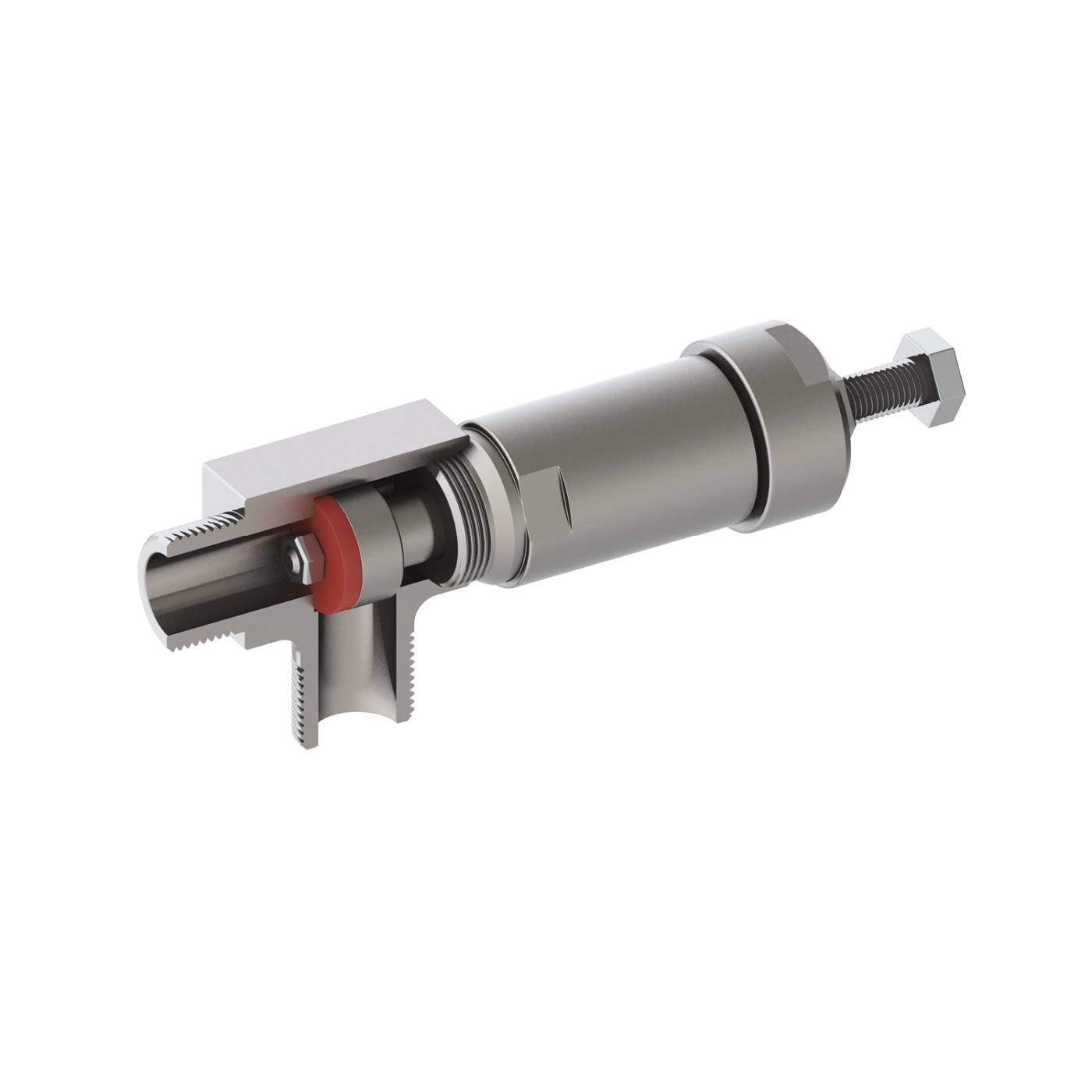

Adjustable minimum opening pressure, turning the screw on the top of the valve.
Max Working Conditions: 150°C (300°F) - Check maximum pressure installation on the following product data sheet
Gaskets: FDA approved PTFE + FPM/FKM or SILICONE for lowest pressure applications

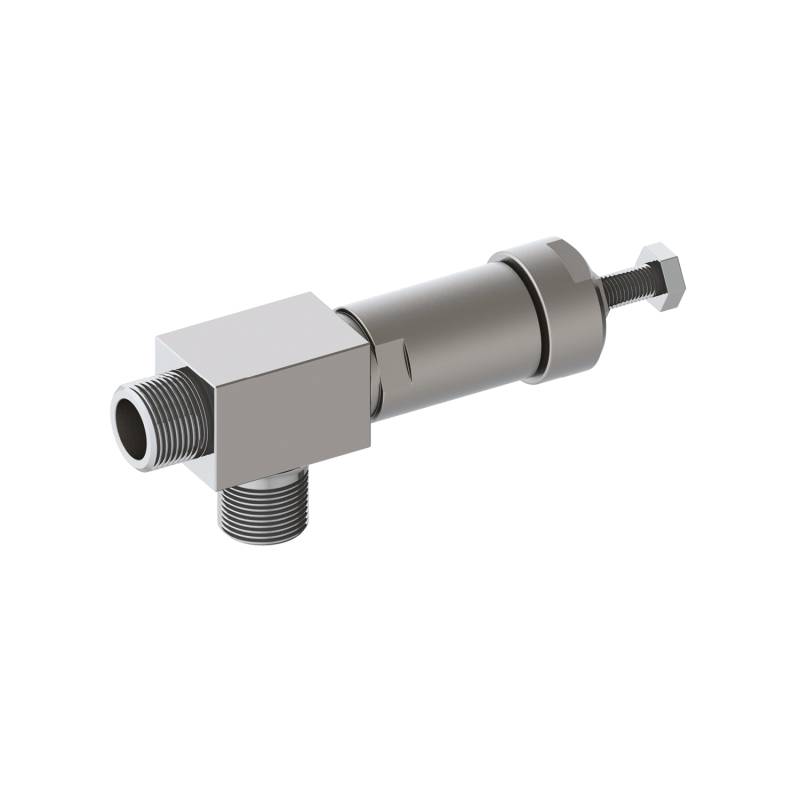

ART. 002 Male Gas Threaded BSPP
| Size | A | L | B | Valve Material | Gasket Material | Code |
|---|---|---|---|---|---|---|
| 1/4” | 27,50 | 105,00 | 23,00 | 1.4404 | FPM/FKM + PTFE | 002Z60025V+PT70 |
| SILICONE FDA | 002Z60025SIF | |||||
| 3/8” | 31,00 | 115,00 | 29,50 | 1.4404 | FPM/FKM + PTFE | 002Z60037V+PT70 |
| SILICONE FDA | 002Z60037SIF | |||||
| 1/2” | 37,00 | 133,00 | 36,00 | 1.4404 | FPM/FKM + PTFE | 002Z60050V+PT70 |
| SILICONE FDA | 002Z60050SIF | |||||
| 3/4” | 44,00 | 145,00 | 44,50 | 1.4404 | FPM/FKM + PTFE | 002Z60075V+PT70 |
| SILICONE FDA | 002Z60075SIF | |||||
| 1” | 51,00 | 165,00 | 50,00 | 1.4404 | FPM/FKM + PTFE | 002Z60100V+PT70 |
| SILICONE FDA | 002Z60100SIF |
