Int. finishing: Ra ≤ 1,6 µm
Ext. finishing: Ra ≤ 1,6 µm

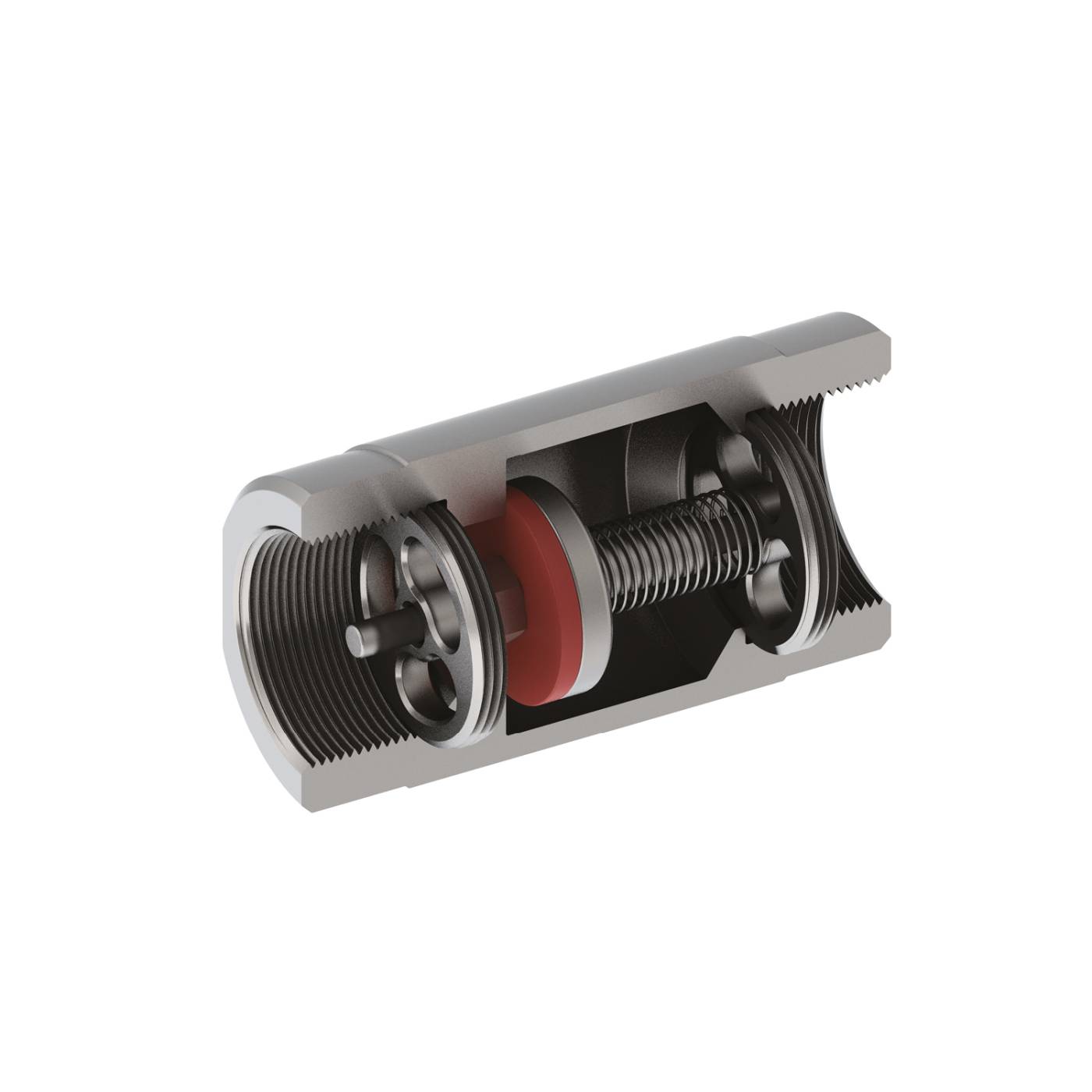

Valve body machined from solid, no middle connections. The closure area is between the 2 support points of the piston.
Max Working Conditions: 60 bar and (870 psi) and 150°C (300°F)
Gaskets: FDA approved PTFE or FPM/FKM or EPDM or SILICONE

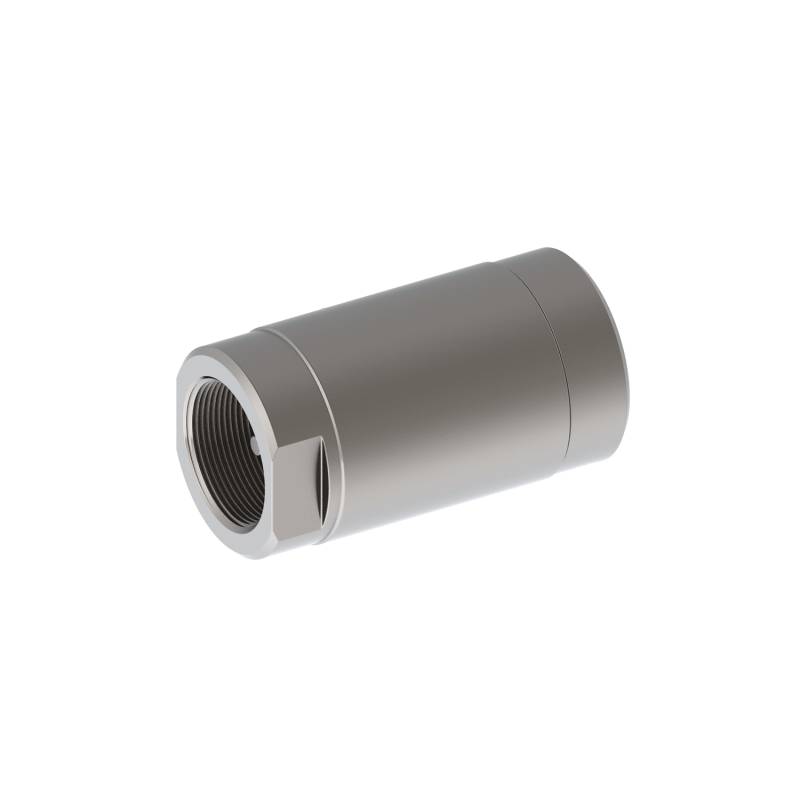

ART. 001 Female Gas Threaded BSPP
| Size | Ø A | Ø B | L | Valve Material | Gasket Material | Code |
|---|---|---|---|---|---|---|
| 1/4” | 22,00 | 60,00 | 17,00 | 1.4404 | FPM/FKM | 001Z60025V |
| EPDM | 001Z60025EP | |||||
| PTFE - FDA | 001Z60025PT70 | |||||
| SILICONE FDA | 001Z60025SIF | |||||
| 3/8” | 25,00 | 65,00 | 20,00 | 1.4404 | FPM/FKM | 001Z60037V |
| EPDM | 001Z60037EP | |||||
| PTFE - FDA | 001Z60037PT70 | |||||
| SILICONE FDA | 001Z60037SIF | |||||
| 1/2” | 30,00 | 75,00 | 25,00 | 1.4404 | FPM/FKM | 001Z60050V |
| EPDM | 001Z60050EP | |||||
| PTFE - FDA | 001Z60050PT70 | |||||
| SILICONE FDA | 001Z60050SIF | |||||
| 3/4” | 38,00 | 80,00 | 32,00 | 1.4404 | FPM/FKM | 001Z60075V |
| EPDM | 001Z60075EP | |||||
| PTFE - FDA | 001Z60075PT70 | |||||
| SILICONE FDA | 001Z60075SIF | |||||
| 1” | 48,00 | 85,00 | 40,00 | 1.4404 | FPM/FKM | 001Z60100V |
| EPDM | 001Z60100EP | |||||
| PTFE - FDA | 001Z60100PT70 | |||||
| SILICONE FDA | 001Z60100SIF | |||||
| 1.1/4” | 60,00 | 90,00 | 50,00 | 1.4404 | FPM/FKM | 001Z60125V |
| EPDM | 001Z60125EP | |||||
| PTFE - FDA | 001Z60125PT70 | |||||
| SILICONE FDA | 001Z60125SIF | |||||
| 1.1/2” | 65,00 | 95,00 | 56,00 | 1.4404 | FPM/FKM | 001Z60150V |
| EPDM | 001Z60150EP | |||||
| PTFE - FDA | 001Z60150PT70 | |||||
| SILICONE FDA | 001Z60150SIF | |||||
| 2” | 75,00 | 105,00 | 66,00 | 1.4404 | FPM/FKM | 001Z60200V |
| EPDM | 001Z60200EP | |||||
| PTFE - FDA | 001Z60200PT70 | |||||
| SILICONE FDA | 001Z60200SIF | |||||
| 2.1/2” | 99,00 | 130,00 | 85,00 | 1.4404 | FPM/FKM | 001Z60250V |
| EPDM | 001Z60250EP | |||||
| PTFE - FDA | 001Z60250PT70 | |||||
| SILICONE FDA | 001Z60250SIF |
