J 030
45° Tri-Clamp
Extended Connection

Technical sheet

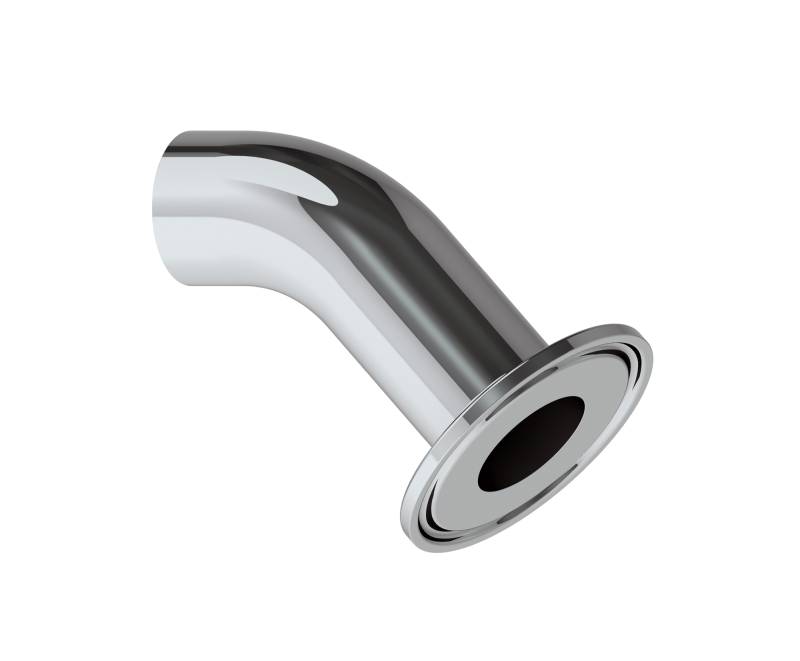

J030_CAD_rattiinox
Technical sheet

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

45° Tri-Clamp Fittings Upgrade. Design according to ASME-BPE regulation. Tri-Clamp and elbow made in AISI 316L - 1.4435-BN2.

SizeTC SizeA mm
(inch)
B mm
(inch)
C mm
(inch)
D mm
(inch)
L1 mm
(inch)
L2 mm
(inch)
Code
A121/2”12,70
(0,50)
9,40
(0,37)
1,65
(0,065)
25,00
(0,98)
44,00
(1,73)
23,50
(0,93)
YBPE-6A12-TC-1
A193/4”19,05
(0,75)
15,75
(0,62)
1,65
(0,065)
25,00
(0,98)
44,00
(1,73)
23,50
(0,93)
YBPE-6A19-TC-1
A251”25,40
(1,00)
22,10
(0,87)
1,65
(0,065)
50,40
(1,98)
64,00
(2,52)
38,00
(1,50)
YBPE-6A25-TC-1
A381,1/2”38,10
(1,50)
34,80
(1,37)
1,65
(0,065)
50,40
(1,98)
77,50
(3,05)
44,00
(1,73)
YBPE-6A38-TC-1
A502”50,80
(2,00)
47,50
(1,87)
1,65
(0,065)
64,00
(2,52)
99,50
(3,92)
53,00
(2,09)
YBPE-6A50-TC-1
A632,1/2”63,50
(2,50)
60,20
(2,37)
1,65
(0,065)
77,50
(3,05)
113,00
(4,45)
58,50
(2,30)
YBPE-6A63-TC-1
A763”76,20
(3,00)
72,90
(2,87)
1,65
(0,065)
91,00
(3,58)
177,00
(6,97)
85,00
(3,35)
YBPE-6A76-TC-1
A004”101,60
(4,00)
97,39
(3,83)
2,11
(0,083)
119,00
(4,69)
215,00
(8,47)
101,00
(3,98)
YBPE-6A00-TC-1

Tri-Clamp design according to ASME BPE Tri-Clamp material: 1.4435 - BN2 Elbow design according to ASTM® A269/270 - ASME BPE Elbow material: 1.4435 - BN2
