J 015
45° Extended
Butt Weld Elbow
for Orbital Welding

Technical sheet

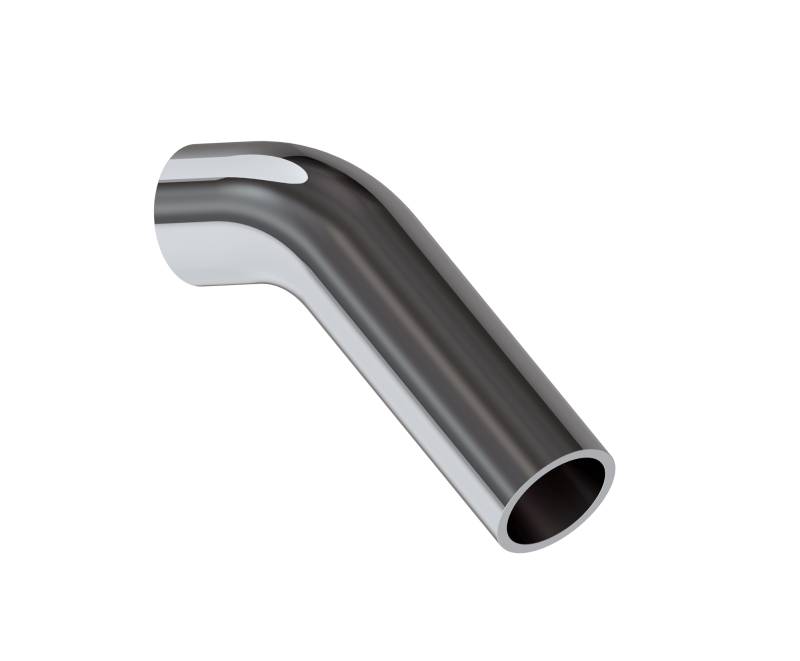

J015_CAD_rattiinox
Technical sheet

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

45° Extended Butt Weld Upgrade to perform orbital weldings on CAD Valves connections. Pipe dimensions according to ASME-BPE regulations, material 1.4435-BN2.

SizeA mm
(inch)
B mm
(inch)
C mm
(inch)
L1 mm
(inch)
L2 mm
(inch)
L3 mm
(inch)
L4 mm
(inch)
L5 mm
(inch)
Code
A1212,70
(0,50)
9,40
(0,37)
1,65
(0,065)
46,00
(1,81)
20,50
(0,81)
61,00
(2,40)
40,50
(1,60)
57,20
(2,25)
YBPE-5A12-45-1
A1919,05
(0,75)
15,75
(0,62)
1,65
(0,065)
46,00
(1,81)
20,50
(0,81)
61,00
(2,40)
40,50
(1,60)
57,20
(2,25)
YBPE-5A19-45-1
A2525,40
(1,00)
22,10
(0,87)
1,65
(0,065)
41,00
(1,61)
26,00
(1,02)
66,00
(2,60)
40,50
(1,60)
57,20
(2,25)
YBPE-5A25-45-1
A3838,10
(1,50)
34,80
(1,37)
1,65
(0,065)
40,00
(1,58)
34,00
(1,34)
78,50
(3,09)
45,00
(1,77)
63,50
(2,50)
YBPE-5A38-45-1
A5050,80
(2,00)
47,50
(1,87)
1,65
(0,065)
44,50
(1,75)
46,50
(1,83)
100,50
(3,96)
54,00
(2,13)
76,20
(3,00)
YBPE-5A50-45-1
A6363,50
(2,50)
60,20
(2,37)
1,65
(0,065)
46,00
(1,81)
54,50
(2,15)
115,00
(4,53)
60,50
(2,38)
85,70
(3,37)
YBPE-5A63-45-1
A7676,20
(3,00)
72,90
(2,87)
1,65
(0,065)
44,50
(1,75)
44,50
(1,75)
157,00
(6,18)
65,00
(2,56)
92,10
(3,63)
YBPE-5A76-45-1
A00101,60
(4,00)
97,39
(3,83)
2,11
(0,083)
51,00
(2,01)
51,00
(2,01)
195,00
(7,68)
81,00
(3,19)
114,30
(4,50)
YBPE-5A00-45-1

Pipe design according to ASTM® A269/270 - ASME BPE Pipe material: AISI 316L - 1.4435 - BN2 Optional: AISI 316L according to ASME BPE
