Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

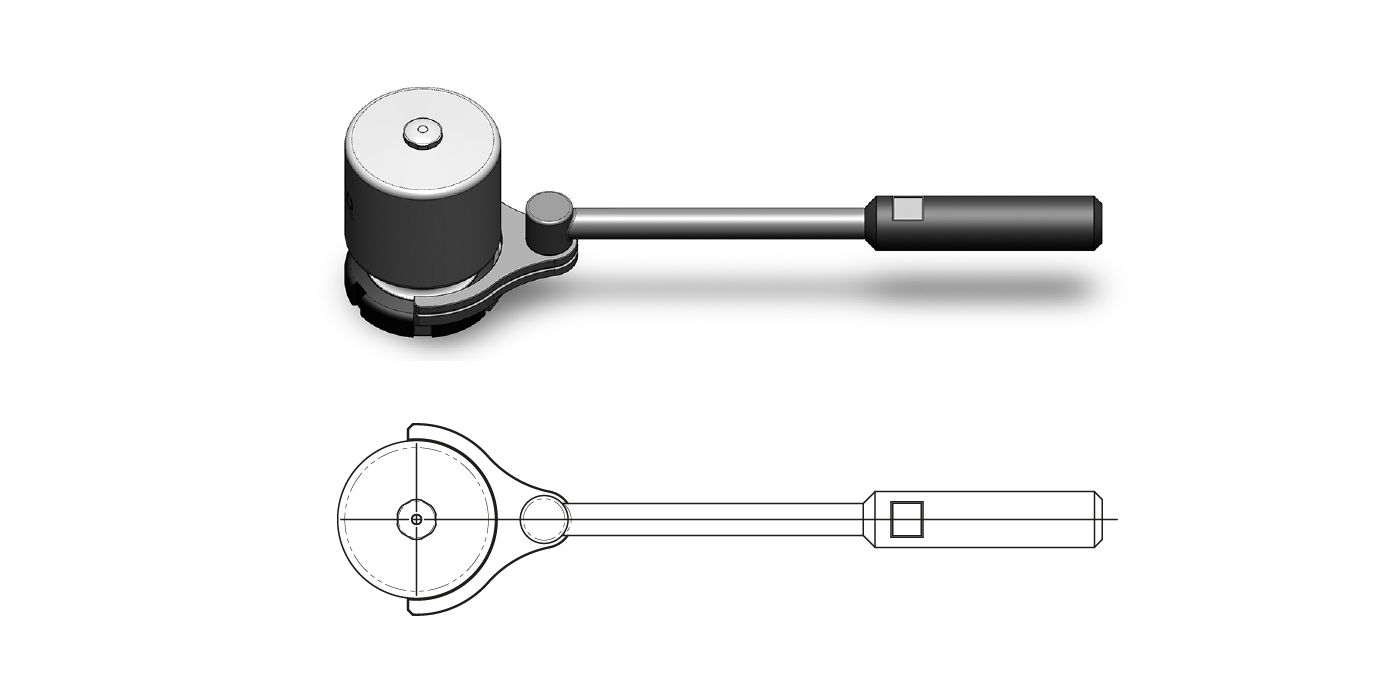

CAD Wrench, manufactured from solid stock in AISI 316L – 1.4404, engineered to achieve a perfect load on CAD Diaphragms and Actuators. Minimum torque level as indicated in the following table.
| Size | A mm (inch) | B mm (inch) | PTFE min.torque Nm (lbf-ft) | EPDM min.torque Nm (lbf-ft) | SILICONE min.torque Nm (lbf-ft) | Code |
|---|---|---|---|---|---|---|
| A12 (1/2”) | 42,00 (1.65) | 12,70 (1/2”) | 90 (66) | 60 (44) | 60 (44) | YACT- WRSS -0120-0000S |
| A19 (3/4”) | 60,00 (2.36) | 12,70 (1/2”) | 130 (95) | 80 (59) | 80 (59) | YACT- WRSS -0190-0000S |
| A25 (1”) | 80,00 (3.15) | 12,70 (1/2”) | 140 (103) | 90 (66) | 90 (66) | YACT- WRSS -0250-0000S |
| A38 (1.1/2”) | 99,00 (3.90) | 12,70 (1/2”) | 150 (110) | 100 (74) | 100 (74) | YACT- WRSS -0380-0000S |
| A50 (2”) | 119,00 (4.69) | 12,70 (1/2”) | 190 (140) | 110 (81) | 110 (81) | YACT- WRSS -0500-0000S |
| A63 (2.1/2”) | 143,00 (5.63) | 12,70 (1/2”) | 200 (148) | 120 (89) | 120 (89) | YACT- WRSS -0630-0000S |
| A76 (3”) | 168,00 (6.61) | 12,70 (1/2”) | 220 (162) | 130 (96) | 130 (96) | YACT- WRSS -0760-0000S |
| A00 (4”) | 198,00 (7.80) | 12,70 (1/2”) | 240 (177) | NOT AVAILABLE | NOT AVAILABLE | YACT- WRSS -0000-0000S |
