Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

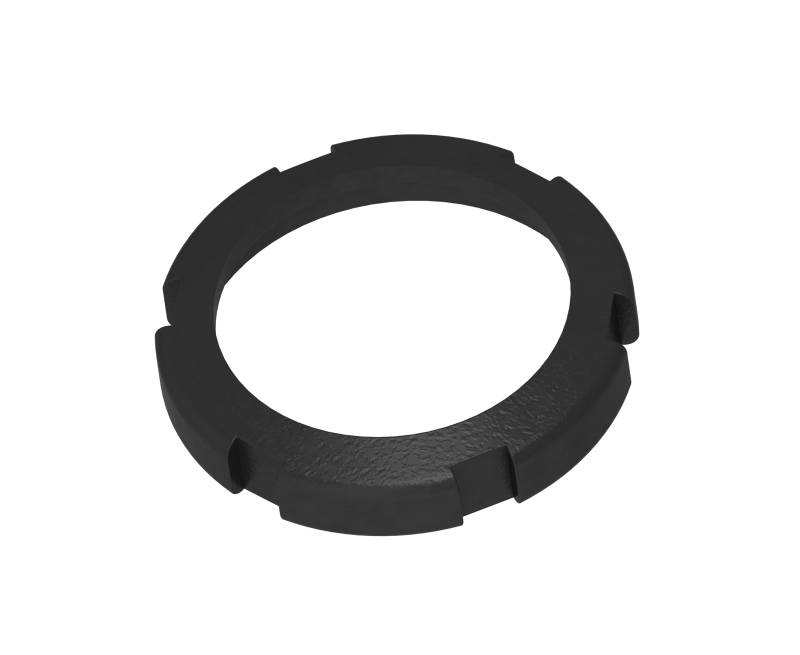

CAD Coated Stainless Steel Ring manufactured from solid stock in AISI 316L – 1.4404 with special anti-friction coating, engineered to achieve a perfect load on CAD Diaphragms and Actuators.
| Size | A mm (inch) | B mm (inch) | C mm (inch) | Code |
|---|---|---|---|---|
| A12 | 42,00 (1.65) | 11,60 (0.46) | 29,00 (1.14) | YACT-RING-0120-XCOAT |
| A19 | 60,00 (2.36) | 12,00 (0.54) | 43,00 (1.69) | YACT-RING-0190-XCOAT |
| A25 | 80,00 (3.15) | 15,00 (0.59) | 59,50 (2.34) | YACT-RING-0250-XCOAT |
| A38 | 99,00 (3.90) | 23,00 (0.91) | 74,00 (2.91) | YACT-RING-0380-XCOAT |
| A50 | 119,00 (4.69) | 24,00 (0.95) | 95,00 (3.74) | YACT-RING-0500-XCOAT |
| A63 | 143,00 (5.63) | 22,50 (0.89) | 110,50 (4.35) | YACT-RING-0630-XCOAT |
| A76 | 168,00 (6.61) | 26,00 (1.02) | 127.50 (5.02) | YACT-RING-0760-XCOAT |
| A00 | 198,00 (7.80) | 26,00 (1.02) | 158,00 (6.22) | YACT-RING-0000-XCOAT |
