D 395
Flow Through 180
2”1/2 TC Conn.
Valve Body

Technical sheet

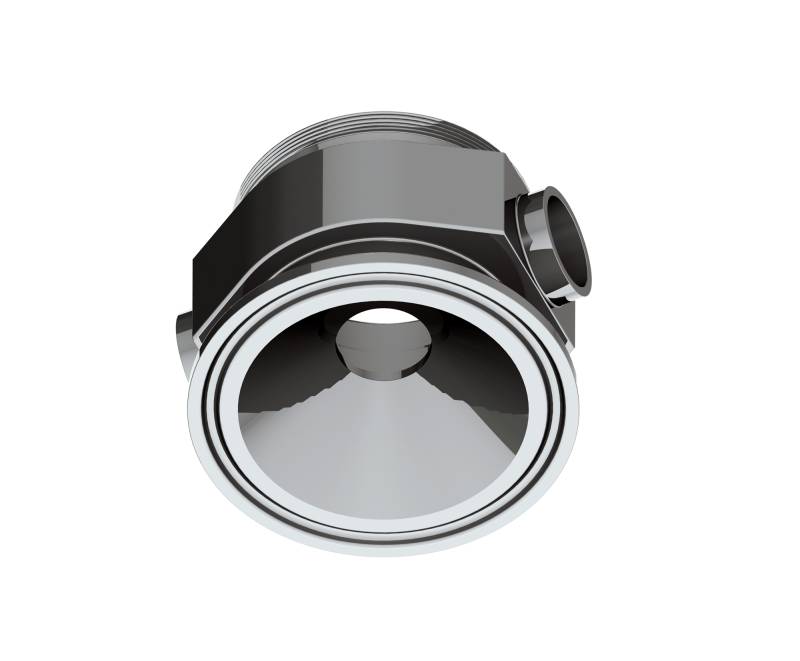

D395_CAD_rattiinox
Technical sheet

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

YT63 - FTCI - Flow Through TC 2”1/2 Connectable Valves for SAFE areas designed to feed or take off fluids or gases from the process piping or a vessel when TC connection is available. Body shape and their internal design offer a very reliable component for Aseptic Processing Application. Standard version are short butt welding ends but, on demand, may be delivered for orbital weld or with Tri-Clamp connections.

AB mm
(inch)
C mm
(inch)
D mm
(inch)
E mm
(inch)
F mm
(inch)
Tube* mm
(inch)
Code
M34x177,50
(3,09)
60,20
(2,37)
5,00
(0,20)
26,50
(1,04)
38,50
(1,52)
12,70x1,65
(0,50x0,065)
YT63-FTCI-0000-A1200
M50x177,50
(3,09)
60,20
(2,37)
5,00
(0,20)
29,00
(1,14)
37,00
(1,46)
19,05x1,65
(0,75x0,065)
YT63-FTCI-0000-A1900
M70x177,50
(3,09)
60,20
(2,37)
5,00
(0,20)
35,00
(1,38)
47,00
(1,85)
25,40x1,65
(1,00x0,065)
YT63-FTCI-0000-A2500
M80x1,577,50
(3,09)
60,20
(2,37)
21,00
(0,83)
54,00
(2,13)
60,00
(2,36)
38,10x1,65
(1,50x0,065)
YT63-FTCI-0000-A3800
M103x1,577,50
(3,09)
60,20
(2,37)
24,00
(0,95)
62,00
(2,44)
75,00
(2,95)
50,80x1,65
(2,00x0,065)
YT63-FTCI-0000-A5000

(*) US Tube ASTM® A269/270 – ASME BPE

Assembly images

Horizontal Assembly

D395_CAD-h-assembly

Vertical Assembly

D395_CAD-v-assembly
