D 005
Shut Off 90
1/2” TC Conn.
Valve Body

Technical sheet

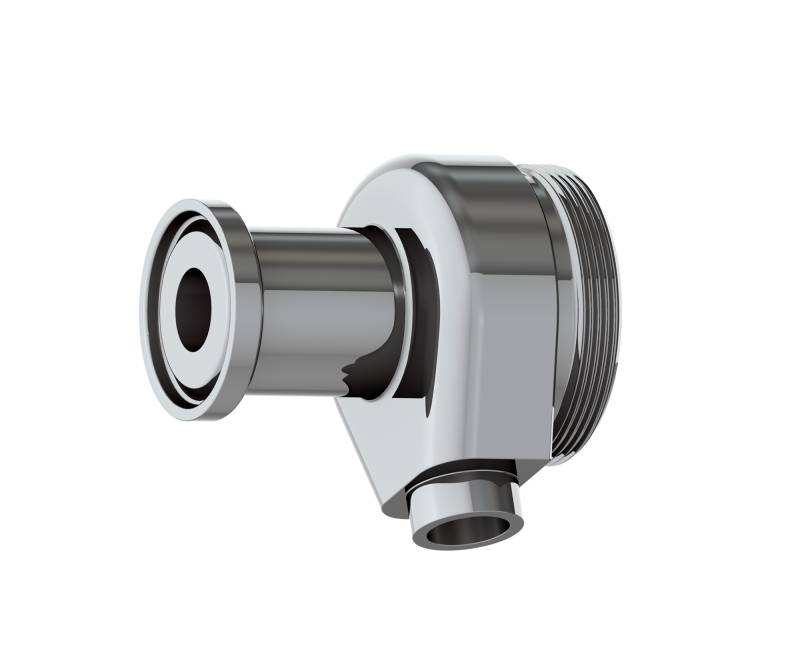

D005_CAD_rattiinox
Technical sheet

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

YT12 - SOCL - Shut Off TC 1/2” Connectable Valves for SAFE areas designed to intercept flow pattern when TC connection is available. Body shape and their internal design offer a very reliable component for Aseptic Processing Application. Standard version are short butt welding ends but, on demand, may be delivered for orbital weld or with Tri-Clamp connections.

AB mm
(inch)
C mm
(inch)
D mm
(inch)
E mm
(inch)
F mm
(inch)
Tube* mm
(inch)
Code
M34x125,00
(0,98)
9,40
(0,37)
5,00
(0,20)
31,00
(1,22)
26,00
(1,02)
12,70x1,65
(0,50x0,065)
YT12-SOCL-0000-A1200

(*) US Tube ASTM® A269/270 – ASME BPE
