G 305
3 Functions Dip-Tube
Sprayball Sparger A19

Technical sheet

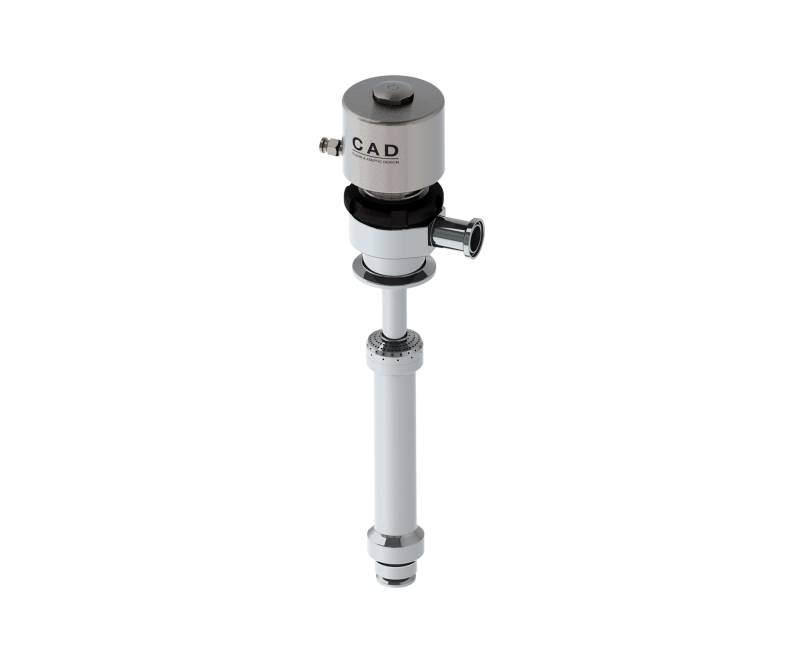

G305_CAD_rattiinox
Technical sheet

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

3 Functions Dip Tube Sprayball Sparger A19 for SAFE areas engineered to give the best solution for the tipical needs on the top of the process vessel offering reduction on nozzles numbers by the integration of a diptube with a spray ball and sparger in one tool ready to use for: filling, CIP-SIP and bubbling activities . They offer also reduction of nozzles number on top vessel as additional benefit. Body shape and their internal design offer a very reliable component for Aseptic Processing Application. Standard version made with Tri-Clamp connections.

SizeL1 - L2 - L3Nominal Dimension
A19TailoredYDTB-3FNL-0000-A1900

(*) US Tube ASTM® A269/270 – ASME BPE

Assembly images

Vertical Assembly

G305_CAD-v-assembly

Specification

G305_CAD_rattiinox_2
