G 170
Extended Point of Use on 63
Valve Body SO38
Extended + FT25 + SO25

Technical sheet

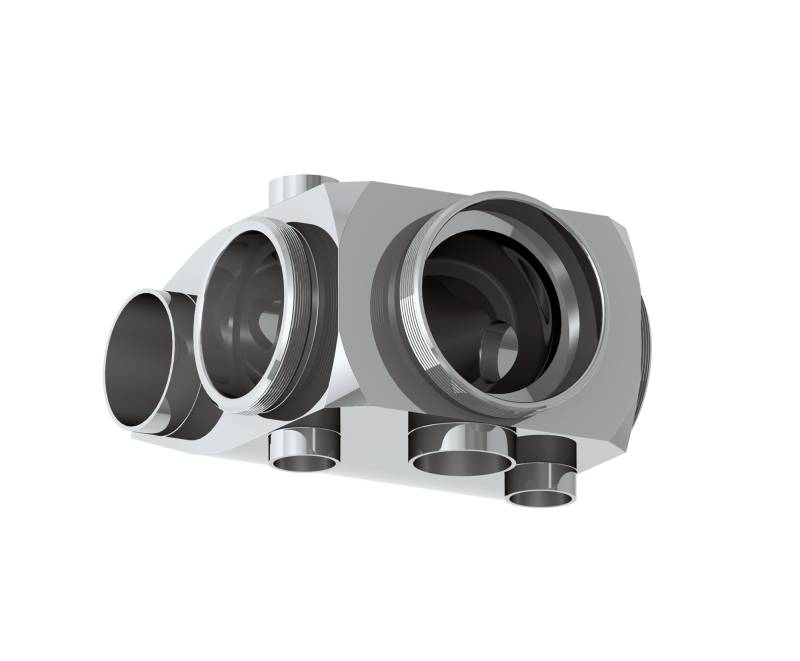

G170_CAD_rattiinox
Technical sheet

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

Extended Point of Use Assembly  for SAFE areas is engineered to fulfil the demand to assembly in a block valve, WFI take off, Pure Steam, Nitrogen, and sampling valves, ready for installation, Point of Use in one tool ready to use, with Zero Dead legs, without Unused Portions and with flush flow seal. Body shape and their internal design offer a very reliable component for Aseptic processing Application. They fulfill all stringent requirements for CIP-SIP activities. Standard version are short butt weld ends but, on demand, may be delivered for orbital welding or with Tri-Clamp connections.

A1A2A3Tube 1* mm
(inch)
Tube 2* mm
(inch)
Tube 3* mm
(inch)
Tube 4* mm
(inch)
Code
A38 Extended
M80x1,5
A25
M70x1
A25
M70x1
63,50x1,65
(2,50x0,065)
38,10x1,65
(1,50x0,065)
25,40x1,65
(1,00x0,065)
25,40x1,65
(1,00x0,065)
YP63-SE38-FT25-ASO25

(*) US Tube ASTM® A269/270 – ASME BPE

Assembly images

Horizontal Assembly

G170_CAD-h-assembly
