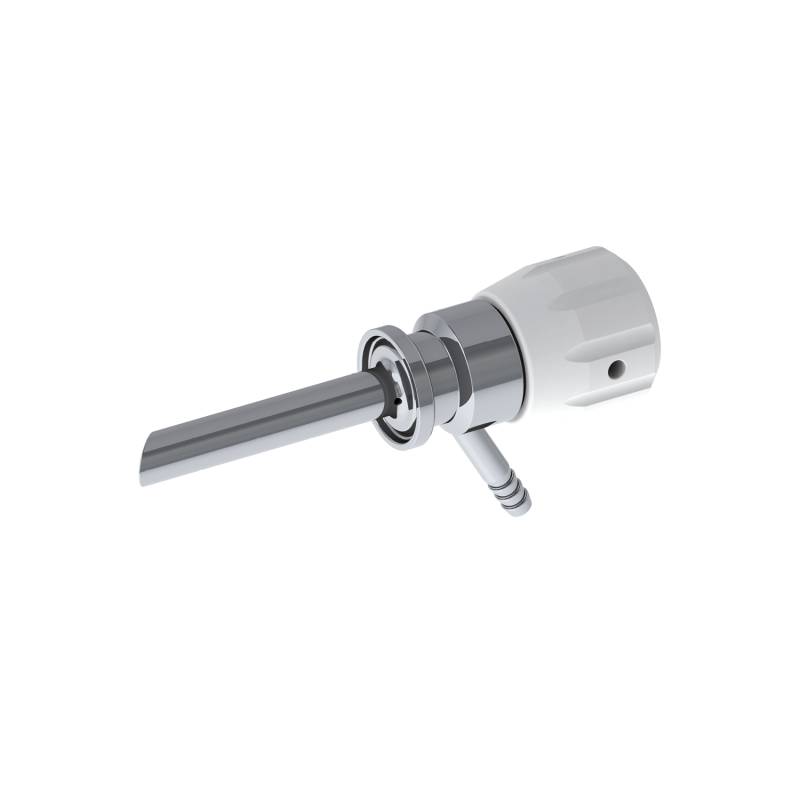

Inline Sampling Valves

ART. 058
Inline 30° O-Ring
Sampling Valves

Technical sheet
058_rattiinox
Technical sheet

Characteristics: Inline sanitary sampling valves are designed for sampling of liquids on pharmaceutical, chemical, F&B and cosmetics products. It’s special design prevents deposits of particles in correspondence of the sampling hole, the valve takes  the  sample from the middle of the line where is installed, avoiding alteration. Used for chemical and microbiological analysis.

Documentation: Laser marking for traceability and validation processes. Material 3.1 certificates, FDA or USP, internal surface finishing check as standard.

Important notes:

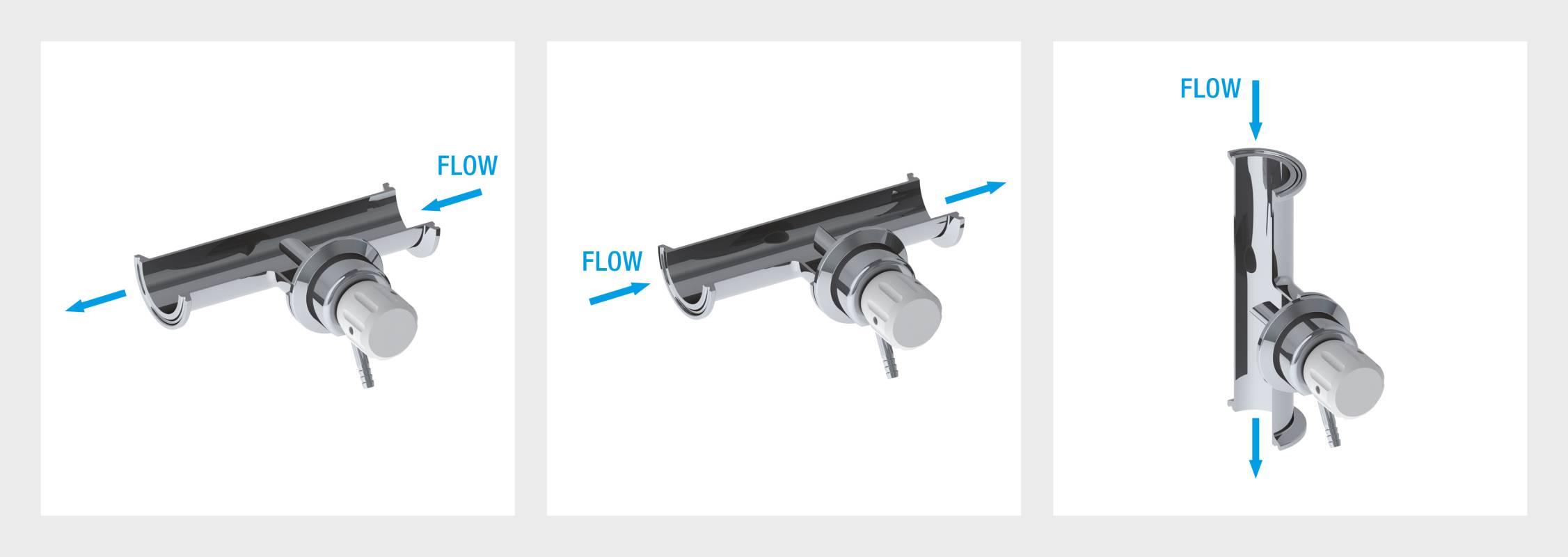

Select L (Left) or R (Right) or UP (Up) design. Codes showed on this catalog are for “right to left” (R) flow. Change last letter on the code tab to order valves with correct flow.

ImportantNotes

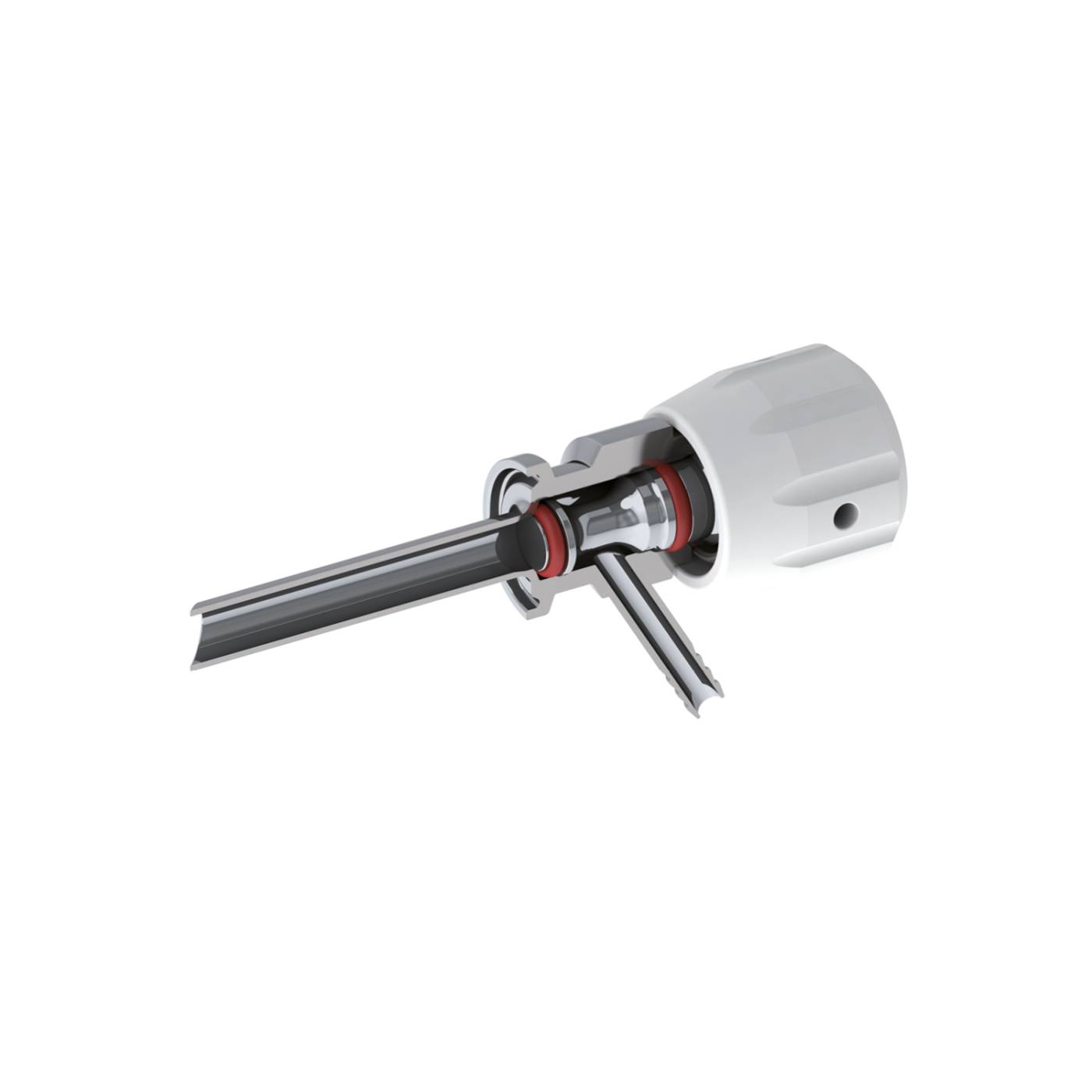

ART. 058/A 1 HOSE BARB OUTLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Check correct flow direction during assembly
Horizontal installation recommended

Select L (Left) or R (Right) or UP (Up) design. Codes showed on this catalog are for “right to left” (R) flow. Change last letter on the code tab to order valves with correct flow.

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø ALL maxValve MaterialO-Rings MaterialCode
25,0035,0080,001.4404FPM/FKM058A6TC25VR
EPDM058A6TC25EPR
SILICONE FDA058A6TC25SIFR
SILICONE USP 121058A6TC25SI121R
34,0035,0080,001.4404FPM/FKM058A6TC34VR
EPDM058A6TC34EPR
SILICONE FDA058A6TC34SIFR
SILICONE USP 121058A6TC34SI121R
50,5041,0080,001.4404FPM/FKM058A6TC50VR
EPDM058A6TC50EPR
SILICONE FDA058A6TC50SIFR
SILICONE USP 121058A6TC50SI121R

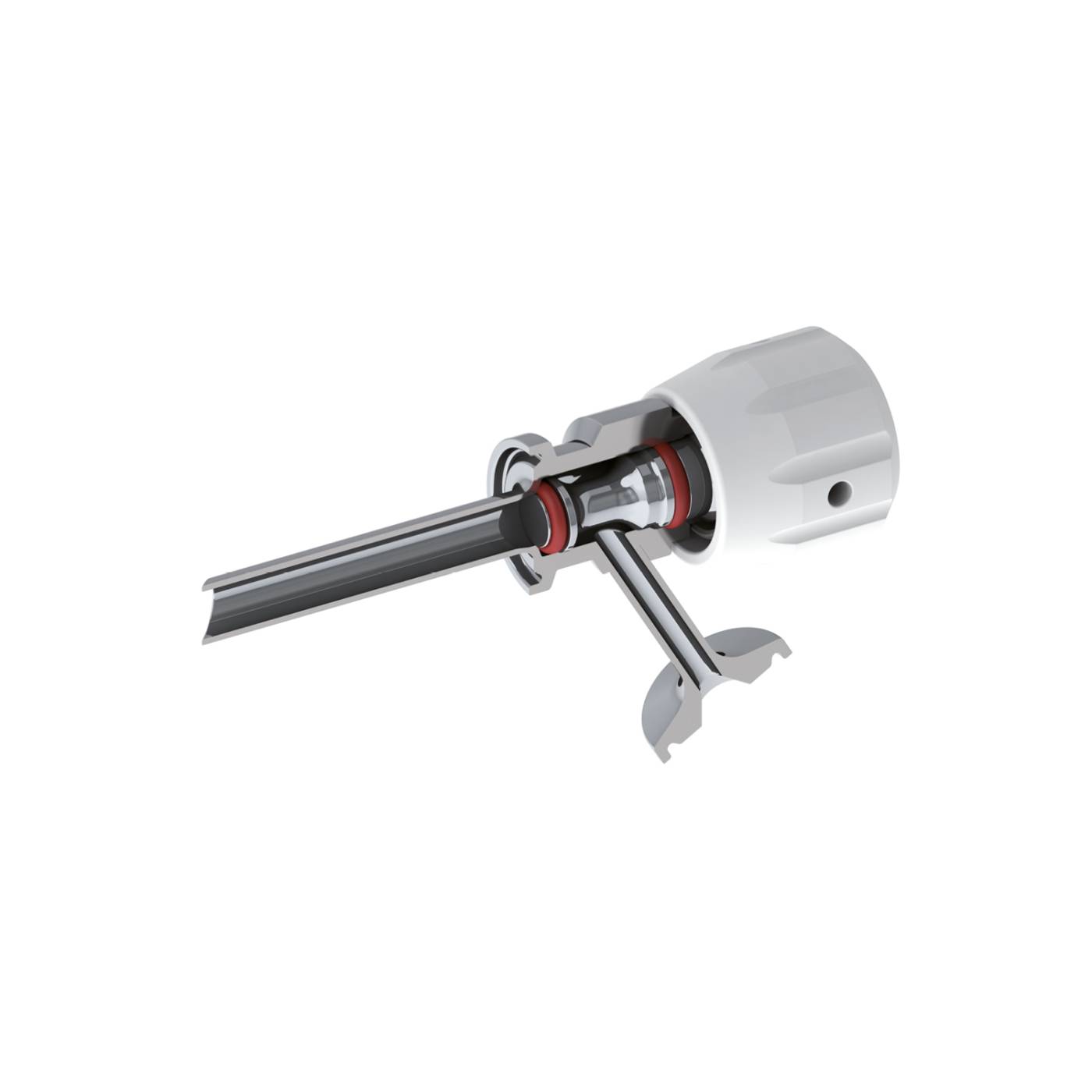

ART. 058/B 1 TRI-CLAMP OUTLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Check correct flow direction during assembly
Horizontal installation recommended

Select L (Left) or R (Right) or UP (Up) design. Codes showed on this catalog are for “right to left” (R) flow. Change last letter on the code tab to order valves with correct flow.

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø ALL maxValve MaterialO-Rings MaterialCode
25,0046,0080,001.4404FPM/FKM058B6TC25VR
EPDM058B6TC25EPR
SILICONE FDA058B6TC25SIFR
SILICONE USP 121058B6TC25SI121R
34,0046,0080,001.4404FPM/FKM058B6TC34VR
EPDM058B6TC34EPR
SILICONE FDA058B6TC34SIFR
SILICONE USP 121058B6TC34SI121R
50,5052,0080,001.4404FPM/FKM058B6TC50VR
EPDM058B6TC50EPR
SILICONE FDA058B6TC50SIFR
SILICONE USP 121058B6TC50SI121R

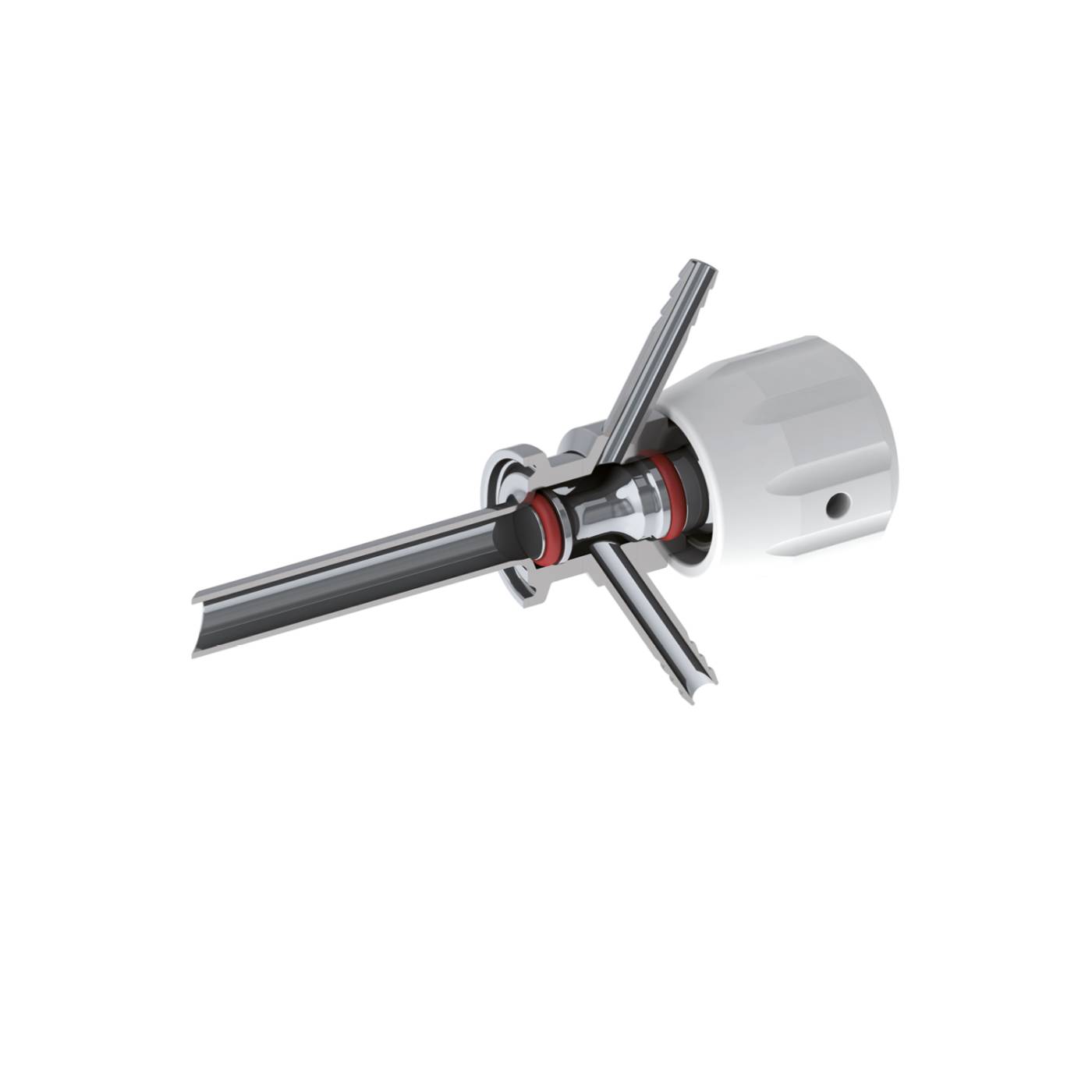

ART. 058/C 1 HOSE BARB OUTLET + 1 CIP HOSE BARB INLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Check correct flow direction during assembly
Horizontal installation recommended

Select L (Left) or R (Right) or UP (Up) design. Codes showed on this catalog are for “right to left” (R) flow. Change last letter on the code tab to order valves with correct flow.

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø ALL maxValve MaterialO-Rings MaterialCode
25,0035,0080,001.4404FPM/FKM058C6TC25VR
EPDM058C6TC25EPR
SILICONE FDA058C6TC25SIFR
SILICONE USP 121058C6TC25SI121R
34,0035,0080,001.4404FPM/FKM058C6TC34VR
EPDM058C6TC34EPR
SILICONE FDA058C6TC34SIFR
SILICONE USP 121058C6TC34SI121R
50,5041,0080,001.4404FPM/FKM058C6TC50VR
EPDM058C6TC50EPR
SILICONE FDA058C6TC50SIFR
SILICONE USP 121058C6TC50SI121R

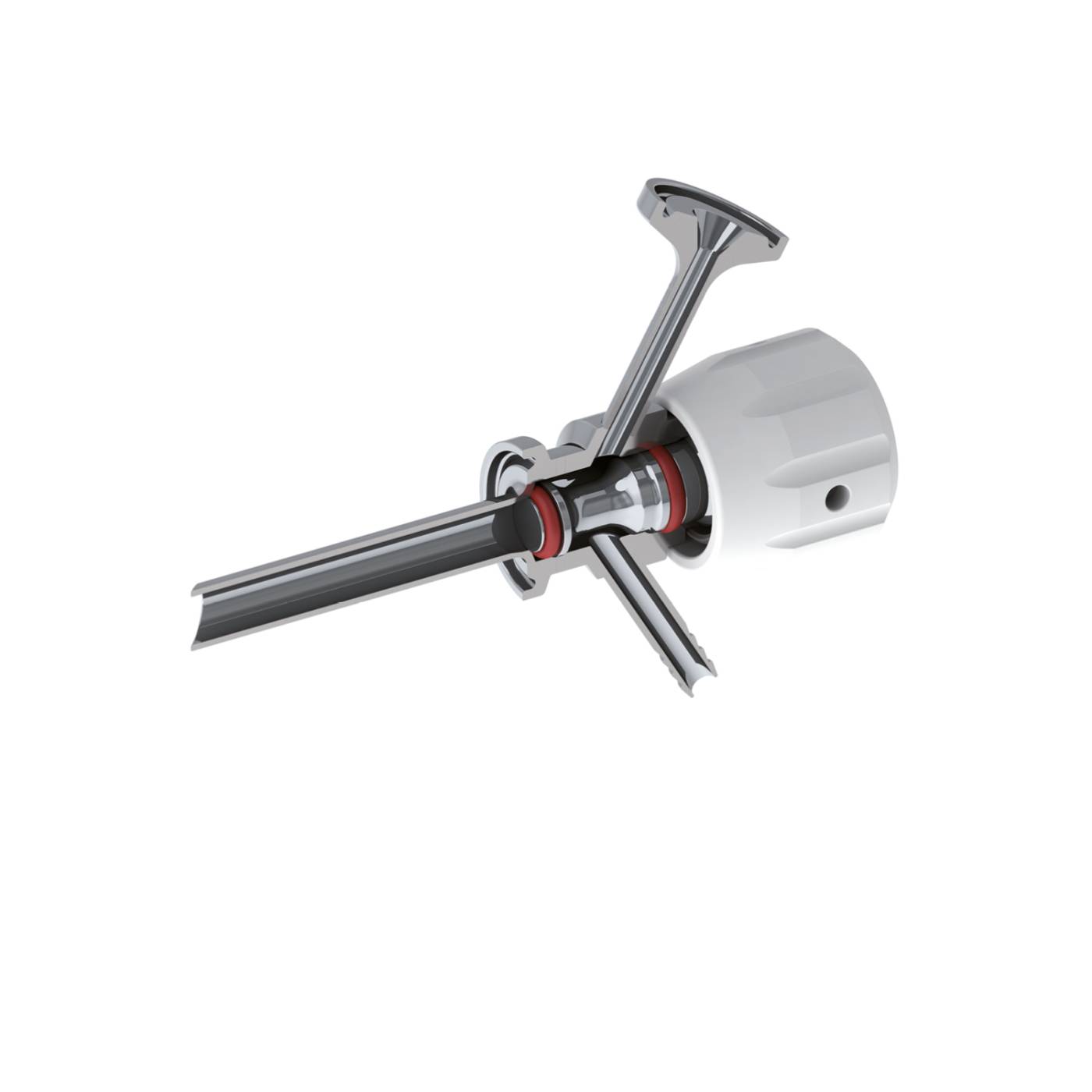

ART. 058/D 1 HOSE BARB OUTLET + 1 CIP TRI-CLAMP INLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Check correct flow direction during assembly
Horizontal installation recommended

Select L (Left) or R (Right) or UP (Up) design. Codes showed on this catalog are for “right to left” (R) flow. Change last letter on the code tab to order valves with correct flow.

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø ALL2L maxValve MaterialO-Rings MaterialCode
25,0035,0046,0080,001.4404FPM/FKM058D6TC25VR
EPDM058D6TC25EPR
SILICONE FDA058D6TC25SIFR
SILICONE USP 121058D6TC25SI121R
34,0035,0046,0080,001.4404FPM/FKM058D6TC34VR
EPDM058D6TC34EPR
SILICONE FDA058D6TC34SIFR
SILICONE USP 121058D6TC34SI121R
50,5041,0052,0080,001.4404FPM/FKM058D6TC50VR
EPDM058D6TC50EPR
SILICONE FDA058D6TC50SIFR
SILICONE USP 121058D6TC50SI121R

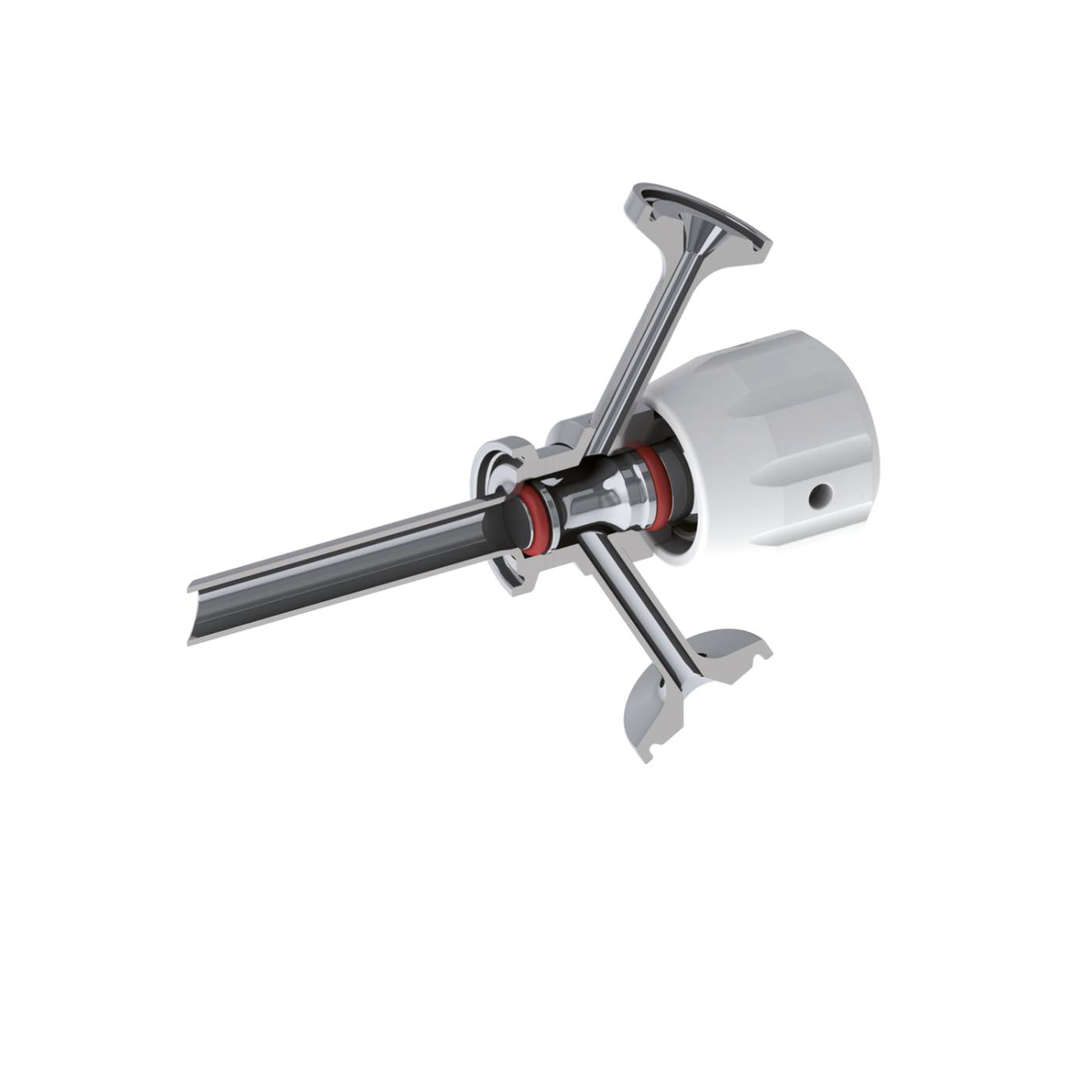

ART. 058/E 1 TRI-CLAMP OUTLET + 1 CIP TRI-CLAMP INLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Check correct flow direction during assembly
Horizontal installation recommended

Select L (Left) or R (Right) or UP (Up) design. Codes showed on this catalog are for “right to left” (R) flow. Change last letter on the code tab to order valves with correct flow.

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø ALL2L maxValve MaterialO-Rings MaterialCode
25,0035,0046,0080,001.4404FPM/FKM058E6TC25VR
EPDM058E6TC25EPR
SILICONE FDA058E6TC25SIFR
SILICONE USP 121058E6TC25SI121R
34,0035,0046,0080,001.4404FPM/FKM058E6TC34VR
EPDM058E6TC34EPR
SILICONE FDA058E6TC34SIFR
SILICONE USP 121058E6TC34SI121R
50,5041,0052,0080,001.4404FPM/FKM058E6TC50VR
EPDM058E6TC50EPR
SILICONE FDA058E6TC50SIFR
SILICONE USP 121058E6TC50SI121R

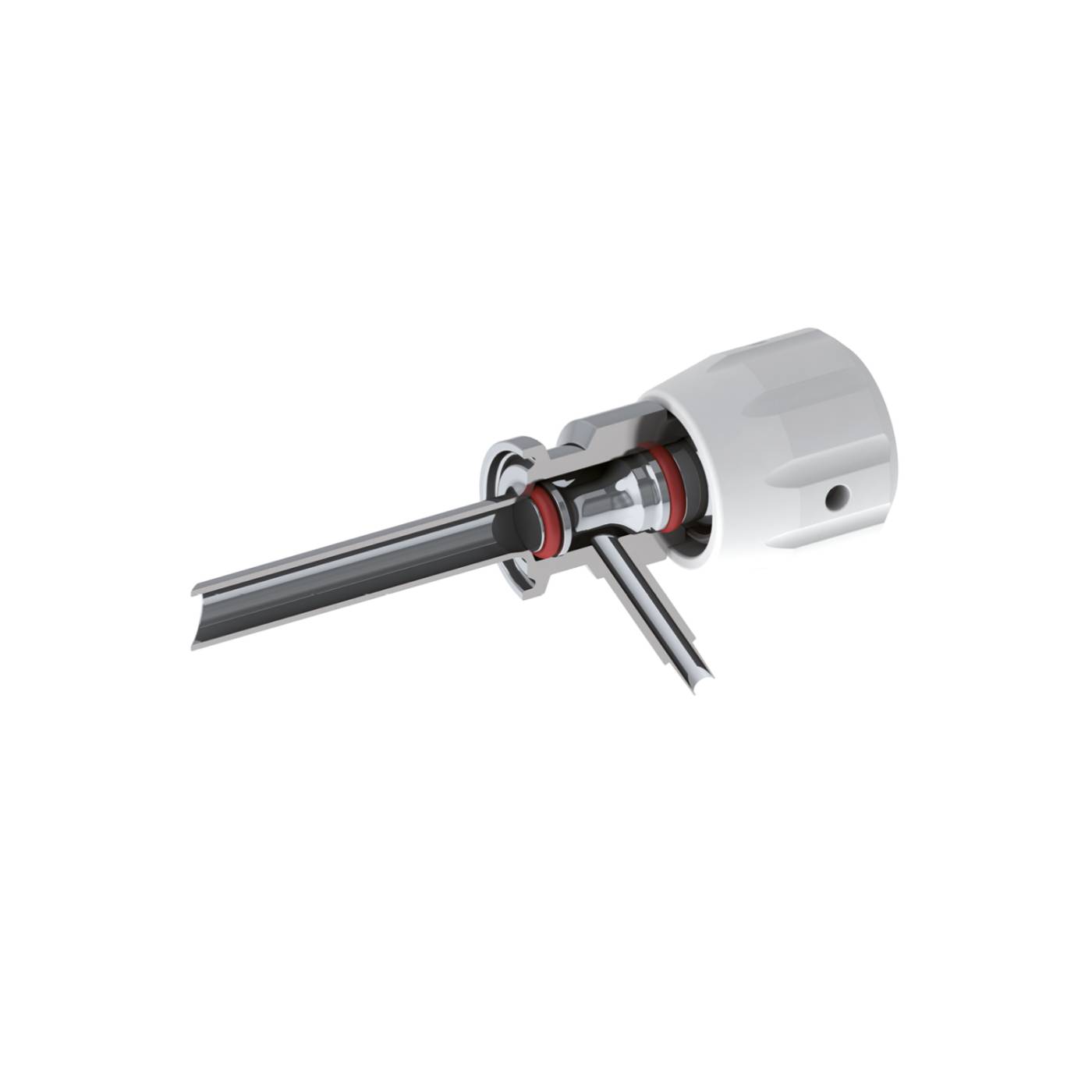

ART. 058/G 1 LUER OUTLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Check correct flow direction during assembly
Horizontal installation recommended

Select L (Left) or R (Right) or UP (Up) design. Codes showed on this catalog are for “right to left” (R) flow. Change last letter on the code tab to order valves with correct flow.

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø ALL maxValve MaterialO-Rings MaterialCode
25,0035,0080,001.4404FPM/FKM058G6TC25VR
EPDM058G6TC25EPR
SILICONE FDA058G6TC25SIFR
SILICONE USP 121058G6TC25SI121R
34,0035,0080,001.4404FPM/FKM058G6TC34VR
EPDM058G6TC34EPR
SILICONE FDA058G6TC34SIFR
SILICONE USP 121058G6TC34SI121R
50,5041,0080,001.4404FPM/FKM058G6TC50VR
EPDM058G6TC50EPR
SILICONE FDA058G6TC50SIFR
SILICONE USP 121058G6TC50SI121R

ART. 058/H 1 LUER OUTLET + 1 CIP TRI-CLAMP INLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
Installation: Check correct flow direction during assembly
Horizontal installation recommended

Select L (Left) or R (Right) or UP (Up) design. Codes showed on this catalog are for “right to left” (R) flow. Change last letter on the code tab to order valves with correct flow.

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
DIN 32676 Tri-Clamp
ISO 1127 Tri-Clamp
Ø ALL2L maxValve MaterialO-Rings MaterialCode
25,0035,0046,0080,001.4404FPM/FKM058H6TC25VR
EPDM058H6TC25EPR
SILICONE FDA058H6TC25SIFR
SILICONE USP 121058H6TC25SI121R
34,0035,0046,0080,001.4404FPM/FKM058H6TC34VR
EPDM058H6TC34EPR
SILICONE FDA058H6TC34SIFR
SILICONE USP 121058H6TC34SI121R
50,5041,0052,0080,001.4404FPM/FKM058H6TC50VR
EPDM058H6TC50EPR
SILICONE FDA058H6TC50SIFR
SILICONE USP 121058H6TC50SI121R
