Aseptic Sampling Valves

ART. 046
Compact Aseptic
Sampling Valves

Technical sheet
046_rattiinox
Technical sheet

Characteristics: Designed for sterile sampling of liquids on pharmaceutical products. Radial diaphragm with extremely compact design. Diaphragm closes at the inlet seat of the product port connection, eliminating the dead leg. Engineered for Aseptic and High Purity Applications. PTFE or Silicone and AISI 316 L without asymptotic seals. All versions are fully autoclavable. Removable handle available for valves equipped with SIP connection.

Documentation: Laser marking for traceability and validation processes. Material 3.1 certificates, FDA or USP, internal surface finishing check as standard.

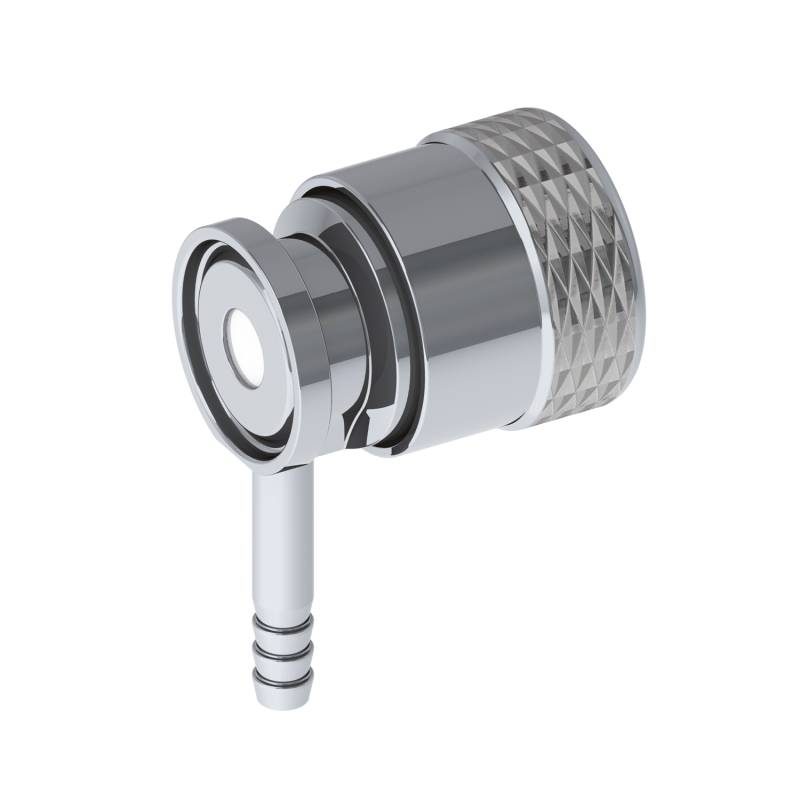

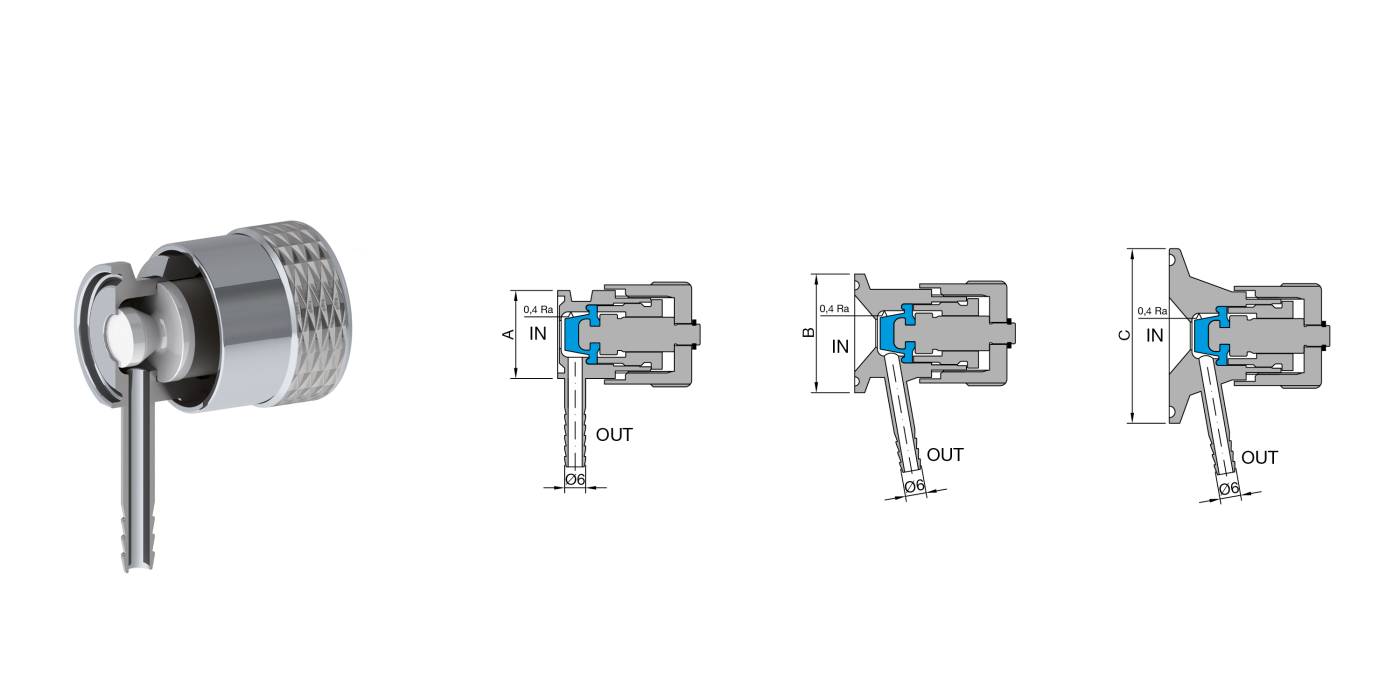

ART. 046/A 1 HOSE BARB OUTLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 8 bar (120 psi) and 150°C (300°F)
Gaskets: FDA approved SILICONE or USP CLASS VI - 121° PTFE
Installation: Horizontal installation recommended

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
SizeØ AØ CValve MaterialDiaphragm MaterialCode
1/2” - 3/4” *25,00 1.4404SILICONE FDA046A60050SIF
PTFE - USP 121046A60050PT121
1” 50,501.4404SILICONE FDA046A60100SIF
PTFE - USP 121046A60100PT121
1.1/2” 50,501.4404SILICONE FDA046A60150SIF
PTFE - USP 121046A60150PT121

* Special clamp included



DIN 32676 Tri-Clamp
SizeØ AØ CValve MaterialDiaphragm MaterialCode
DN 1034,00 1.4404SILICONE FDA046A6D010SIF
PTFE - USP 121046A6D010PT121
DN 1534,00 1.4404SILICONE FDA046A6D015SIF
PTFE - USP 121046A6D015PT121
DN 2034,00 1.4404SILICONE FDA046A6D020SIF
PTFE - USP 121046A6D020PT121
DN 25 50,501.4404SILICONE FDA046A6D025SIF
PTFE - USP 121046A6D025PT121
DN 32 50,501.4404SILICONE FDA046A6D032SIF
PTFE - USP 121046A6D032PT121
DN 40 50,501.4404SILICONE FDA046A6D040SIF
PTFE - USP 121046A6D040PT121



ISO 1127 Tri-Clamp
SizeØ AØ CValve MaterialDiaphragm MaterialCode
DN 834,00 1.4404SILICONE FDA046A6I008SIF
PTFE - USP 121046A6I008PT121
DN 1034,00 1.4404SILICONE FDA046A6I010SIF
PTFE - USP 121046A6I010PT121
DN 1534,00 1.4404SILICONE FDA046A6I015SIF
PTFE - USP 121046A6I015PT121
DN 20 50,501.4404SILICONE FDA046A6I020SIF
PTFE - USP 121046A6I020PT121
DN 25 50,501.4404SILICONE FDA046A6I025SIF
PTFE - USP 121046A6I025PT121
DN 32 50,501.4404SILICONE FDA046A6I032SIF
PTFE - USP 121046A6I032PT121

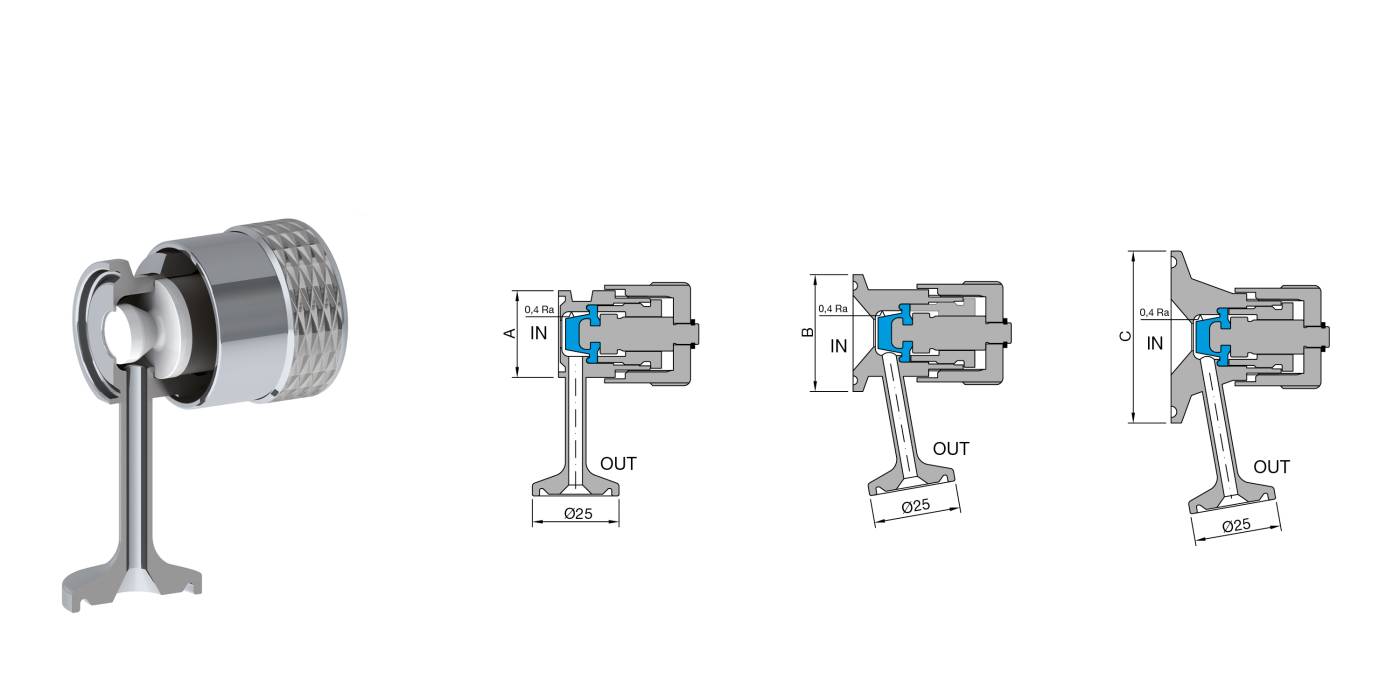

ART. 046/B 1 TRI-CLAMP OUTLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 8 bar (120 psi) and 150°C (300°F)
Gaskets: FDA approved SILICONE or USP CLASS VI - 121° PTFE
Installation: Horizontal installation recommended

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
SizeØ AØ CValve MaterialDiaphragm MaterialCode
1/2” - 3/4” *25,00 1.4404SILICONE FDA046B60050SIF
PTFE - USP 121046B60050PT121
1” 50,501.4404SILICONE FDA046B60100SIF
PTFE - USP 121046B60100PT121
1.1/2” 50,501.4404SILICONE FDA046B60150SIF
PTFE - USP 121046B60150PT121

* Special clamp included



DIN 32676 Tri-Clamp
SizeØ AØ CValve MaterialDiaphragm MaterialCode
DN 1034,00 1.4404SILICONE FDA046B6D010SIF
PTFE - USP 121046B6D010PT121
DN 1534,00 1.4404SILICONE FDA046B6D015SIF
PTFE - USP 121046B6D015PT121
DN 2034,00 1.4404SILICONE FDA046B6D020SIF
PTFE - USP 121046B6D020PT121
DN 25 50,501.4404SILICONE FDA046B6D025SIF
PTFE - USP 121046B6D025PT121
DN 32 50,501.4404SILICONE FDA046B6D032SIF
PTFE - USP 121046B6D032PT121
DN 40 50,501.4404SILICONE FDA046B6D040SIF
PTFE - USP 121046B6D040PT121



ISO 1127 Tri-Clamp
SizeØ AØ CValve MaterialDiaphragm MaterialCode
DN 834,00 1.4404SILICONE FDA046B6I008SIF
PTFE - USP 121046B6I008PT121
DN 1034,00 1.4404SILICONE FDA046B6I010SIF
PTFE - USP 121046B6I010PT121
DN 1534,00 1.4404SILICONE FDA046B6I015SIF
PTFE - USP 121046B6I015PT121
DN 20 50,501.4404SILICONE FDA046B6I020SIF
PTFE- USP 121046B6I020PT121
DN 25 50,501.4404SILICONE FDA046B6I025SIF
PTFE - USP 121046B6I025PT121
DN 32 50,501.4404SILICONE FDA046B6I032SIF
PTFE - USP 121046B6I032PT121

ART. 046/C 1 HOSE BARB OUTLET + 1 CIP HOSE BARB INLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 8 bar (120 psi) and 150°C (300°F)
Gaskets: FDA approved SILICONE or USP CLASS VI - 121° PTFE
Installation: Horizontal installation recommended

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
SizeØ AØ CValve MaterialDiaphragm MaterialCode
1/2” - 3/4” *25,00 1.4404SILICONE FDA046C60050SIF
PTFE - USP 121046C60050PT121
1” 50,501.4404SILICONE FDA046C60100SIF
PTFE - USP 121046C60100PT121
1.1/2” 50,501.4404SILICONE FDA046C60150SIF
PTFE - USP 121046C60150PT121

* Special clamp included



DIN 32676 Tri-Clamp
SizeØ BØ CValve MaterialDiaphragm MaterialCode
DN 1034,00 1.4404SILICONE FDA046C6D010SIF
PTFE - USP 121046C6D010PT121
DN 1534,00 1.4404SILICONE FDA046C6D015SIF
PTFE - USP 121046C6D015PT121
DN 2034,00 1.4404SILICONE FDA046C6D020SIF
PTFE - USP 121046C6D020PT121
DN 25 50,501.4404SILICONE FDA046C6D025SIF
PTFE - USP 121046C6D025PT121
DN 32 50,501.4404SILICONE FDA046C6D032SIF
PTFE - USP 121046C6D032PT121
DN 40 50,501.4404SILICONE FDA046C6D040SIF
PTFE - USP 121046C6D040PT121



ISO 1127 Tri-Clamp
SizeØ BØ CValve MaterialDiaphragm MaterialCode
DN 834,00 1.4404SILICONE FDA046C6I008SIF
PTFE - USP 121046C6I008PT121
DN 1034,00 1.4404SILICONE FDA046C6I010SIF
PTFE - USP 121046C6I010PT121
DN 1534,00 1.4404SILICONE FDA046C6I015SIF
PTFE - USP 121046C6I015PT121
DN 20 50,501.4404SILICONE FDA046C6I020SIF
PTFE - USP 121046C6I020PT121
DN 25 50,501.4404SILICONE FDA046C6I025SIF
PTFE - USP 121046C6I025PT121
DN 32 50,501.4404SILICONE FDA046C6I032SIF
PTFE - USP 121046C6I032PT121

ART. 046/D 1 HOSE BARB OUTLET + 1 CIP TRI-CLAMP INLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 8 bar (120 psi) and 150°C (300°F)
Gaskets: FDA approved SILICONE or USP CLASS VI - 121° PTFE
Installation: Horizontal installation recommended

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
SizeØ AØ CValve MaterialDiaphragm MaterialCode
1/2” - 3/4” *25,00 1.4404SILICONE FDA046D60050SIF
PTFE - USP 121046D60050PT121
1” 50,501.4404SILICONE FDA046D60100SIF
PTFE - USP 121046D60100PT121
1.1/2” 50,501.4404SILICONE FDA046D60150SIF
PTFE - USP 121046D60150PT121

* Special clamp included



DIN 32676 Tri-Clamp
SizeØ BØ CValve MaterialDiaphragm MaterialCode
DN 1034,00 1.4404SILICONE FDA046D6D010SIF
PTFE - USP 121046D6D010PT121
DN 1534,00 1.4404SILICONE FDA046D6D015SIF
PTFE - USP 121046D6D015PT121
DN 2034,00 1.4404SILICONE FDA046D6D020SIF
PTFE - USP 121046D6D020PT121
DN 25 50,501.4404SILICONE FDA046D6D025SIF
PTFE - USP 121046D6D025PT121
DN 32 50,501.4404SILICONE FDA046D6D032SIF
PTFE - USP 121046D6D032PT121
DN 40 50,501.4404SILICONE FDA046D6D040SIF
PTFE - USP 121046D6D040PT121



ISO 1127 Tri-Clamp
SizeØ BØ CValve MaterialDiaphragm MaterialCode
DN 834,00 1.4404SILICONE FDA046D6I008SIF
PTFE - USP 121046D6I008PT121
DN 1034,00 1.4404SILICONE FDA046D6I010SIF
PTFE - USP 121046D6I010PT121
DN 1534,00 1.4404SILICONE FDA046D6I015SIF
PTFE - USP 121046D6I015PT121
DN 20 50,501.4404SILICONE FDA046D6I020SIF
PTFE - USP 121046D6I020PT121
DN 25 50,501.4404SILICONE FDA046D6I025SIF
PTFE - USP 121046D6I025PT121
DN 32 50,501.4404SILICONE FDA046D6I032SIF
PTFE - USP 121046D6I032PT121

ART. 046/E 1 TRI-CLAMP OUTLET + 1 CIP TRI-CLAMP INLET

Int. finishing: Ra ≤ 0,4 µm
Ext. finishing: Ra ≤ 0,8 µm Mirror Polished
Max Working Conditions: 8 bar (120 psi) and 150°C (300°F)
Gaskets: FDA approved SILICONE or USP CLASS VI - 121° PTFE
Installation: Horizontal installation recommended

ASTM A270 Tri-Clamp - Flange design according to ASME-BPE
SizeØ AØ CValve MaterialDiaphragm MaterialCode
1” 50,501.4404SILICONE FDA046E60100SIF
PTFE - USP 121046E60100PT121
1.1/2” 50,501.4404SILICONE FDA046E60150SIF
PTFE - USP 121046E60150PT121



DIN 32676 Tri-Clamp
SizeØ BØ CValve MaterialDiaphragm MaterialCode
DN 1034,00 1.4404SILICONE FDA046E6D010SIF
PTFE - USP 121046E6D010PT121
DN 1534,00 1.4404SILICONE FDA046E6D015SIF
PTFE - USP 121046E6D015PT121
DN 2034,00 1.4404SILICONE FDA046E6D020SIF
PTFE - USP 121046E6D020PT121
DN 25 50,501.4404SILICONE FDA046E6D025SIF
PTFE - USP 121046E6D025PT121
DN 32 50,501.4404SILICONE FDA046E6D032SIF
PTFE - USP 121046E6D032PT121
DN 40 50,501.4404SILICONE FDA046E6D040SIF
PTFE - USP 121046E6D040PT121



ISO 1127 Tri-Clamp
SizeØ BØ CValve MaterialDiaphragm MaterialCode
DN 834,00 1.4404SILICONE FDA046E6I008SIF
PTFE - USP 121046E6I008PT121
DN 1034,00 1.4404SILICONE FDA046E6I010SIF
PTFE - USP 121046E6I010PT121
DN 1534,00 1.4404SILICONE FDA046E6I015SIF
PTFE - USP 121046E6I015PT121
DN 20 50,501.4404SILICONE FDA046E6I020SIF
PTFE - USP 121046E6I020PT121
DN 25 50,501.4404SILICONE FDA046E6I025SIF
PTFE - USP 121046E6I025PT121
DN 32 50,501.4404SILICONE FDA046E6I032SIF
PTFE - USP 121046E6I032PT121
