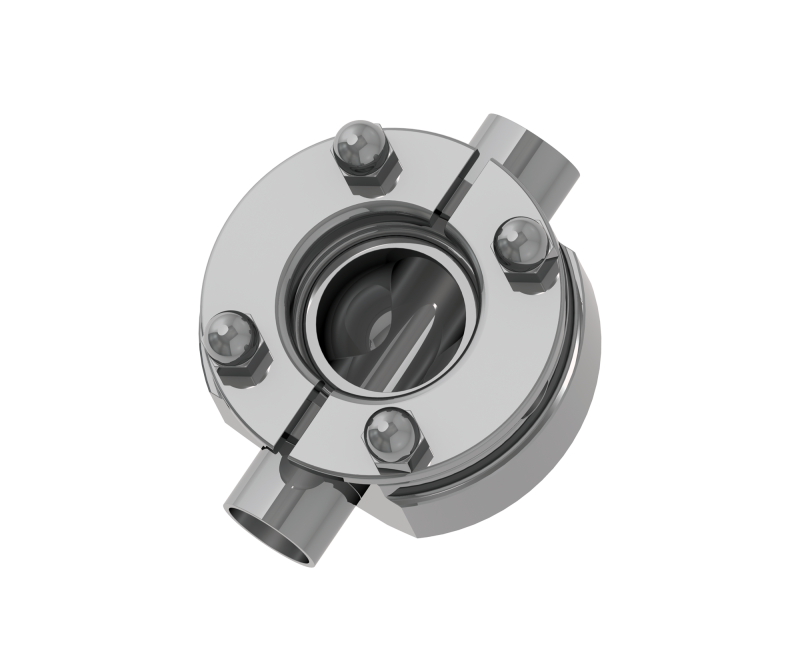

Welding Plate Material: 1.4435-BN2
Locking Ring Material: 1.4404
Bolts & Nuts: 1.4404 / 1.4301
Internal finising: 0,4 Ra
External finishing: 0,8 Ra
Option: electropolishing

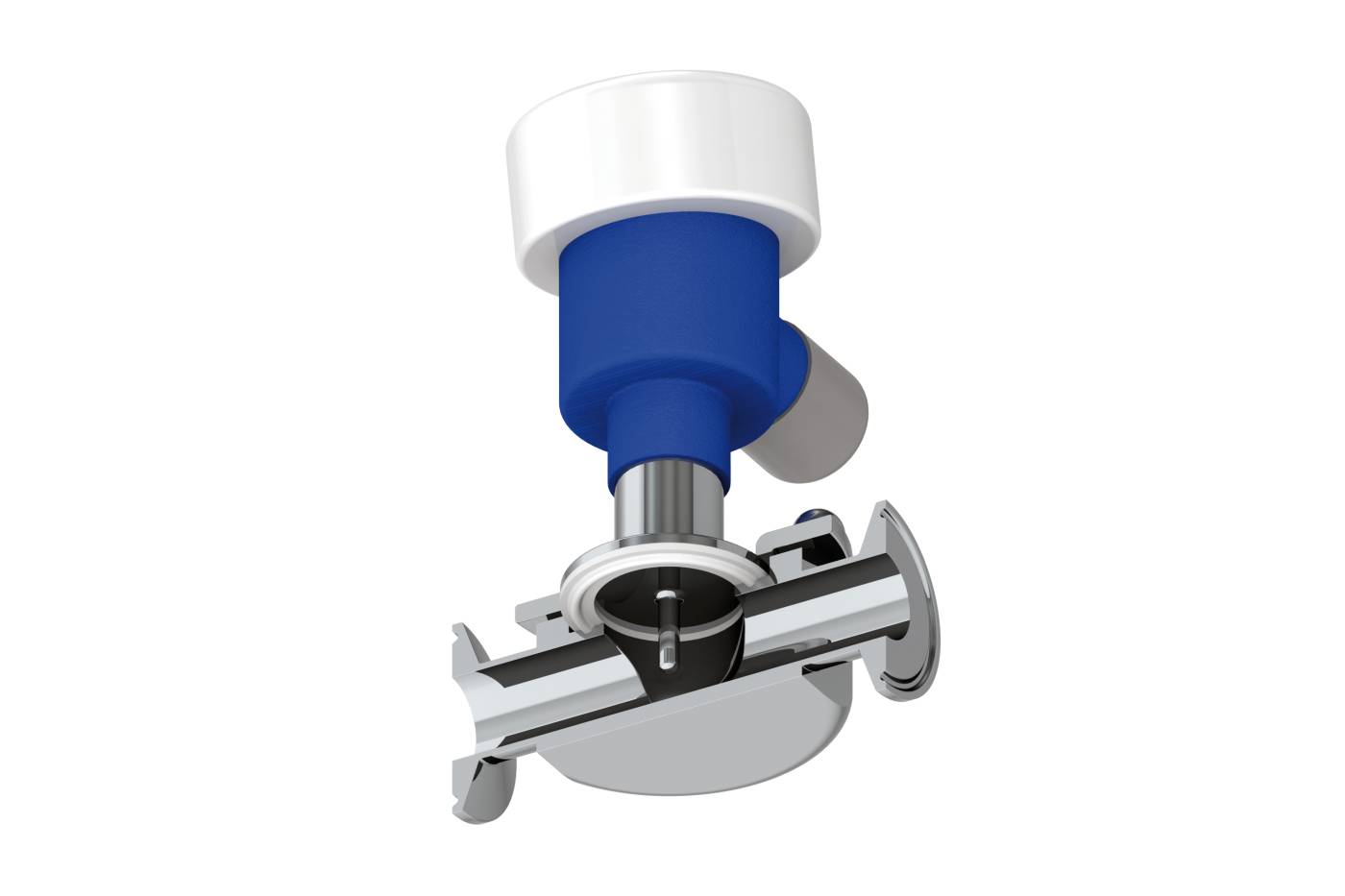

Line connections: TC or BW (Butt Weld for orbital welding). Pipe dimensions acc. to ASTM A269-A270 / ASME BPE
| TYPE | De mm (inch) | Di mm (inch) | TC mm (inch) | L mm (inch) | A mm (inch) | Y mm (inch) | CODE |
|---|---|---|---|---|---|---|---|
Butt Weld | 12,70 (0,50) | 9,40 (0,37) | 110,00 (4,33) | 19,00 (0,75) | 10,30 (0,41) | YBWM-A038-A012-00000 | |
| 19,05 (0,75) | 15,75 (0,62) | 110,00 (4,33) | 19,00 (0,75) | 10,90 (0,43) | YBWM-A038-A019-00000 | ||
| 25,40 (1,00) | 22,10 (0,87) | 110,00 (4,33) | 19,00 (0,75) | 14,00 (0,55) | YBWM-A038-A025-00000 | ||
| 38,10 (1,50) | 34,80 (1,37) | 110,00 (4,33) | 19,00 (0,75) | 24,00 (0,94) | YBWM-A038-A038-00000 | ||
| 50,80 (2,00) | 47,50 (1,87) | 110,00 (4,33) | 19,00 (0,75) | 29,00 (1,14) | YBWM-A038-A050-00000 | ||
| 63,50 (2,50) | 60,20 (2,37) | 110,00 (4,33) | 19,00 (0,75) | 35,00 (1,38) | YBWM-A038-A063-00000 | ||
| Tri-Clamp | 12,70 (0,50) | 9,40 (0,37) | 25,00 (0,98) | 116,00 (4,57) | 10,30 (0,41) | YT25-A038-A012-00000 | |
| 19,05 (0,75) | 15,75 (0,62) | 25,00 (0,98) | 116,00 (4,57) | 10,90 (0,43) | YT25-A038-A019-00000 | ||
| 25,40 (1,00) | 22,10 (0,87) | 50,50 (1,99) | 116,00 (4,57) | 14,00 (0,55) | YT50-A038-A025-00000 | ||
| 38,10 (1,50) | 34,80 (1,37) | 50,50 (1,99) | 136,00 (5,35) | 24,00 (0,94) | YT50-A038-A038-00000 | ||
| 50,80 (2,00) | 47,50 (1,87) | 64,00 (2,52) | 136,00 (5,35) | 29,00 (1,14) | YT64-A038-A050-00000 | ||
| 63,50 (2,50) | 60,20 (2,37) | 77,50 (3,05) | 136,00 (5,35) | 35,00 (1,38) | YT77-A038-A063-00000 |
