In modern pharmaceutical facilities, cleanroom production space is “Gold”. Traditional filtration setups-constructed by manually assembling a housing with multiple external valves, gaskets, and long piping runs-occupy a footprint that is no longer acceptable in high-efficiency plants. Every single connection, clamp, and seal added to a traditional system represents a potential failure point, increasing the risk of leakage and compromising overall process safety. Moreover, these bulky assemblies create extensive “dead legs” and internal dead volumes that trap expensive product and complicate cleaning.
The CAD Filter Unit solves this by integrating every critical control function directly into the main body components. By minimizing the footprint and internal volumes, we optimize the entire process:
- Drastic Footprint Reduction: Ideal for space-constrained cleanrooms and compact skid designs.
- Minimal Dead Volume: Reducing internal volumes significantly lowers product loss, which is vital for high-value biotech fluids.
- Optimized SIP/CIP: Smaller internal surfaces and the absence of “unused portions” mean faster sterilization and more efficient cleaning.
Key Advantages:

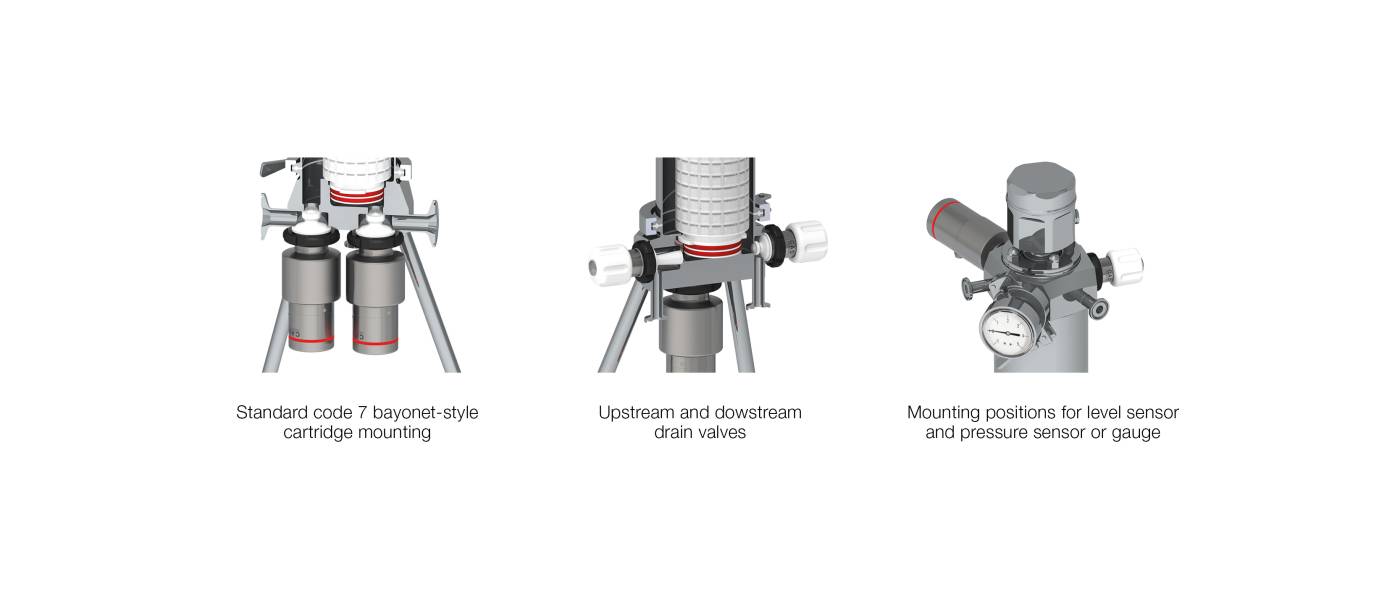

- Integrated Control: Inlet/Outlet, Drains, Vent, and Integrity Test (I.T.) valves are all built into the solid base and top.
- Zero Dead Legs: Patented design eliminates asymptotic seals and “unused portions” where contaminants can hide.
- Patented Design: Top & Base machined from solid AISI 316L (1.4435 – BN2) stainless steel.
