E 017
Diverting Valve 90
Opposite Outlet
(Up-Left)

Technical sheet

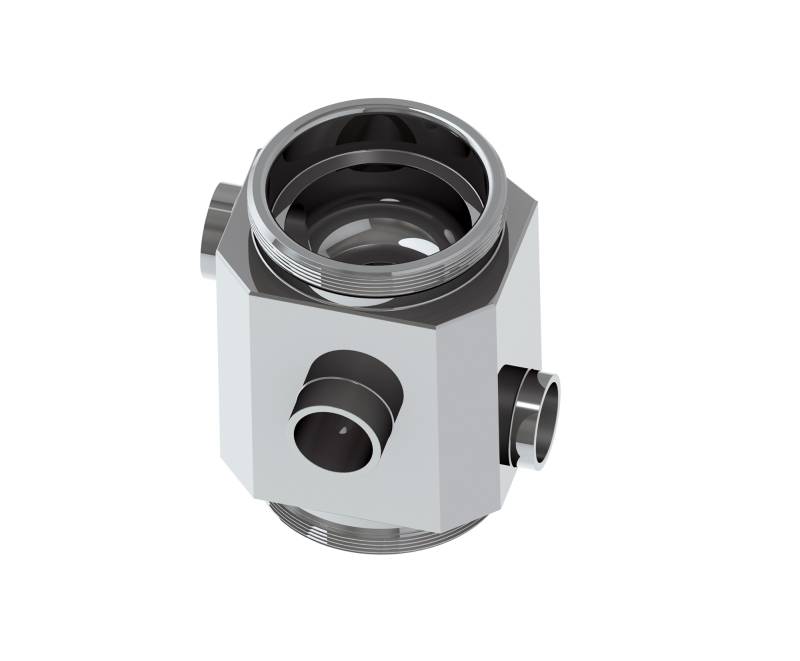

E017_CAD_rattiinox
Technical sheet

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

Diverting Valve for SAFE areas is a body offering two opposite valves with zero dead leg designed for fluids or gases deviation. Two diverting valves connected from center pipe gives “block and bleed unit” with zero dead leg. Body shape and their internal design offer a very reliable component for Aseptic Processing Application. Standard version are short butt weld ends but, on demand, may be delivered for orbital welding or with Tri-Clamp connections.

AB mm
(inch)
C mm
(inch)
D mm
(inch)
Tube* mm
(inch)
Code
M34x126,00
(1,02)
12,50
(0,49)
5,00
(0,20)
12,70x1,65
(0,50x0,065)
YDLL-SOCL-SOCL-A1212
M50x133,00
(1,30)
17,50
(0,69)
5,00
(0,20)
19,05x1,65
(0,75x0,065)
YDLL-SOCL-SOCL-A1919
M70x147,00
(1,85)
24,50
(0,97)
5,00
(0,20)
25,40x1,65
(1,00x0,065)
YDLL-SOCL-SOCL-A2525
M80x1,560,00
(2,36)
39,00
(1,54)
21,00
(0,83)
38,10x1,65
(1,50x0,065)
YDLL-SOCL-SOCL-A3838
M103x1,575,00
(2,95)
51,00
(2,01)
24,00
(0,95)
50,80x1,65
(2,00x0,065)
YDLL-SOCL-SOCL-A5050

(*) US Tube ASTM® A269/270 – ASME BPE

Assembly images

Vertical Assembly

E017_CAD-v-assembly
