B 025
Bottom Tank
Flow Through 90
Valve Body

Technical sheet

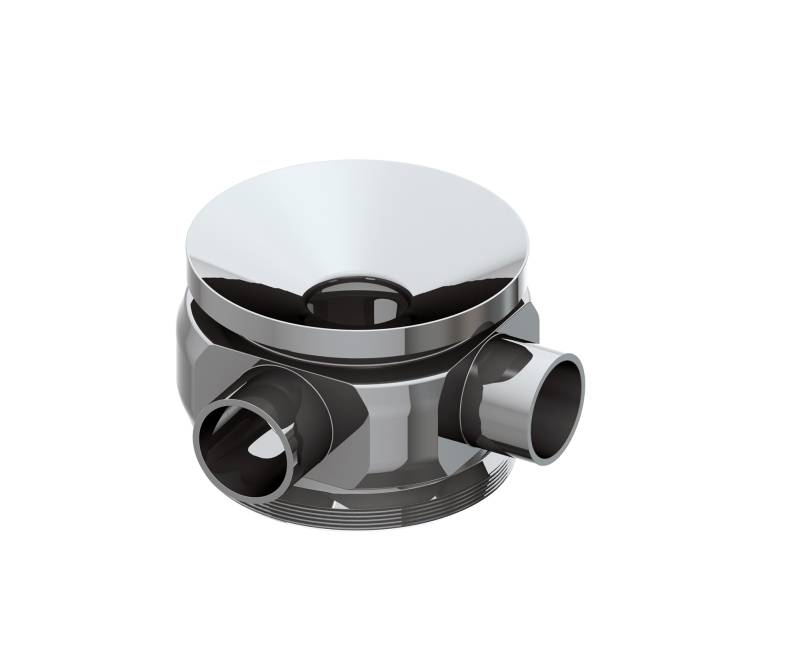

B025_CAD_rattiinox
Technical sheet

Clean and Aseptic Valves of CAD Product Line have simple and safe design, with their full drainability, without asymptotic seal and dead leg, are offering fast cleanability and sterilization practices. They are designed to fulfil stringent demands of CIP-SIP and Production Cycles on Aseptic Processing.

BYBWX - FTCL - Bottom Tank Flow Through Valves are designed to take off fluids from the tank bottom. The additional connection may be connected to a Shut Off Valve for CIP/SIP downstream vessel processes. The Body shape and their internal design offer a very reliable component for Aseptic Processing Application. Standard version are short butt weld ends but, on demand, may be delivered for orbital welding or with Tri-Clamp connections.

AB mm
(inch)
C mm
(inch)
D mm
(inch)
E mm
(inch)
F mm
(inch)
G mm
(inch)
Tube* mm
(inch)
Code
M34x140,00
(1,58)
6,50
(0,26)
13,50
(0,53)
19,50
(0,77)
30,00
(1,18)
18,50
(0,73)
12,70x1,65
(0,50x0,065)
YBWX-FTCL-0000-A1200
M50x155,00
(2,17)
7,00
(0,28)
16,00
(0,63)
22,50
(0,89)
40,00
(1,58)
22,00
(0,87)
19,05x1,65
(0,75x0,065)
YBWX-FTCL-0000-A1900
M70x175,00
(2,95)
7,00
(0,28)
17,00
(0,67)
28,00
(1,10)
50,00
(1,97)
26,50
(1,04)
25,40x1,65
(1,00x0,065)
YBWX-FTCL-0000-A2500
M80x1,585,00
(3,35)
7,00
(0,28)
19,00
(0,75)
35,50
(1,40)
60,00
(2,36)
34,00
(1,34)
38,10x1,65
(1,50x0,065)
YBWX-FTCL-0000-A3800
M103x1,5110,00
(4,33)
7,00
(0,28)
23,00
(0,91)
42,00
(1,65)
75,00
(2,95)
40,00
(1,58)
50,80x1,65
(2,00x0,065)
YBWX-FTCL-0000-A5000
M120x1,5125,00
(4,92)
10,00
(0,39)
24,00
(0,95)
50,00
(1,97)
85,00
(3,35)
48,00
(1,89)
63,50x1,65
(2,50x0,065)
YBWX-FTCL-0000-A6300
M140x1,5150,00
(5,91)
10,00
(0,39)
29,00
(1,14)
60,00
(2,36)
100,00
(3,94)
58,00
(2,28)
76,20x1,65
(3,00x0,065)
YBWX-FTCL-0000-A7600
M169x1,5180,00
(7,09)
15,00
(0,59)
30,00
(1,18)
74,50
(2,93)
115,00
(4,53)
72,50
(2,85)
101,60x2,11
(4,00x0,083)
YBWX-FTCL-0000-A0000

(*) US Tube ASTMĀ® A269/270 - ASME BPE

Assembly images

Upside-Down Assembly

B025_CAD-u-assembly
